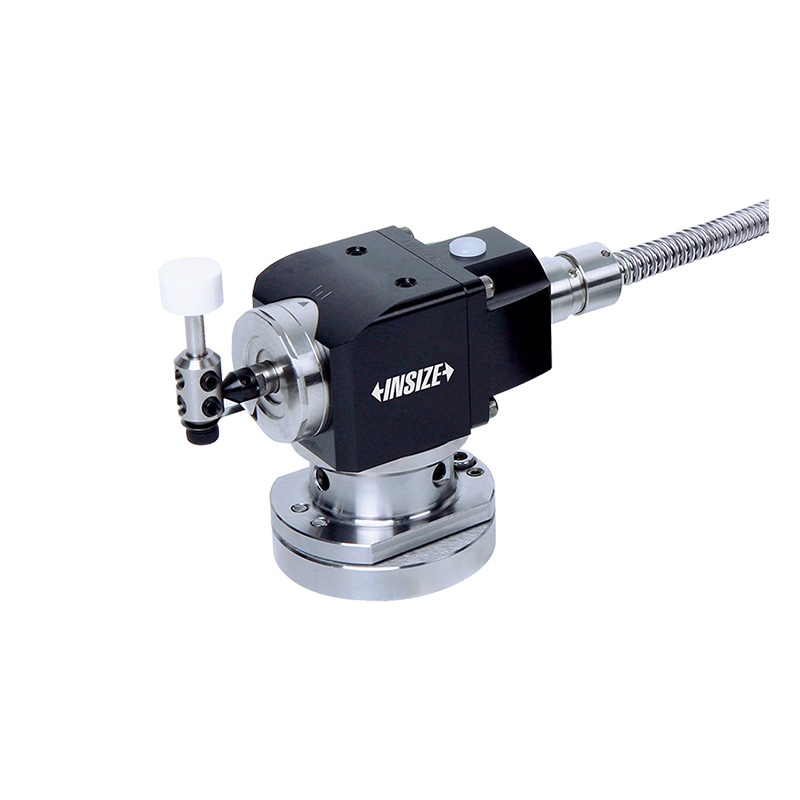

Zero Setter With Cable (Five-Side)
Code: 9412
Suitable for various machining centers, CNC boring and milling machines, etc.
Automatically set the tool length parameters before CNC machining process
Automatic detection of tool wear or damage during CNC machining
Automatic detection of tool wear or damage after CNC machining is completed
The working surface adopts ceramic material and chamfering process, which can greatly improve the service life
The plug, cable part and output signal of the host are protected, so that the zero setter can work in the splash environment for a long time
Signal transmission through the cable, the reverse connection of the power line can change the state of the signal output
The working status is displayed by the indicator light
Supplied with automatic zero setter software package
| Code | Transmission method | Trigger direction | Axial reset force | Repeated trigger accuracy | Hardness of the zero setter | Dust/waterproof |
|---|---|---|---|---|---|---|
| 9412 | with cable | ±X, ±Y, +Z | 3.4N-3.6N | ≤1μm | HM8.5 | IP68 |
