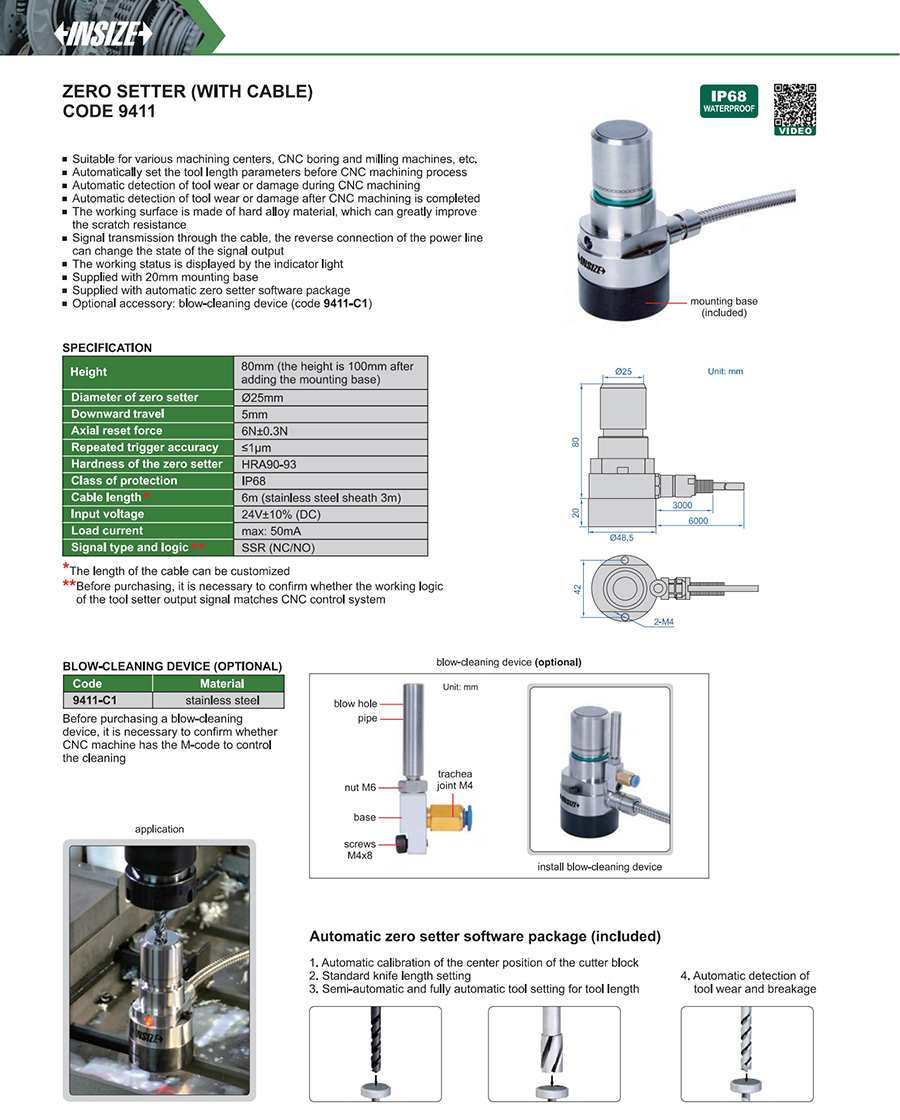

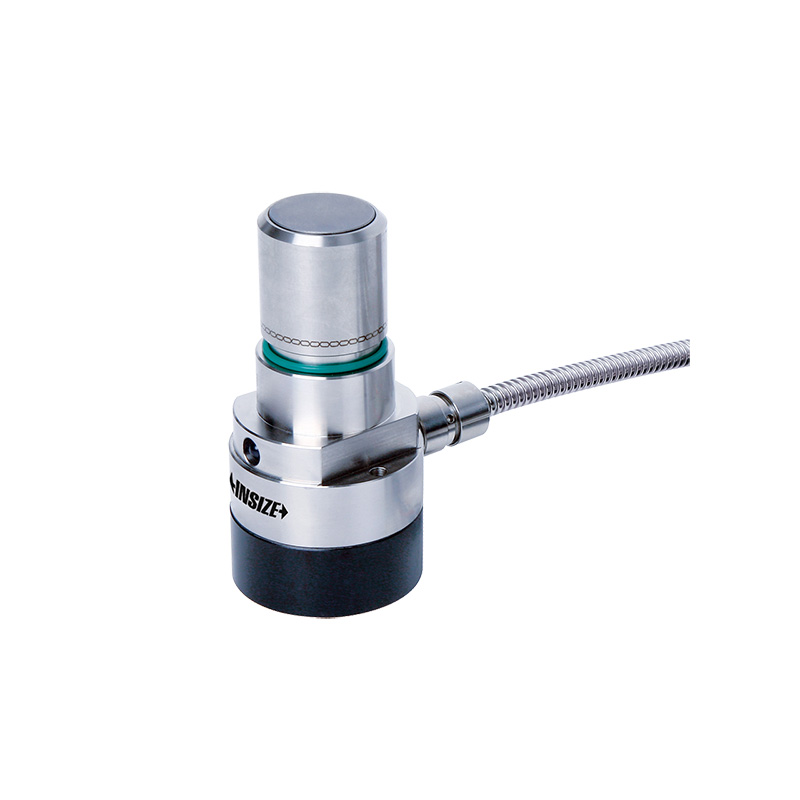

Zero Setter (With Cable)
Code: 9411
Suitable for various machining centers, CNC boring and milling machines, etc.
Automatically set the tool length parameters before CNC machining process
Automatic detection of tool wear or damage during CNC machining
Automatic detection of tool wear or damage after CNC machining is completed
The working surface is made of hard alloy material, which can greatly improve the scratch resistance
Signal transmission through the cable, the reverse connection of the power line can change the state of the signal output
The working status is displayed by the indicator light
Supplied with 20mm mounting base
Supplied with automatic zero setter software package
| Code | Transmission method | Trigger direction | Axial reset force | Repeated trigger accuracy | Hardness of the zero setter | Dust/waterproof |
|---|---|---|---|---|---|---|
| 9411 | with cable | +Z | 6N±0.3N | ≤1μm | HRA90-93 | IP68 |
