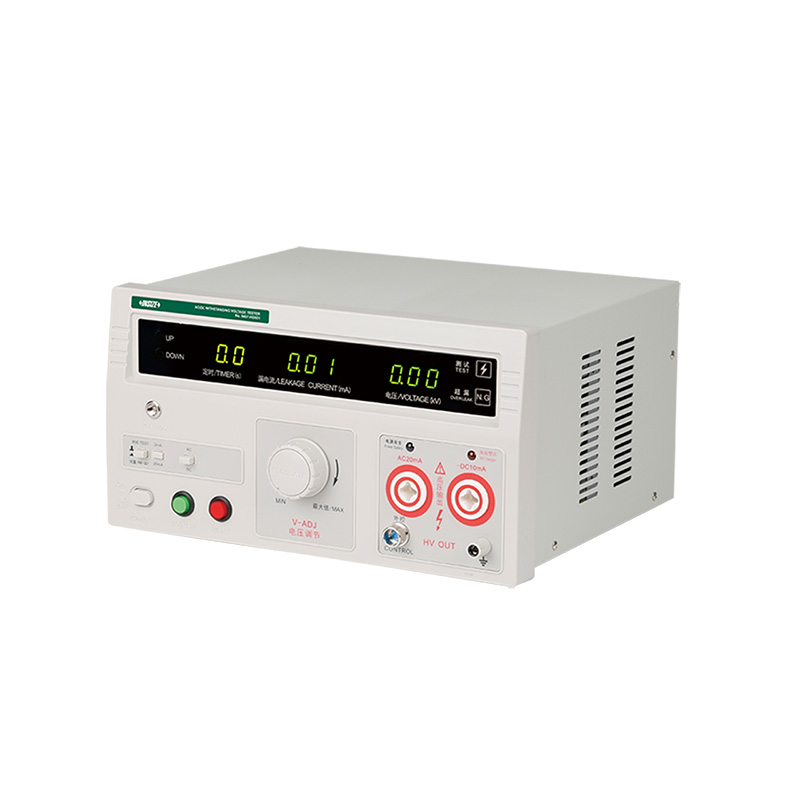

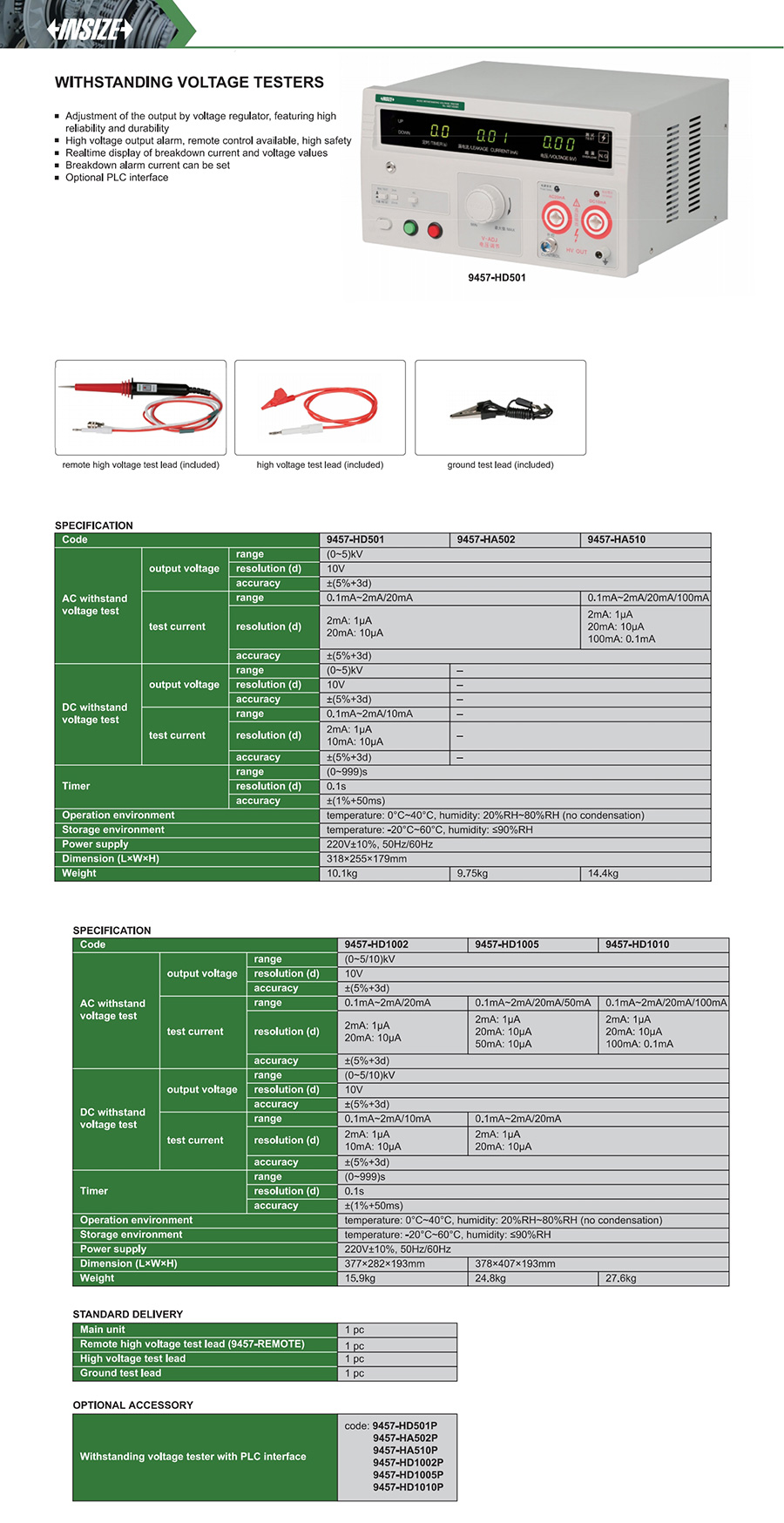

Withstanding Voltage Testers
Code: 9457
Adjustment of the output by voltage regulator, featuring high reliability and durability
High voltage output alarm, remote control available, high safety
Realtime display of breakdown current and voltage values
Breakdown alarm current can be set
Optional PLC interface
| Code | AC Withstand Voltage | AC Leakage Current | DC Withstand Voltage | DC Leakage Current |
|---|---|---|---|---|
| 9457-HD501 | 5kV | 2mA/20mA | 5kV | 2mA/10mA |
| 9457-HA502 | 5kV | 2mA/20mA | no | no |
| 9457-HA510 | 5kV | 2mA/20mA/100mA | no | no |
| 9457-HD1002 | 5/10kV | 2mA/20mA | 5/10kV | 2mA/10mA |
| 9457-HD1005 | 5/10kV | 2mA/20mA/50mA | 5/10kV | 2mA/20mA |
| 9457-HD1010 | 5/10kV | 2mA/20mA/100mA | 5/10kV | 2mA/20mA |
