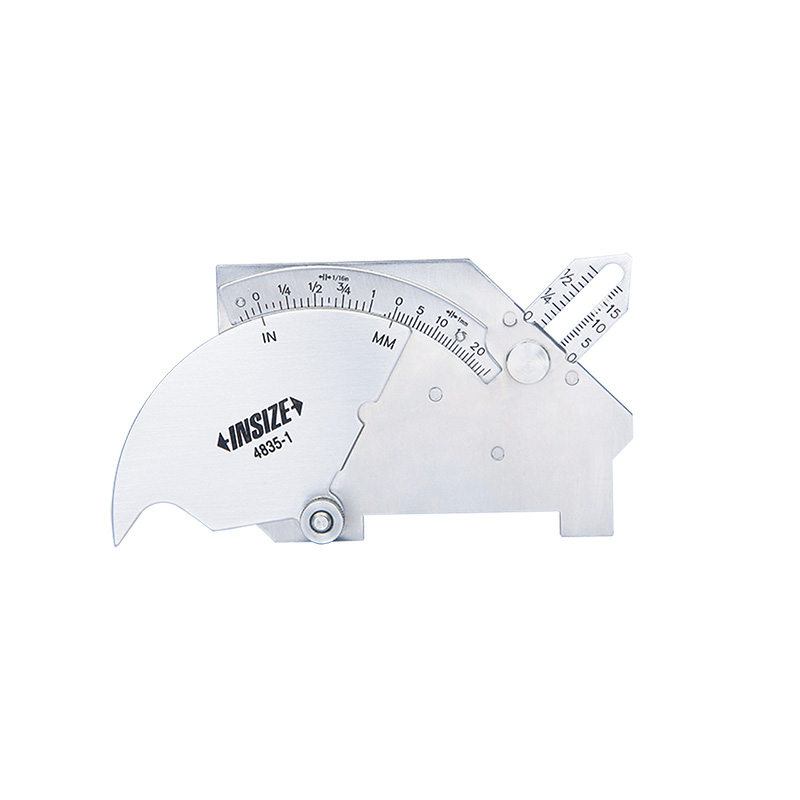

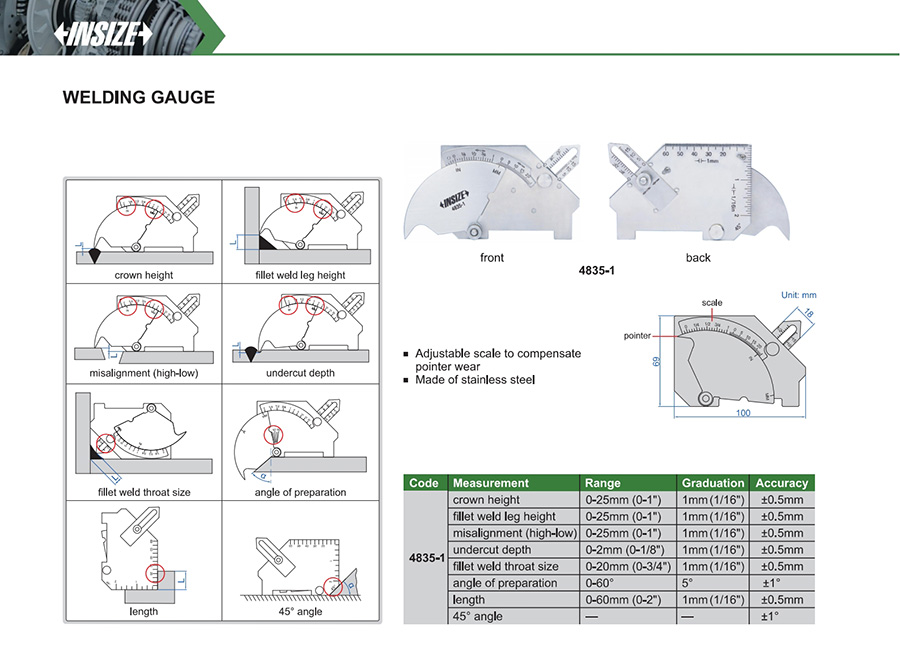

Welding Gauge
Code: 4835
Adjustable scale to compensate pointer wear
Made of stainless stee
| Code | Range | Accuracy | Graduation | Measurement |
|---|---|---|---|---|
| 4835-1 | 0-25mm (0-1") | ±0.5mm | 1mm (1/16") | crown height |
| 4835-1 | 0-25mm (0-1") | ±0.5mm | 1mm (1/16") | fillet weld leg height |
| 4835-1 | 0-25mm (0-1") | ±0.5mm | 1mm (1/16") | misalignment (high-low) |
| 4835-1 | 0-2mm (0-1/8") | ±0.5mm | 1mm (1/16") | undercut depth |
| 4835-1 | 0-20mm (0-3/4") | ±0.5mm | 1mm (1/16") | fillet weld throat size |
| 4835-1 | 0-60° | ±1° | 5° | angle of preparation |
| 4835-1 | 0-60mm (0-2") | ±0.5mm | 1mm (1/16") | length |
| 4835-1 | — | ±1° | — | 45° angle |
