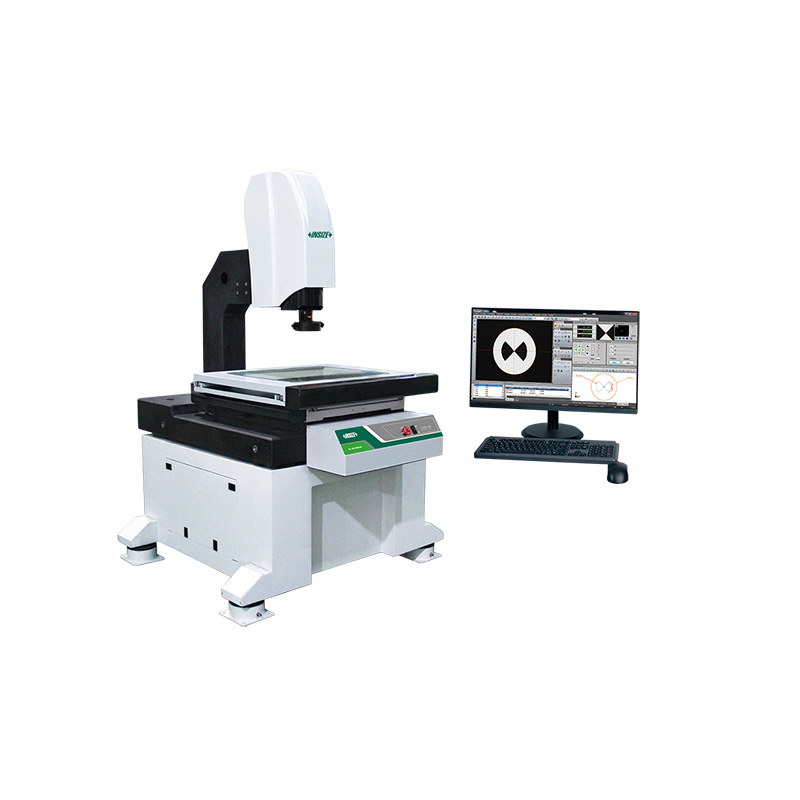

CNC Vision Measuring Systems
Code: ISD-V500N
Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
Servo motors for X, Y, Z axis
SPC function for large quantity measurement
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-V500N | 470×370×200mm | ≤(2.5+L/200)µm | 0.5μm | 2µm | 33.0X~208.6X (on 24'' monitor) | 30kg |
| ISD-V501N | 500×400×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 33.0X~208.6X (on 24'' monitor) | 30kg |
| ISD-V500HN | 470×370×400mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 33.0X~208.6X (on 24'' monitor) | 30kg |
| ISD-V501HN | 500×400×400mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 33.0X~208.6X (on 24'' monitor) | 30kg |
