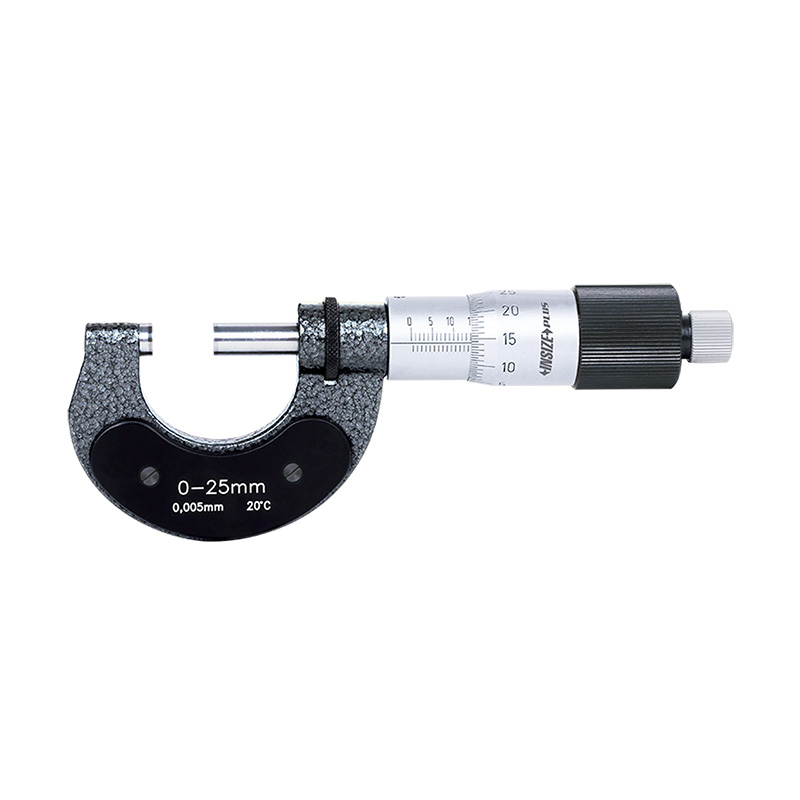

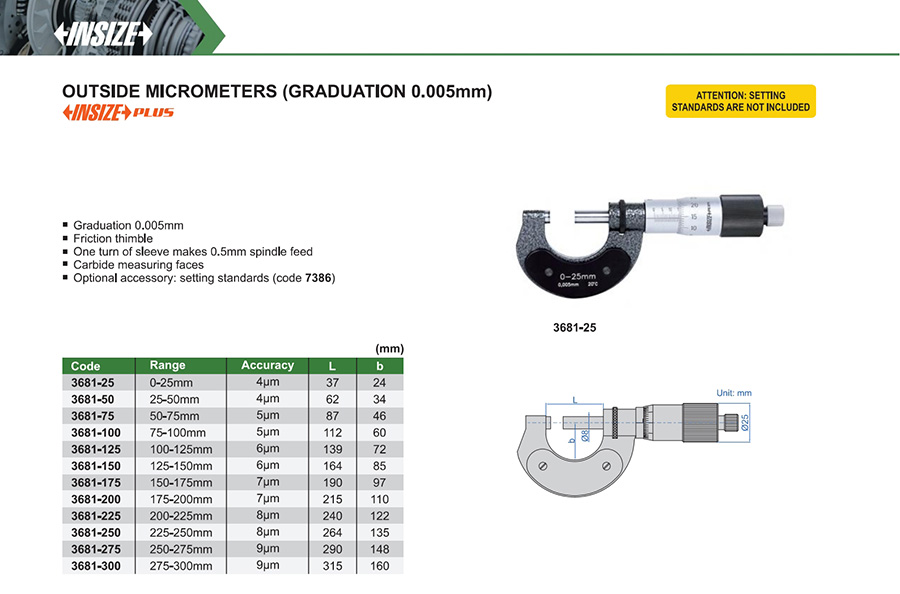

Outside Micrometers (Graduation 0.005mm)
Code: 3681
Friction thimble
One turn of sleeve makes 0.5mm spindle feed
Carbide measuring faces
Optional accessory: setting standards (code 7386)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3681-25 | 0-25mm | 4μm | 0.005mm |
| 3681-50 | 25-50mm | 4μm | 0.005mm |
| 3681-75 | 50-75mm | 5μm | 0.005mm |
| 3681-100 | 75-100mm | 5μm | 0.005mm |
| 3681-125 | 100-125mm | 6μm | 0.005mm |
| 3681-150 | 125-150mm | 6μm | 0.005mm |
| 3681-175 | 150-175mm | 7μm | 0.005mm |
| 3681-200 | 175-200mm | 7μm | 0.005mm |
| 3681-225 | 200-225mm | 8μm | 0.005mm |
| 3681-250 | 225-250mm | 8μm | 0.005mm |
| 3681-275 | 250-275mm | 9μm | 0.005mm |
| 3681-300 | 275-300mm | 9μm | 0.005mm |
