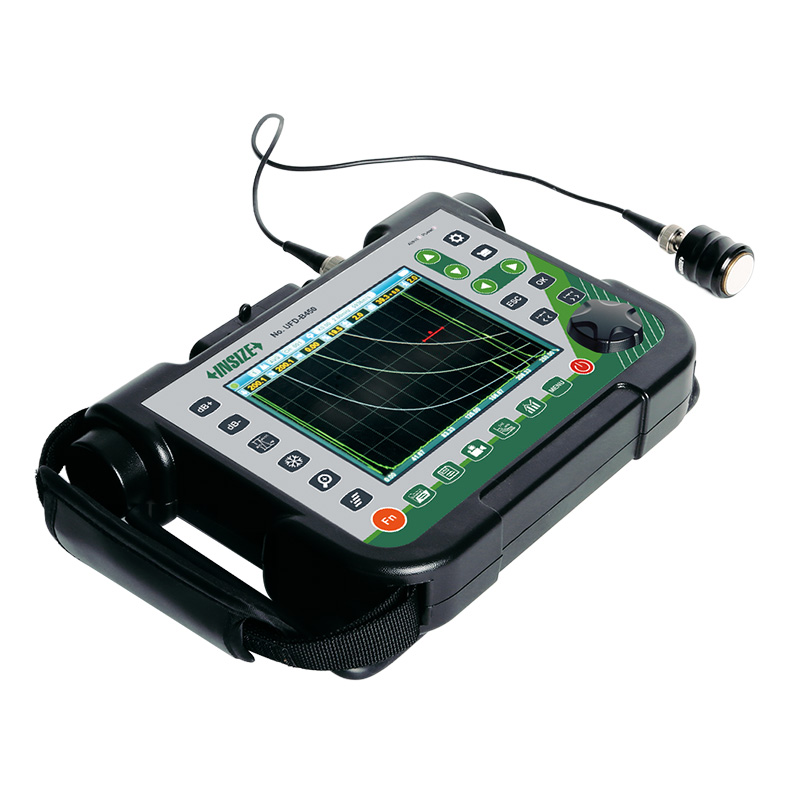

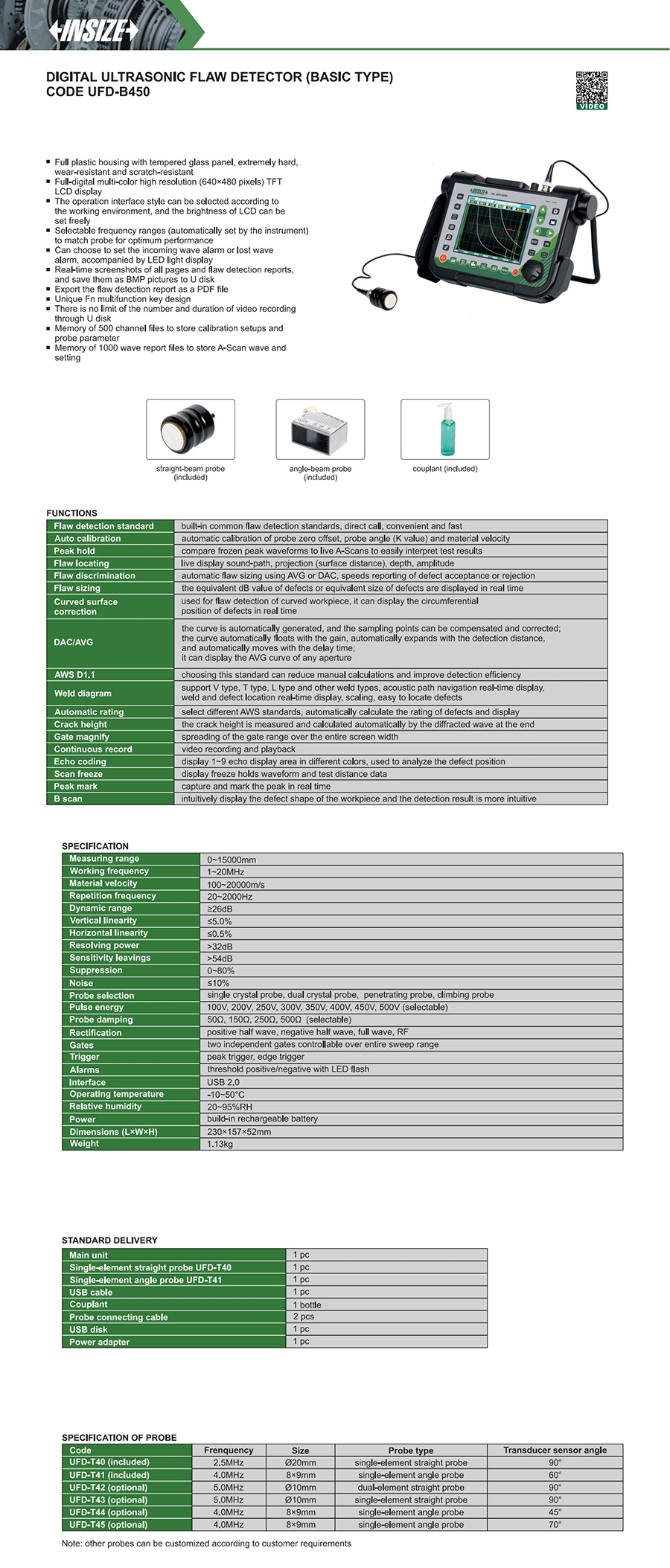

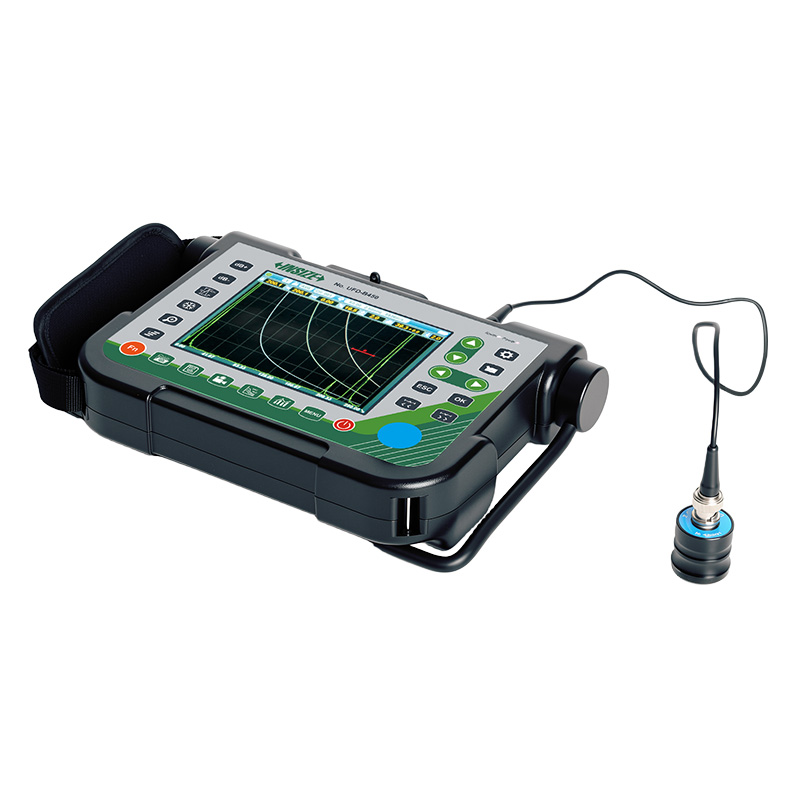

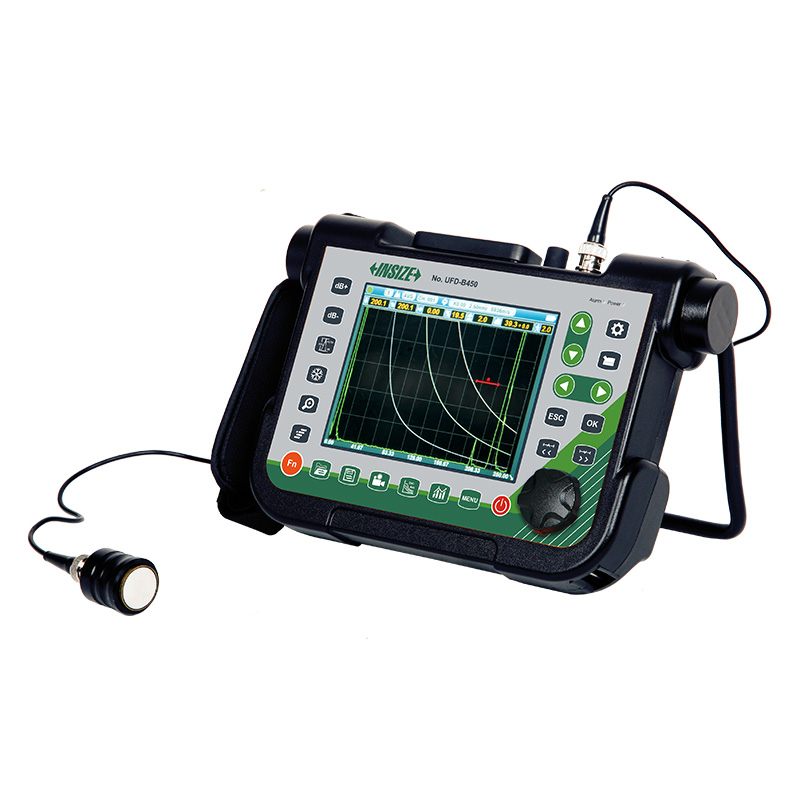

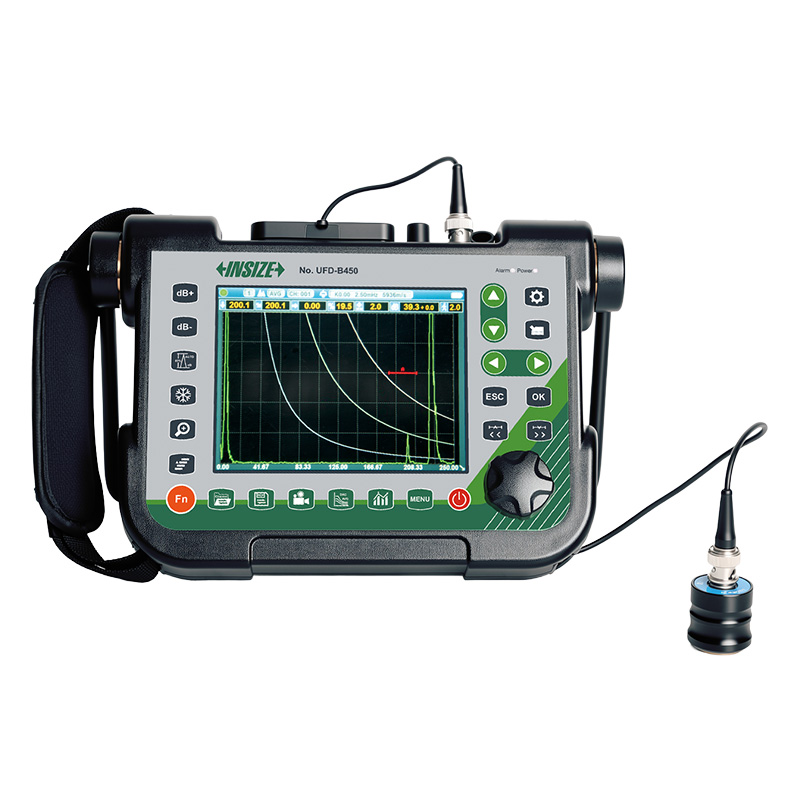

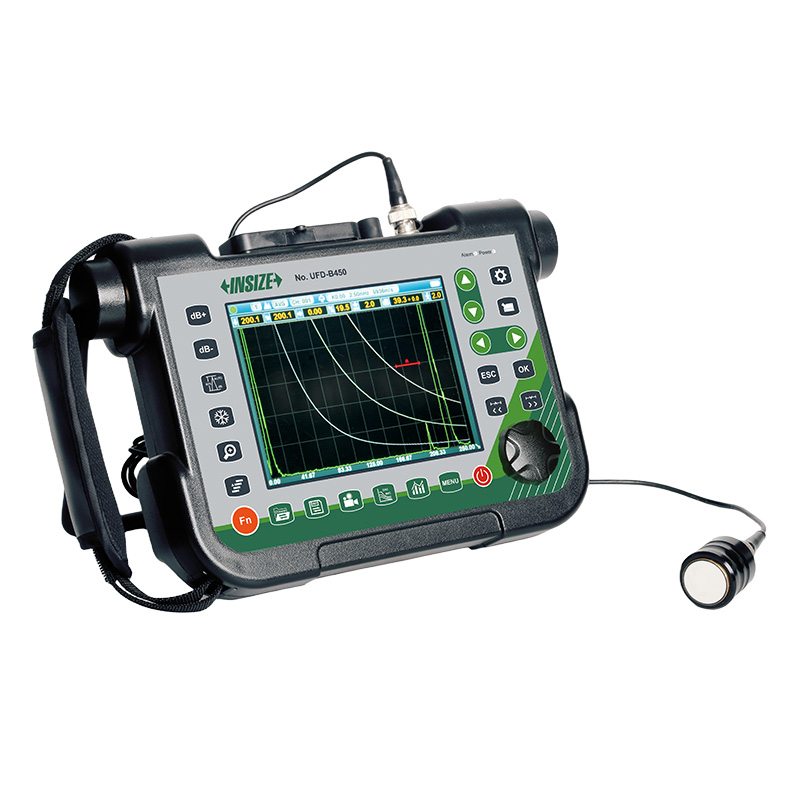

Digital Ultrasonic Flaw Detector (Basic Type)
Code: UFD-B450
Full plastic housing with tempered glass panel, extremely hard, wear-resistant and scratch-resistant
Full-digital multi-color high resolution (640×480 pixels) TFT LCD display
The operation interface style can be selected according to the working environment, and the brightness of LCD can be set freely
Selectable frequency ranges (automatically set by the instrument)to match probe for optimum performance
Can choose to set the incoming wave alarm or lost wave alarm, accompanied by LED light display
| Code | Range | Frequency | Vertical linearity | Horizontal linearity | Dynamic range | Resolving power | Sensitivity leavings |
|---|---|---|---|---|---|---|---|
| UFD-B450 | 0~15000mm | 1~20MHz | ≤5.0% | ≤0.5% | ≥26dB | ˃32dB | ˃54dB |
