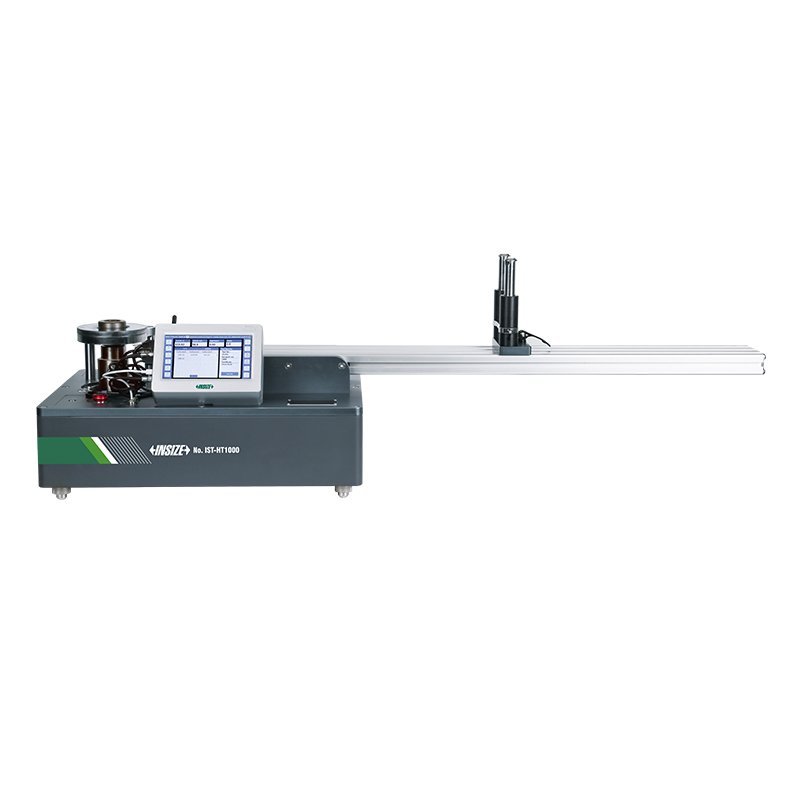

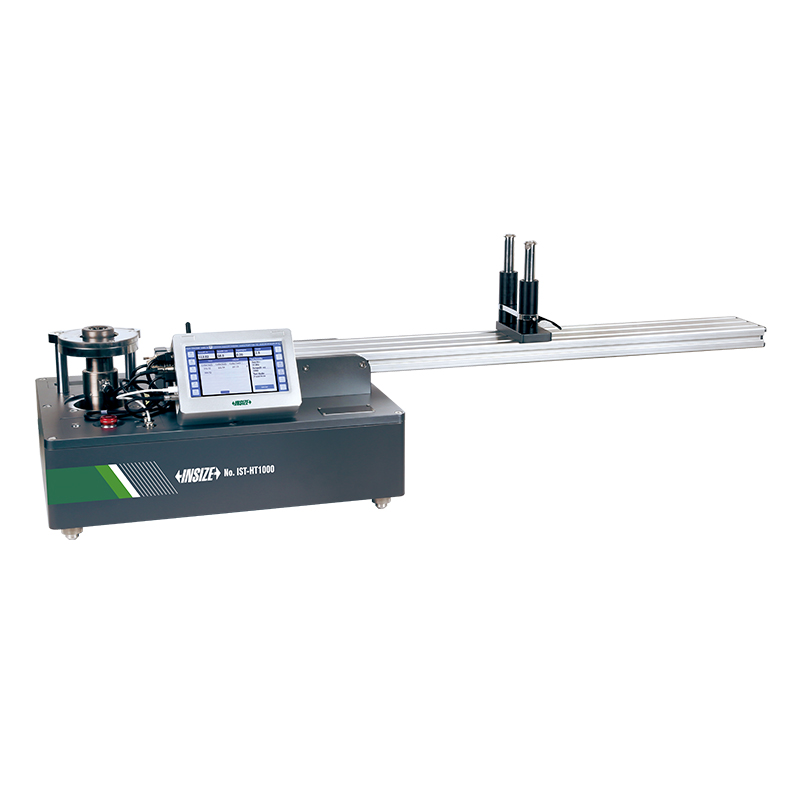

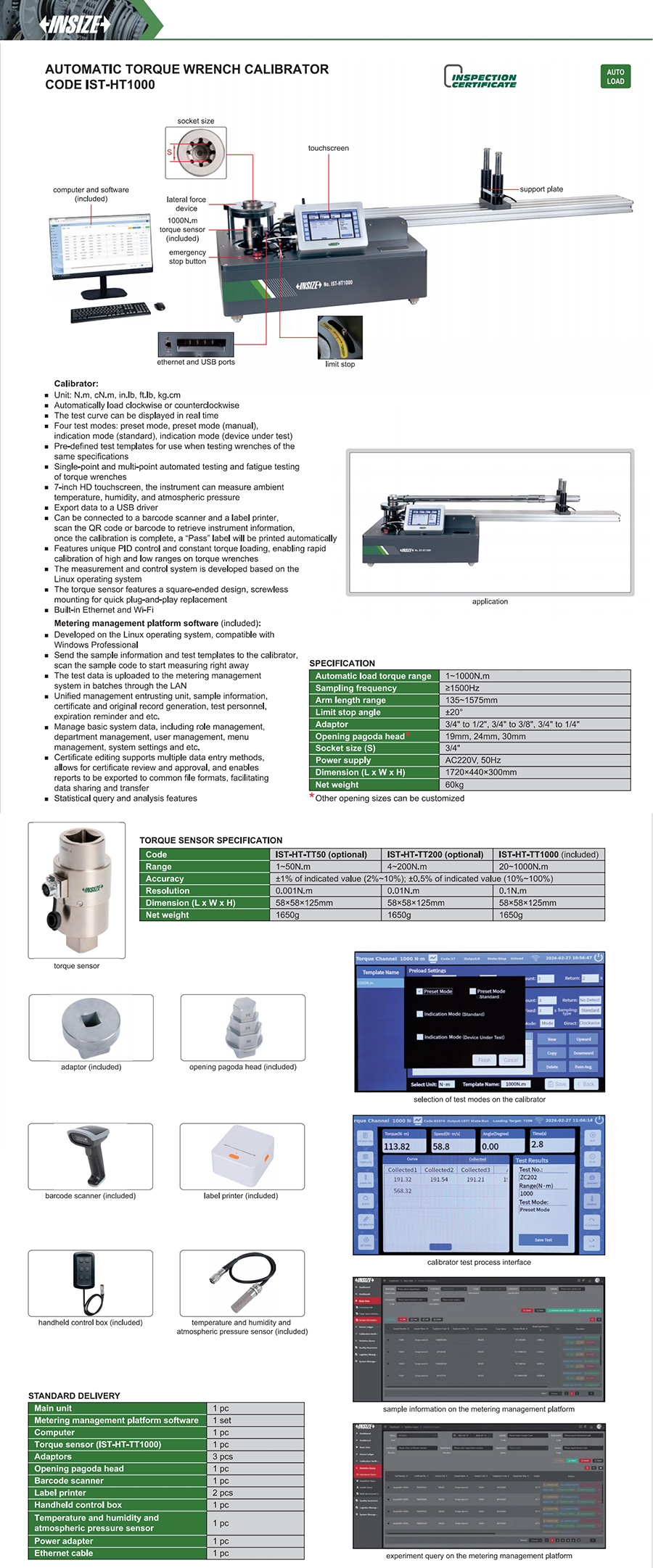

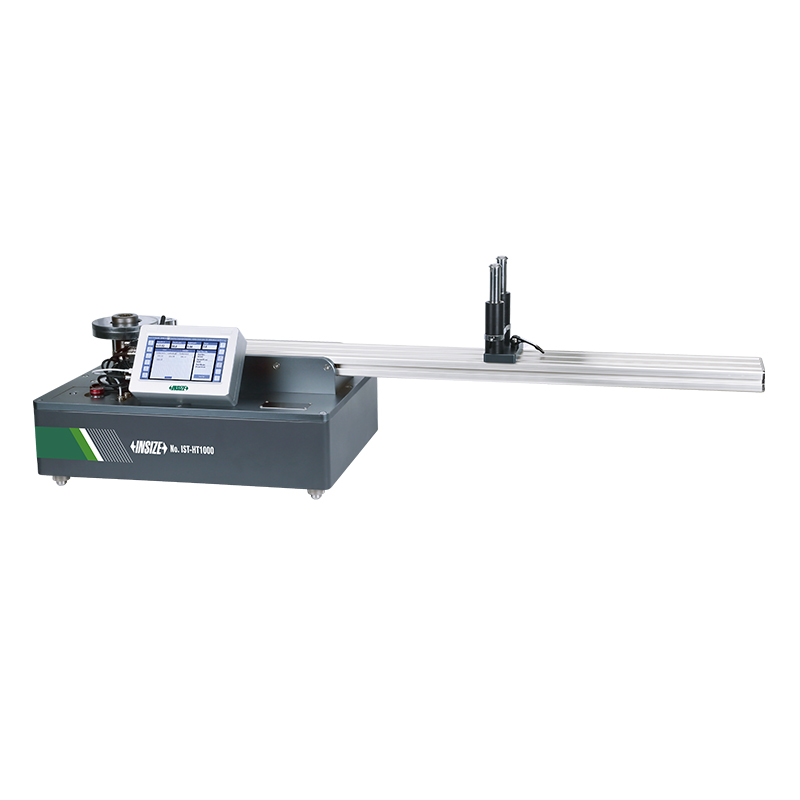

Automatic Torque Wrench Calibrator

Unit: N.m, cN.m, in.lb, ft.lb, kg.cm

Automatically load clockwise or counterclockwise

The test curve can be displayed in real time

Four test modes: preset mode, preset mode (manual), indication mode (standard), indication mode (device under test)

Pre-defined test templates for use when testing wrenches of the same specifications

Single-point and multi-point automated testing and fatigue testing of torque wrenches

7-inch HD touchscreen, the instrument can measure ambient temperature, humidity, and atmospheric pressure

Can be connected to a barcode scanner and a label printer, scan the QR code or barcode to retrieve instrument information, once the calibration is complete, a “Pass” label will be printed automatically

Features unique PID control and constant torque loading, enabling rapid calibration of high and low ranges on torque wrenches

The measurement and control system is developed based on the Linux operating system

The torque sensor features a square-ended design, screwless mounting for quick plug-and-play replacement

Built-in Ethernet and Wi-Fi
