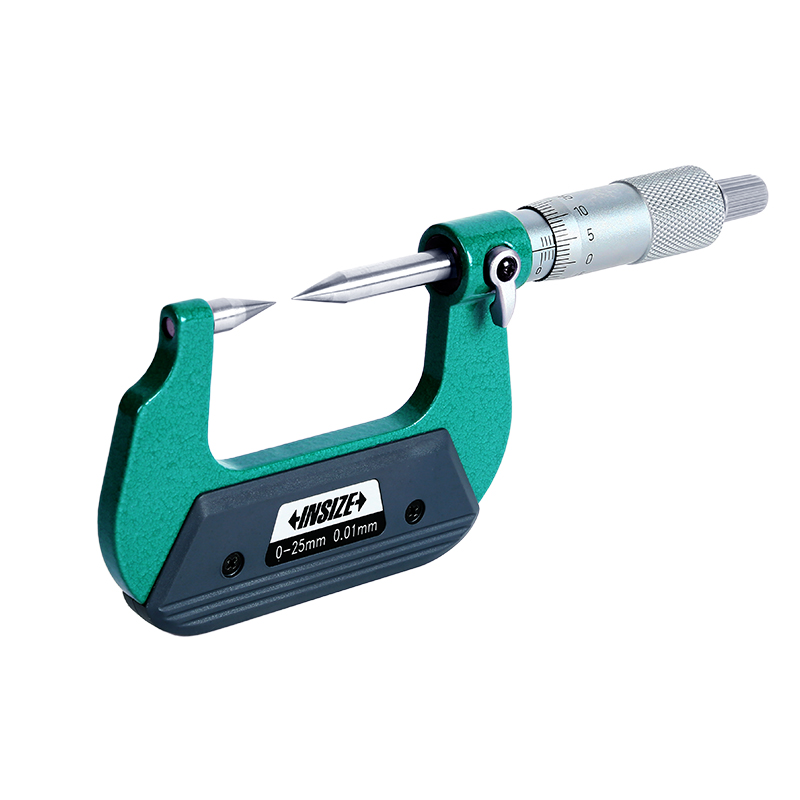

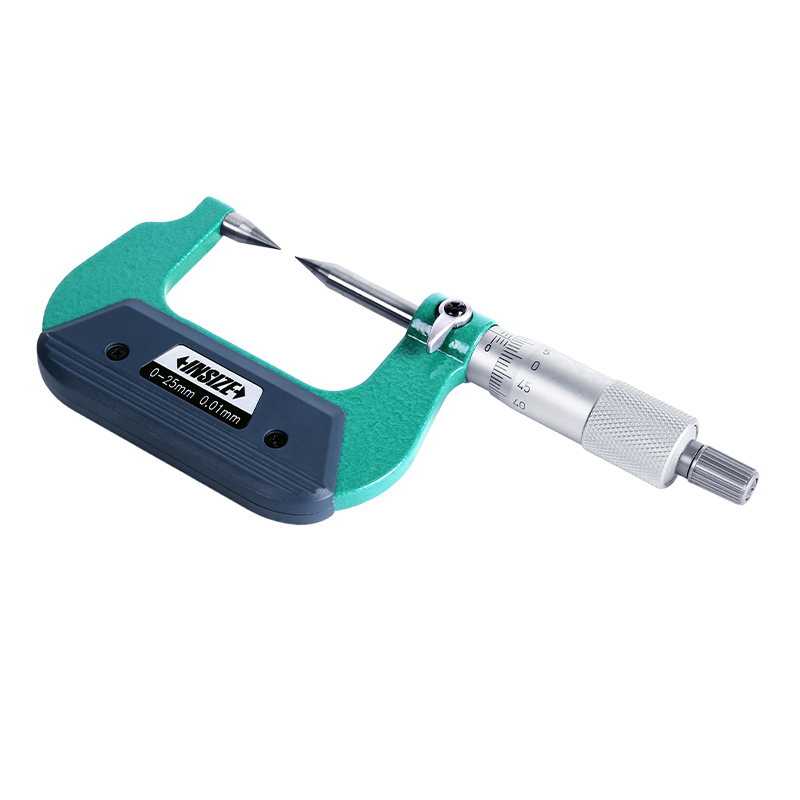

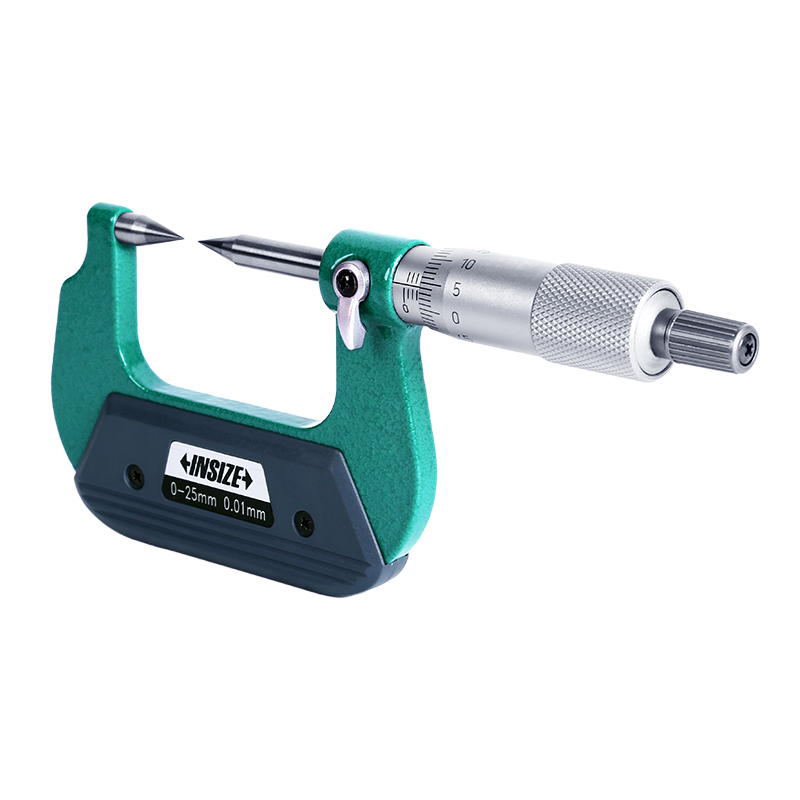

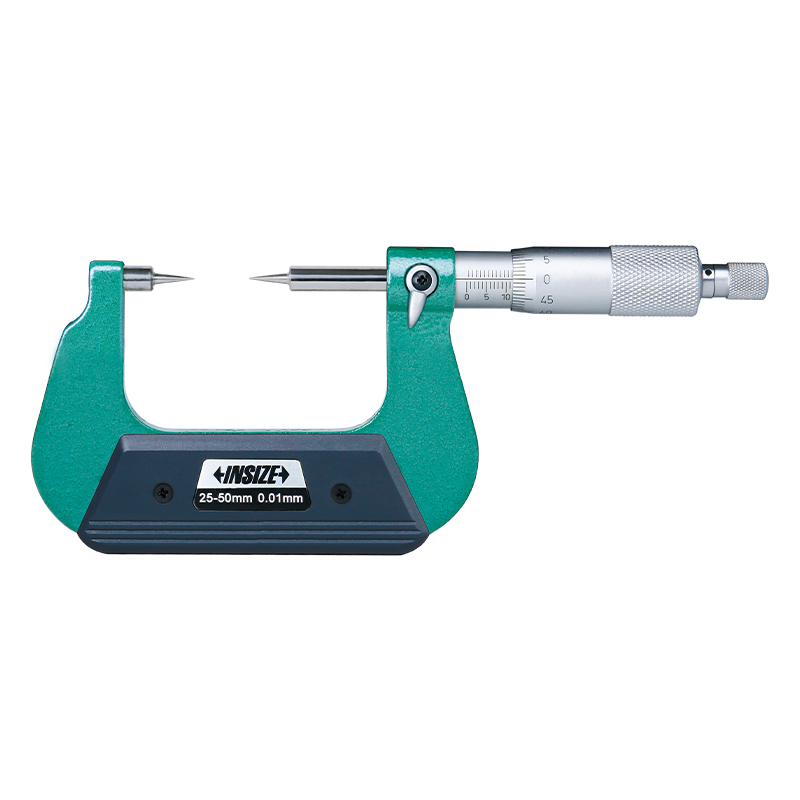

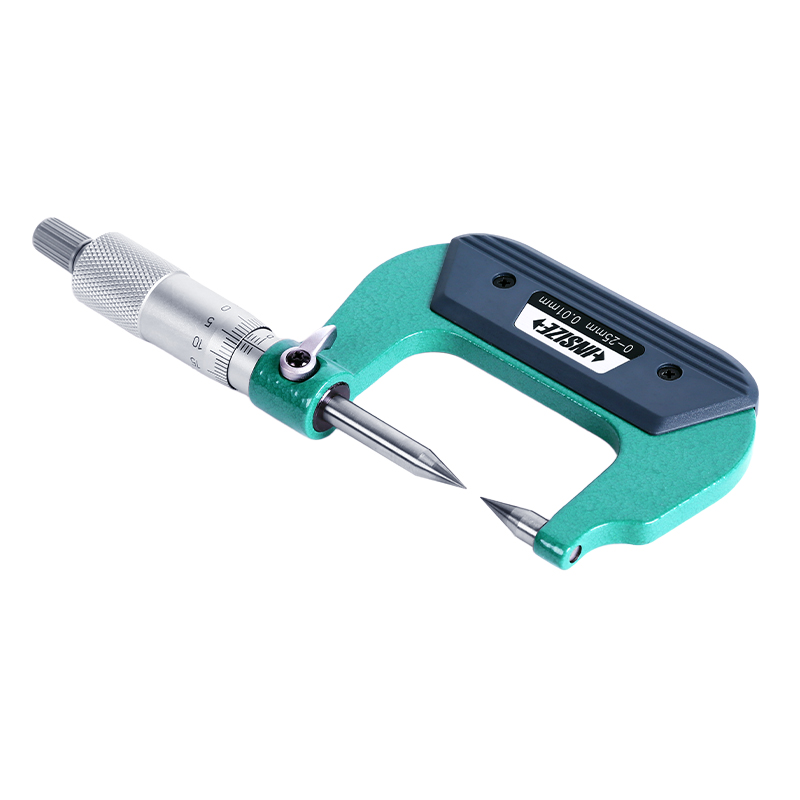

Point Micrometers
Code: 3230
Measure the web thickness of drills, small grooves and keyways
Ratchet stop
Carbide tips
Supplied with setting standards (except 0-25mm)

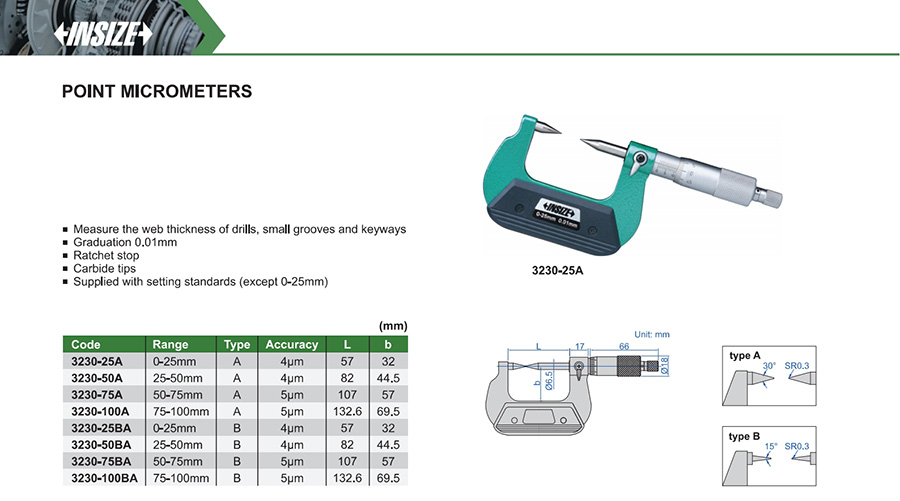

| Code | Type | Range | Accuracy | Graduation |
|---|---|---|---|---|
| 3230-25A | A | 0-25mm | 4μm | 0.01mm |
| 3230-50A | A | 25-50mm | 4μm | 0.01mm |
| 3230-75A | A | 50-75mm | 5μm | 0.01mm |
| 3230-100A | A | 75-100mm | 5μm | 0.01mm |
| 3230-25BA | B | 0-25mm | 4μm | 0.01mm |
| 3230-50BA | B | 25-50mm | 4μm | 0.01mm |
| 3230-75BA | B | 50-75mm | 5μm | 0.01mm |
| 3230-100BA | B | 75-100mm | 5μm | 0.01mm |
