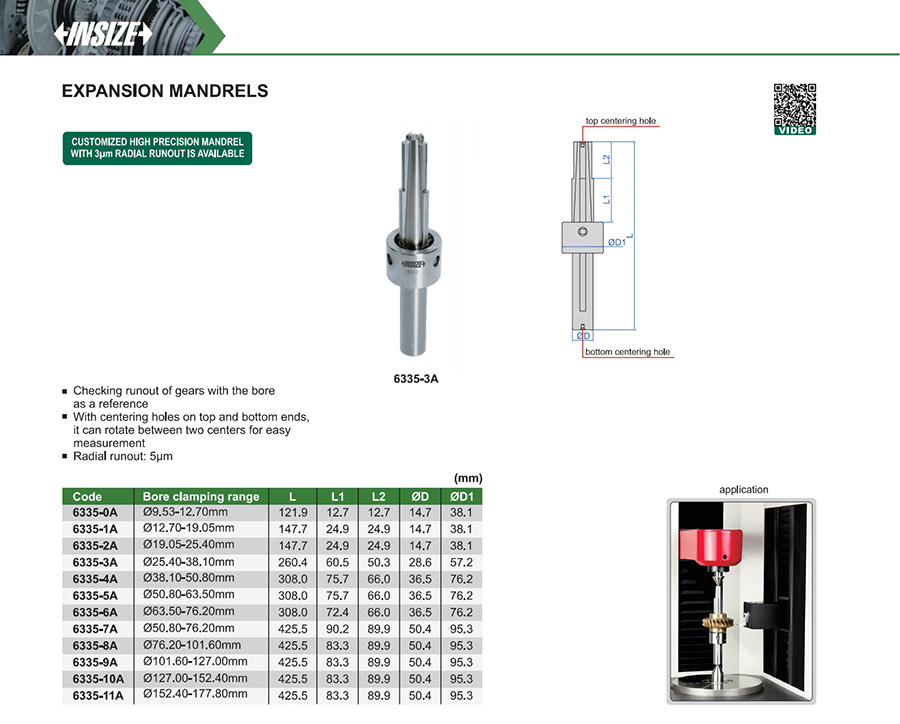

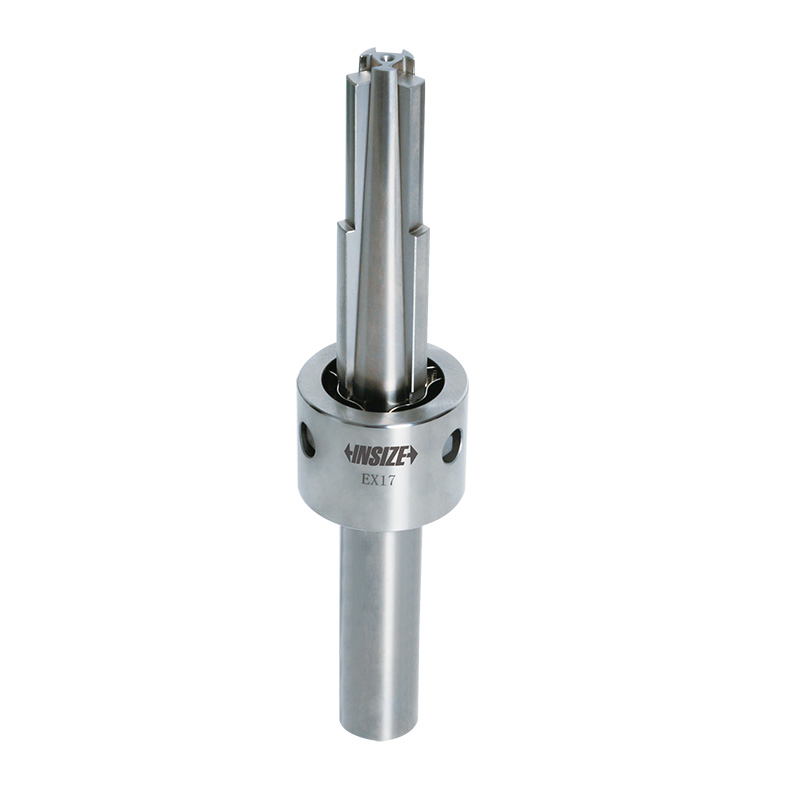

Expansion Mandrels
Code: 6335
Checking runout of gears with the bore as a reference
With centering holes on top and bottom ends, it can rotate between two centers for easy measurement
Radial runout: 5µm
| Code | Bore clamping range |
|---|---|
| 6335-0A | Ø9.53-12.70mm |
| 6335-1A | Ø12.70-19.05mm |
| 6335-2A | Ø19.05-25.40mm |
| 6335-3A | Ø25.40-38.10mm |
| 6335-4A | Ø38.10-50.80mm |
| 6335-5A | Ø50.80-63.50mm |
| 6335-6A | Ø63.50-76.20mm |
| 6335-7A | Ø50.80-76.20mm |
| 6335-8A | Ø76.20-101.60mm |
| 6335-9A | Ø101.60-127.00mm |
| 6335-10A | Ø127.00-152.40mm |
| 6335-11A | Ø152.40-177.80mm |
