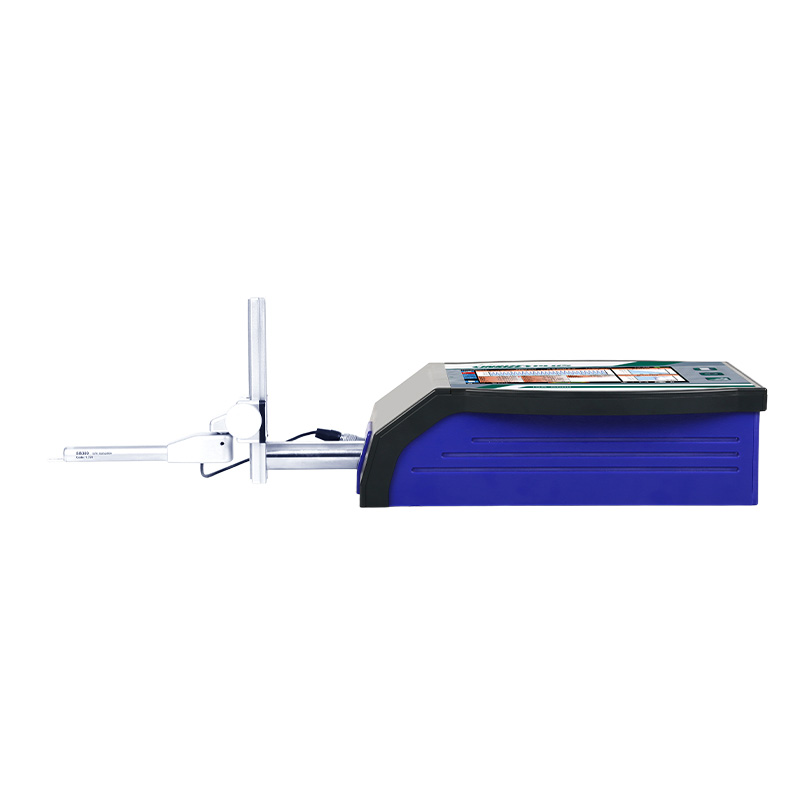

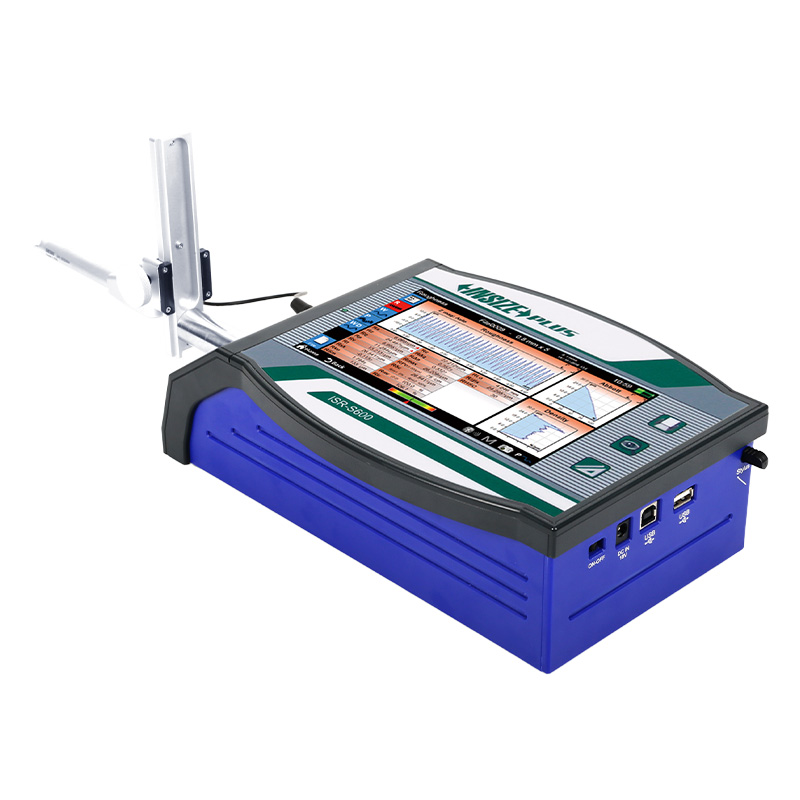

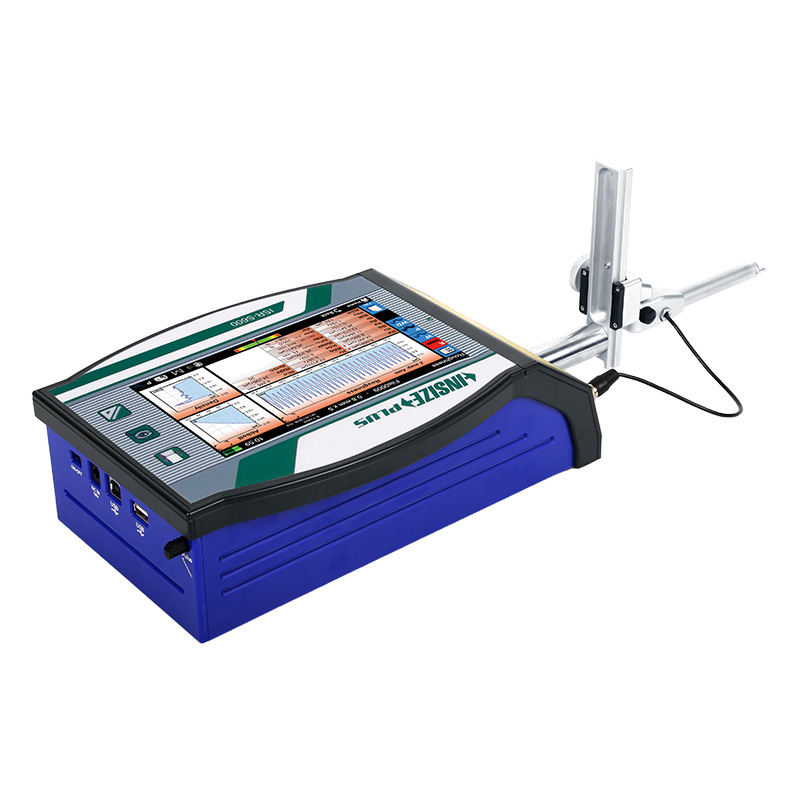

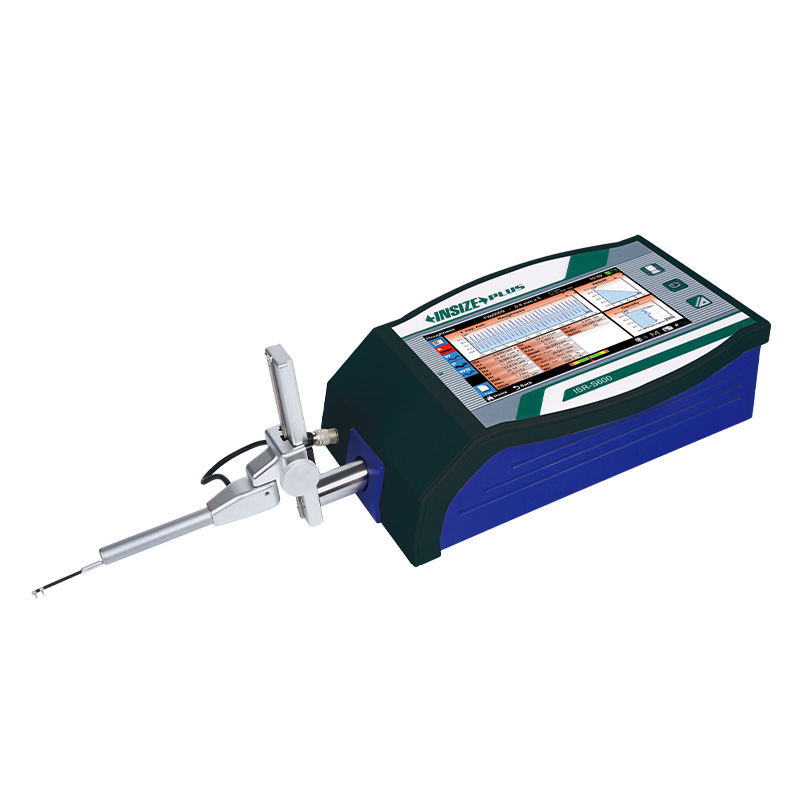

Surface Roughness And Profile Tester
Code: ISR-S600
74 roughness parameters according to ISO-4287, ISO-13565, DIN-4768, VDA-2007, JIS-B0671,JIS-B0601, ASME-B46.1, ISO-12085, JIS-B0631
Automatic probe leveling
Can measure grit and shot blasting
Traverse length up to 59mm
Color touch screen, display roughness values, profile and curves
Allow to connect U disk to save measurement results in Excel, PDF, DXF and image
| Code | Range | Measuring force | Stylus radius/angle | Data output |
|---|---|---|---|---|
| ISR-S600 | 1500µm | 4mN | 2µm/90° | USB and bluetooth |
