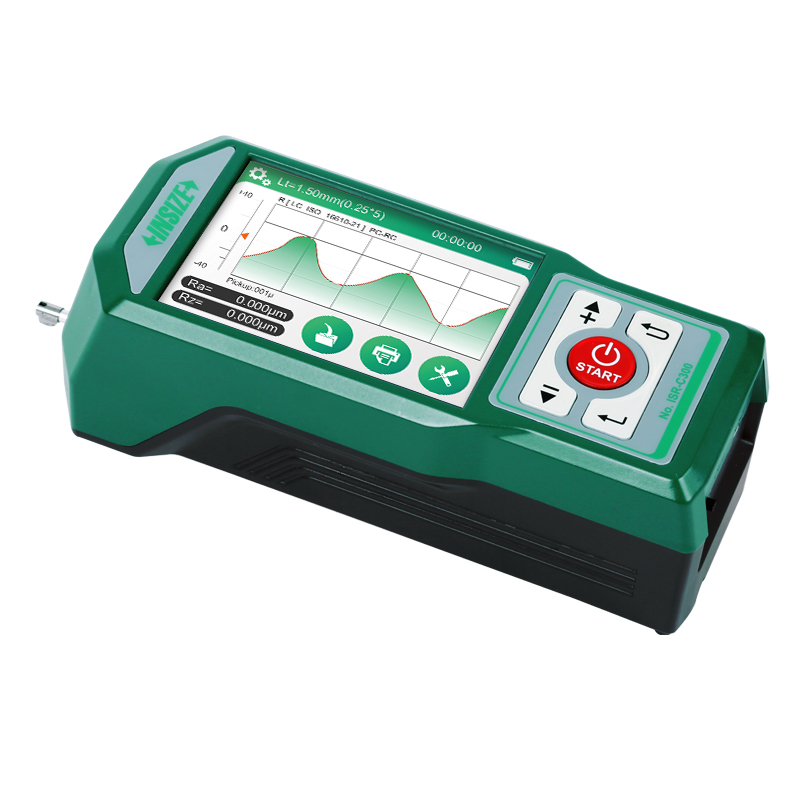

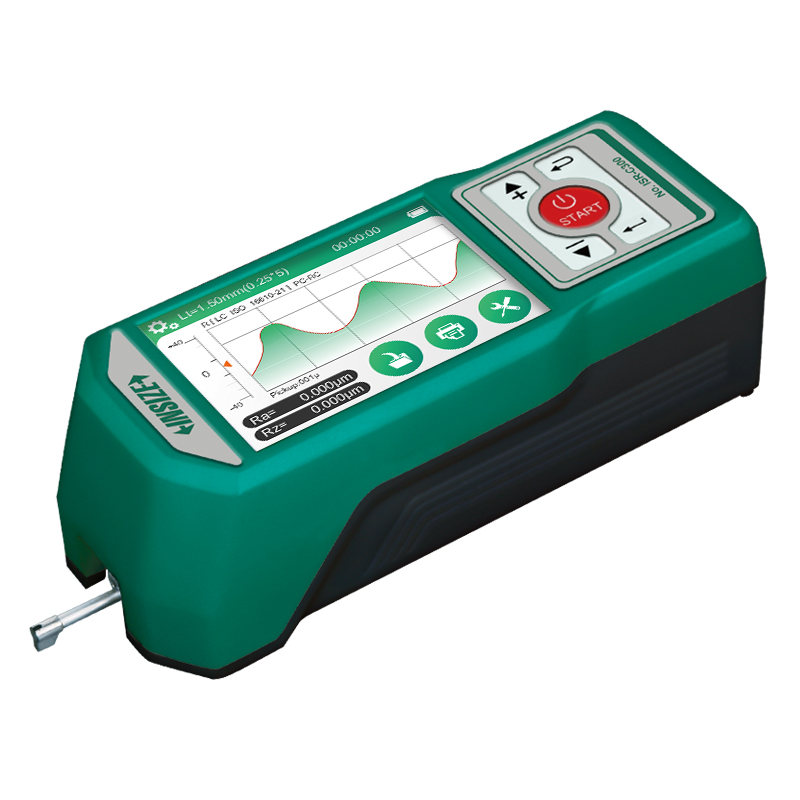

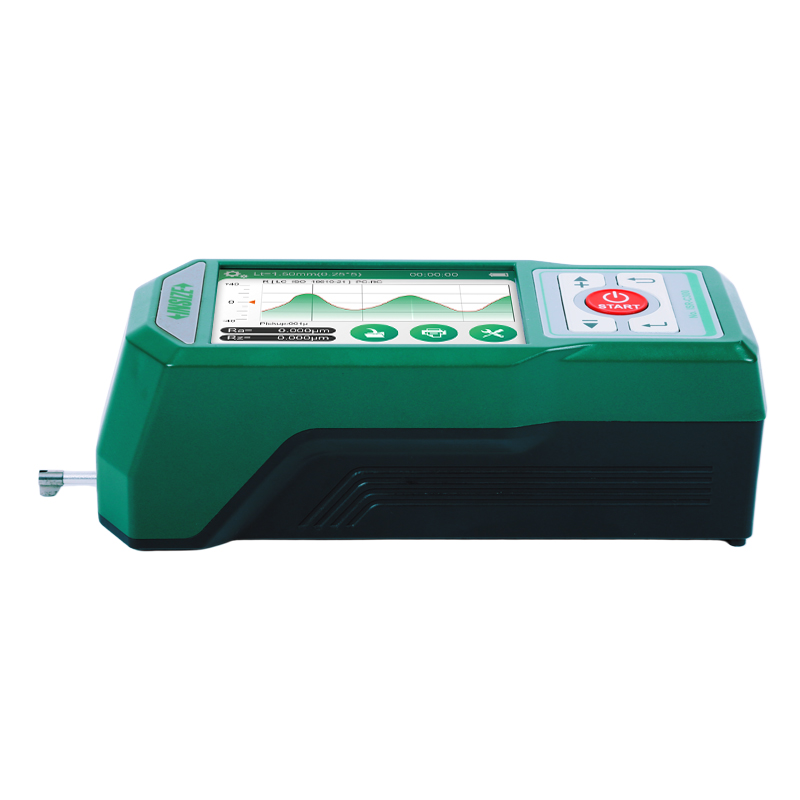

Roughness Testers (Separable Type)
Code: ISR-C300/C301/C300WL
Roughness tester can be operated by mobile phones or computers
Optional wireless or Bluetooth receivers can be used to output keyboard signals, connecting to a computer to send data to Excel
Support bluetooth printer
36 roughness parameters
Meet ISO, DIN, ANSI, JIS standards
Display roughness values, profile and curve
Memory of maximum 100 data and waveform
Touchu screen
| Code | Range | Measuring force | Stylus radius/angle | Data output |
|---|---|---|---|---|
| ISR-C300 | X axis 17.5mm/Z axis 400µm (-200µm~200µm) | 4mN | 5µm/90° | USB and bluetooth |
| ISR-C301 | X axis 17.5mm/Z axis 400µm (-200µm~200µm) | 0.75mN | 2µm/60° | USB and bluetooth |
| ISR-C300WL | X axis 17.5mm/Z axis 400µm (-200µm~200µm) | 4mN | 5µm/90° | USB and Wireless |
