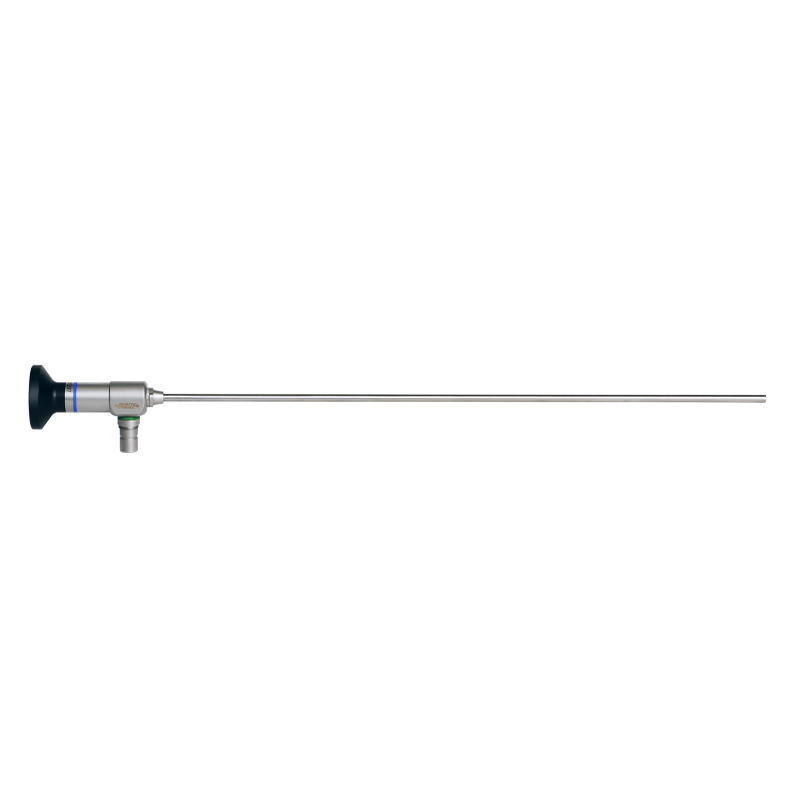

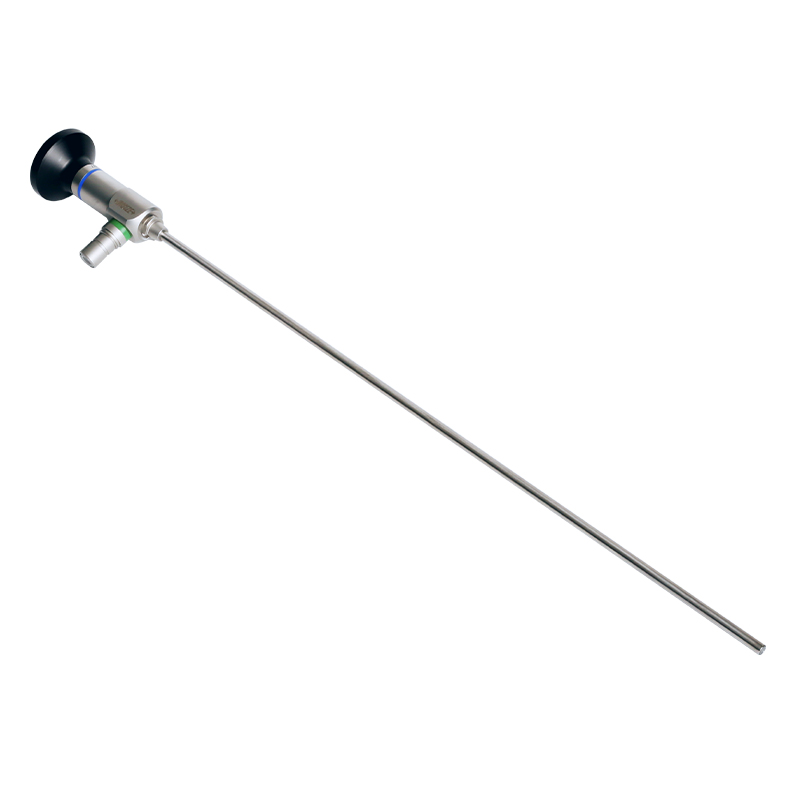

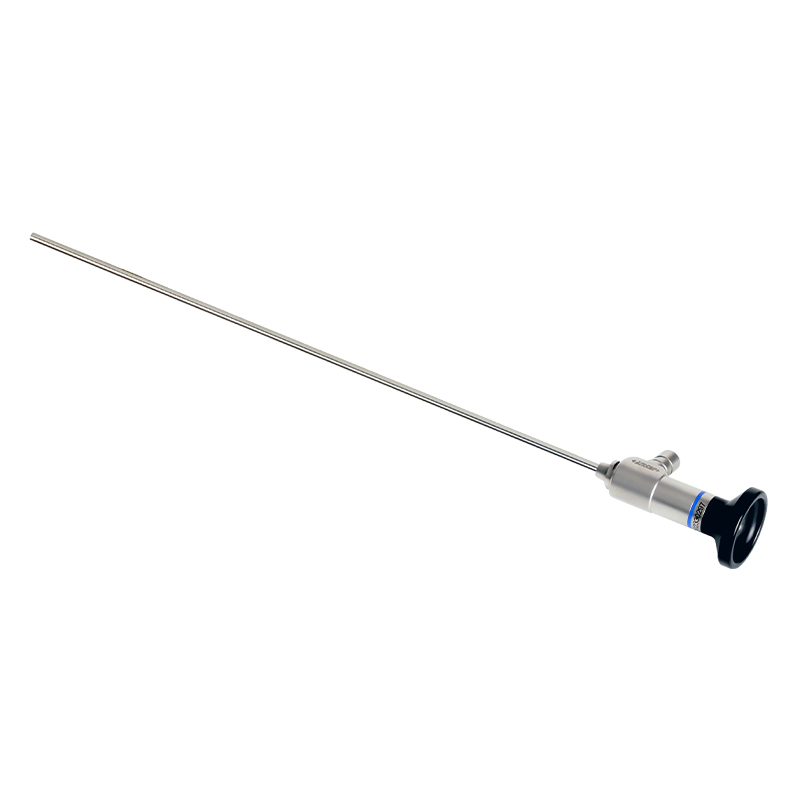

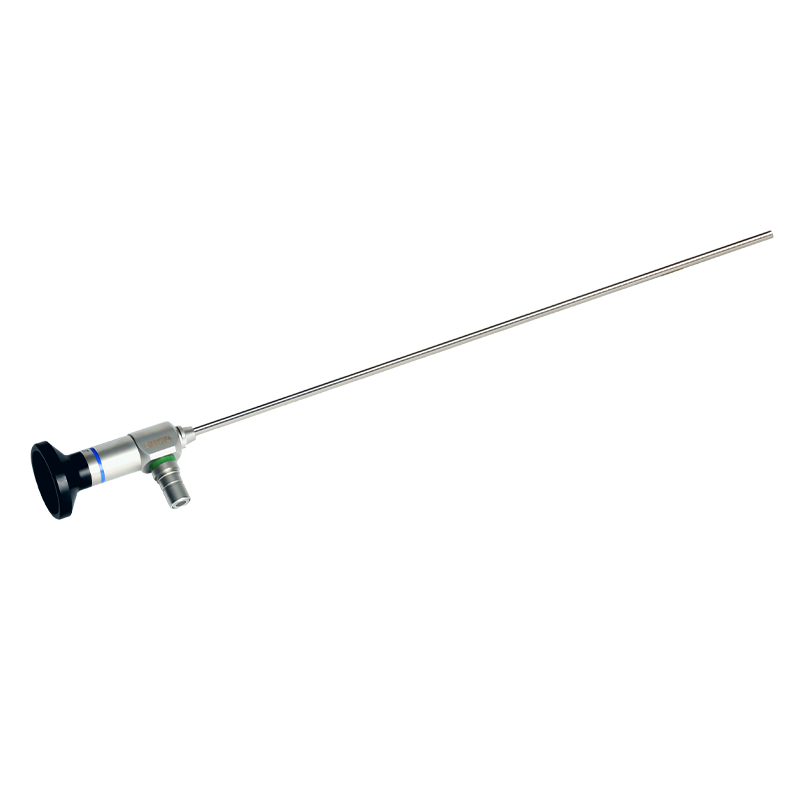

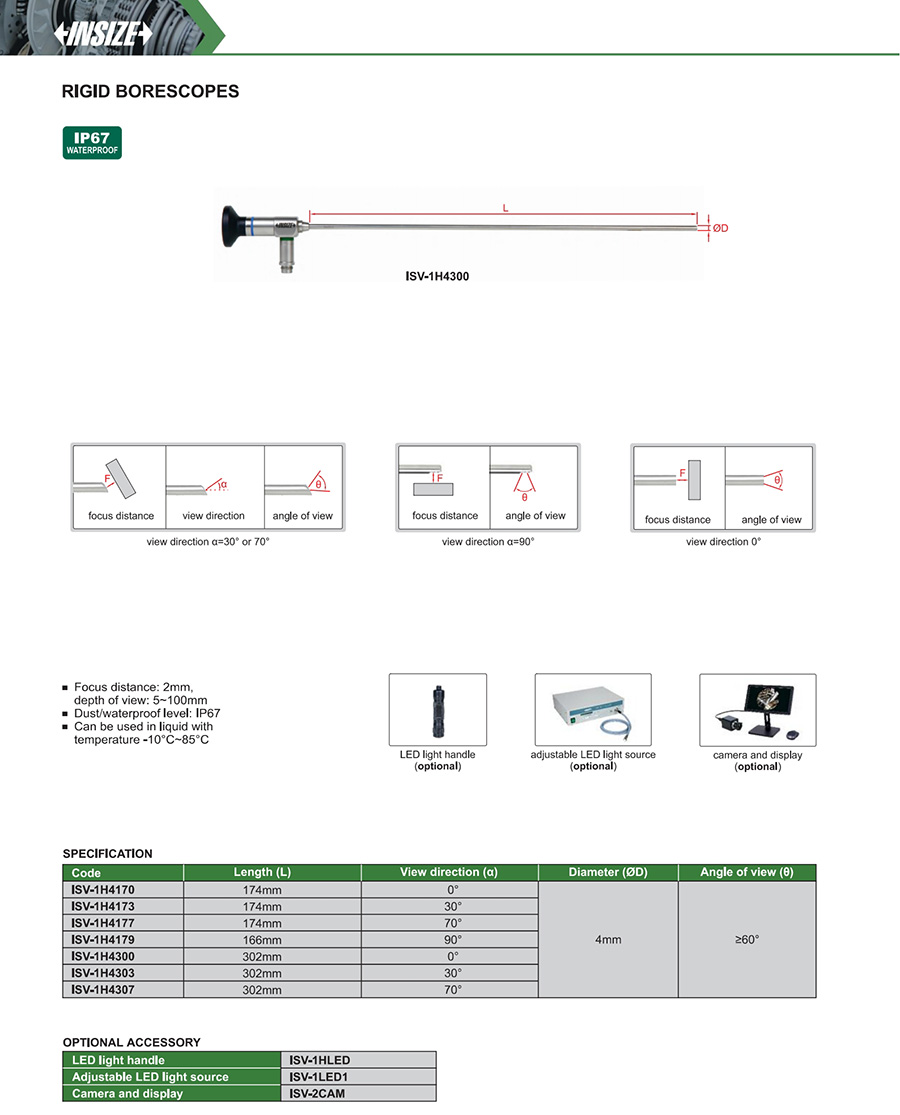

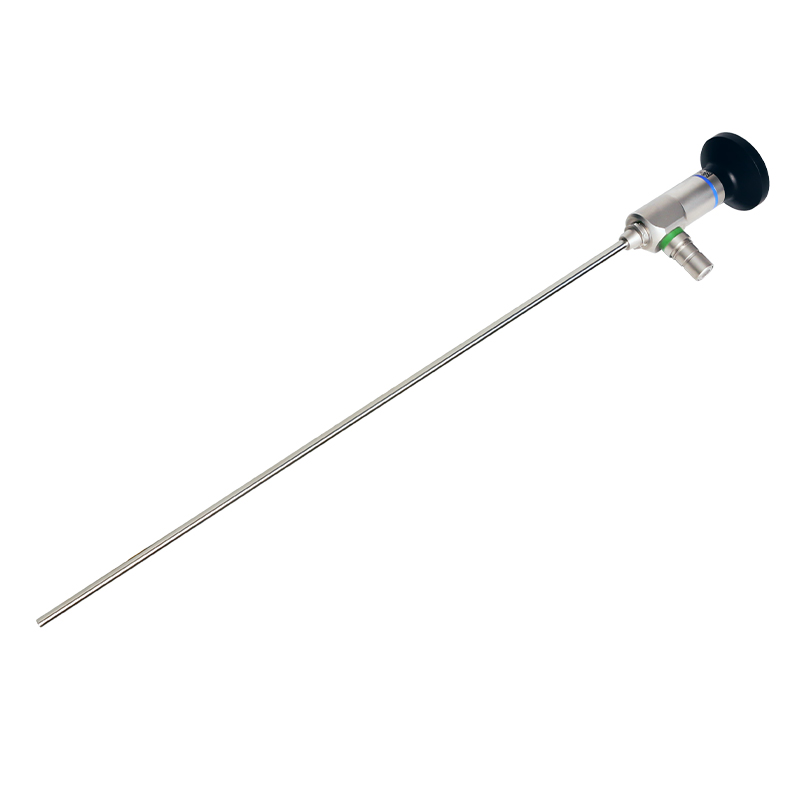

Rigid Borescopes
Code: ISV-1H Series
Focus distance: 2mm, depth of view: 5~100mm
Dust/waterproof level: IP67
Can be used in liquid with temperature -10°C~85°C
| Code | Cable type | View direction | Lens diameter(ØD) | Cable length (L) | Angle of view (θ) |
|---|---|---|---|---|---|
| ISV-1H4170 | rigid | 0° | 4mm | 174mm | ≥60° |
| ISV-1H4173 | rigid | 30° | 4mm | 174mm | ≥60° |
| ISV-1H4177 | rigid | 70° | 4mm | 174mm | ≥60° |
| ISV-1H4179 | rigid | 90° | 4mm | 166mm | ≥60° |
| ISV-1H4300 | rigid | 0° | 4mm | 302mm | ≥60° |
| ISV-1H4303 | rigid | 30° | 4mm | 302mm | ≥60° |
| ISV-1H4307 | rigid | 70° | 4mm | 302mm | ≥60° |
