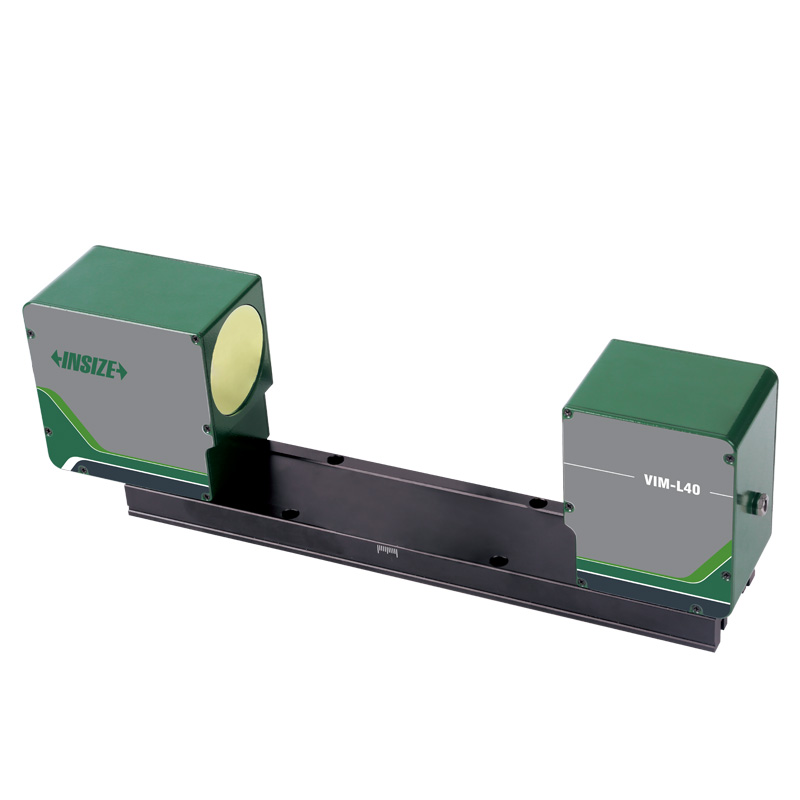

Online/Offline Quick Measurement Systems
Code: VIM-L Series
Low-distortion system assures the accuracy throughout the field of view
The dual telecentric optical system ensures sharp edges without losing accuracy even for misaligned targets
Easy to use measurement tools for simplifi setup
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| VIM-L40 | view field:Ø26mm/Ø40mm;depth of field:10mm/20mm | ±2μm/±3μm | ±1μm |
| VIM-L65 | view field:Ø40mm/Ø65mm;depth of field:20mm/30mm | ±3μm/±4μm | ±1μm |
| VIM-L120 | view field:Ø60mm/Ø120mm;depth of field:20mm/40mm | ±4μm/±5μm | ±2μm |
