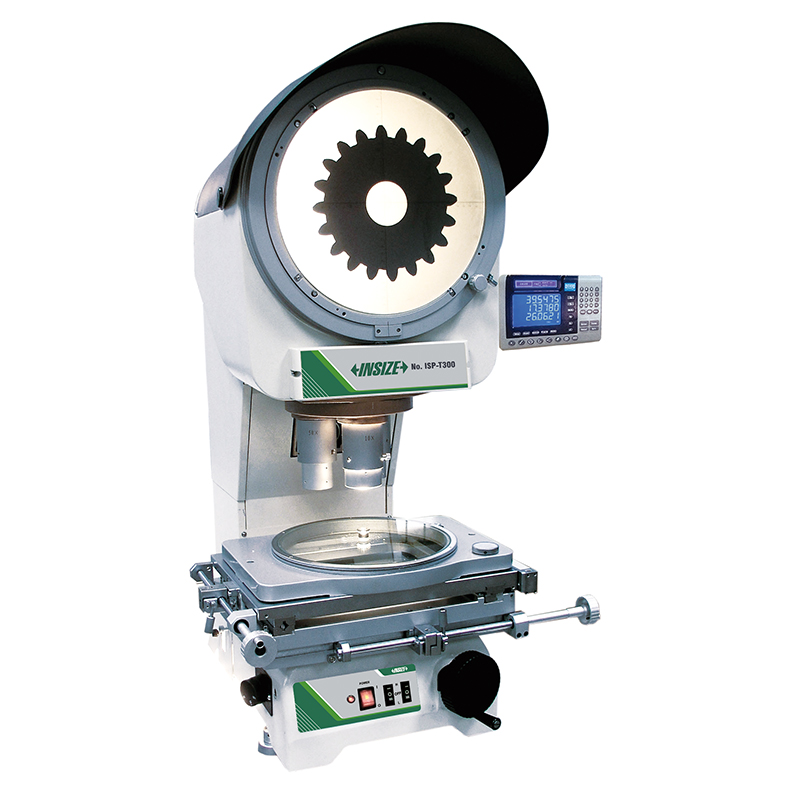

Multi-Lens Profile Projectors
Code: ISP-T300A/T300B/T350A/T350B
Adjust the focus by ascending and descending the projector head
Lens turret, easy to switch the magnification
Two levels of contour illumination
| Code | Type | Range | Accuracy | Resolution | Edge detector | Projector screen diameter | Image |
|---|---|---|---|---|---|---|---|
| ISP-T300A | vertical | 200×150mm | (3+L/75)µm | 1µm | not included | Ø300mm | erect image |
| ISP-T300B | vertical | 200×150mm | (3+L/75)µm | 1µm | not included | Ø300mm | inverted image |
| ISP-T350A | vertical | 250×150mm | (3+L/75)µm | 1µm | not included | Ø300mm | erect image |
| ISP-T350B | vertical | 250×150mm | (3+L/75)µm | 1µm | not included | Ø300mm | inverted image |
