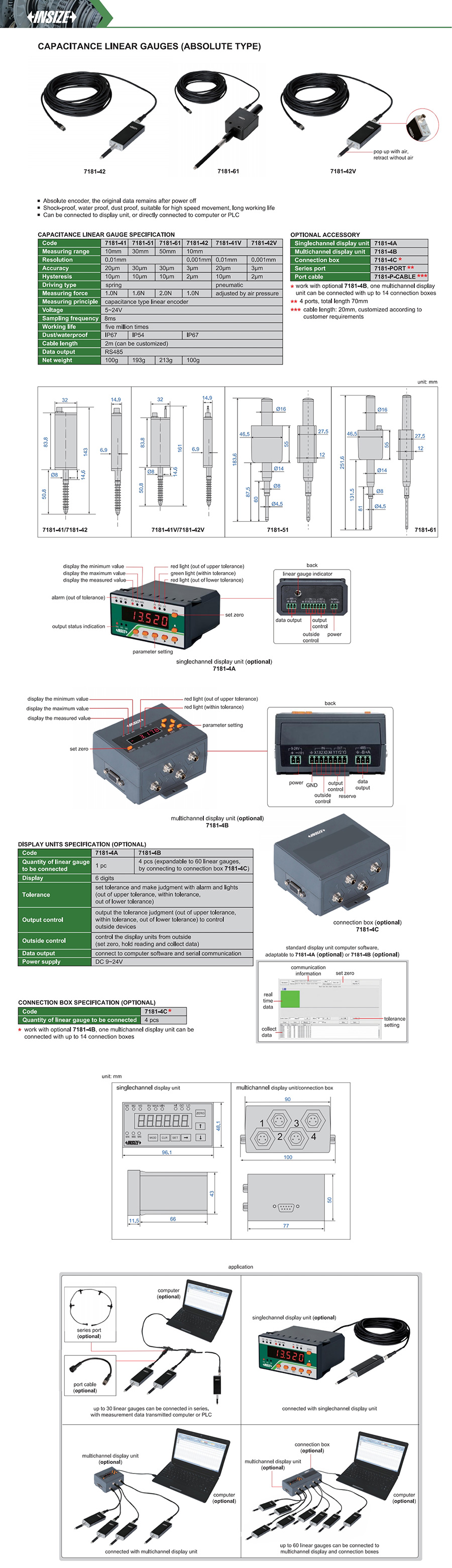

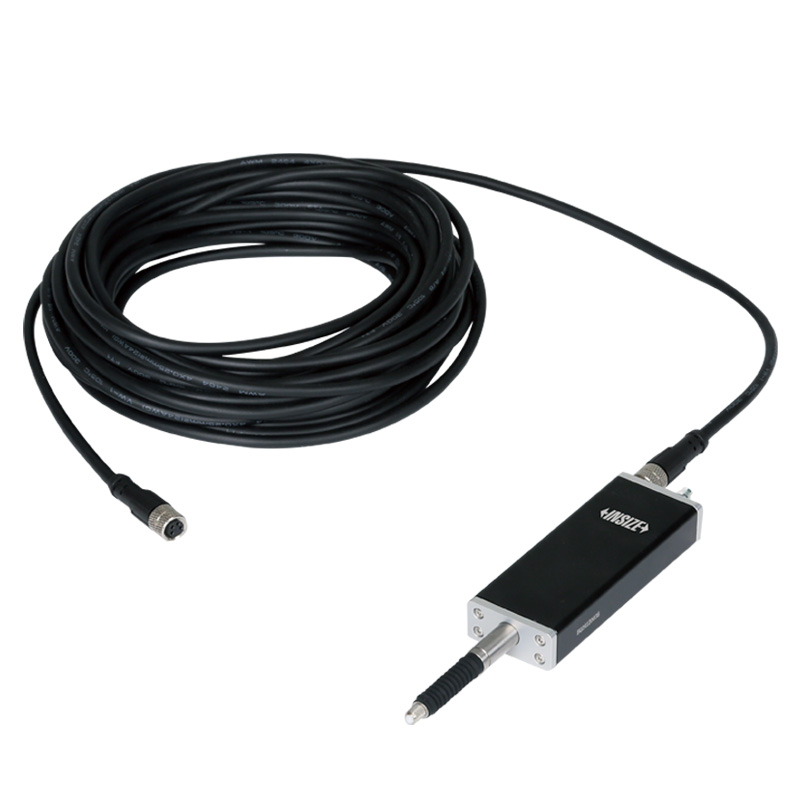

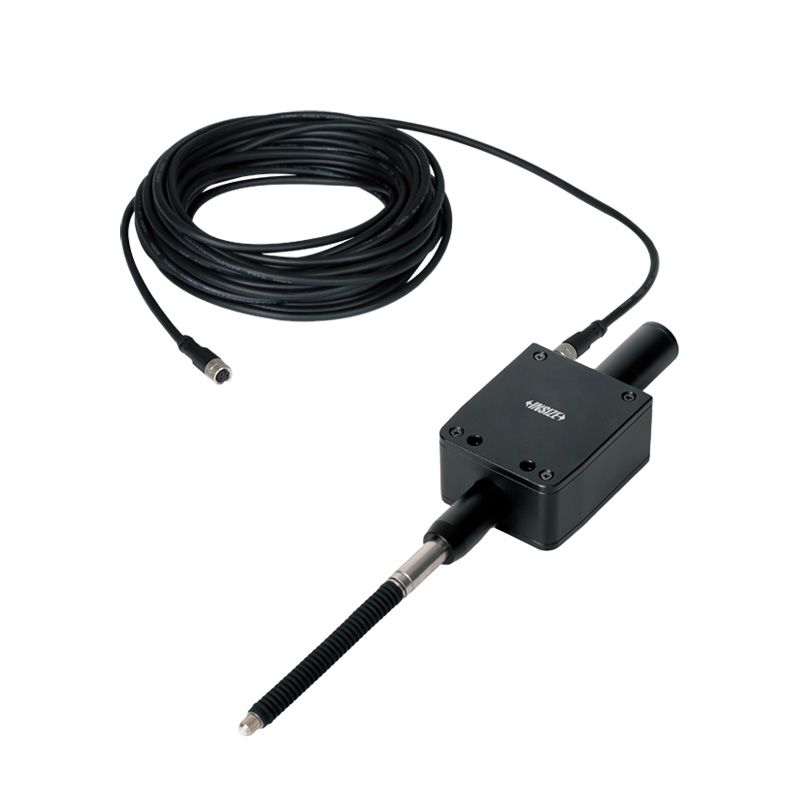

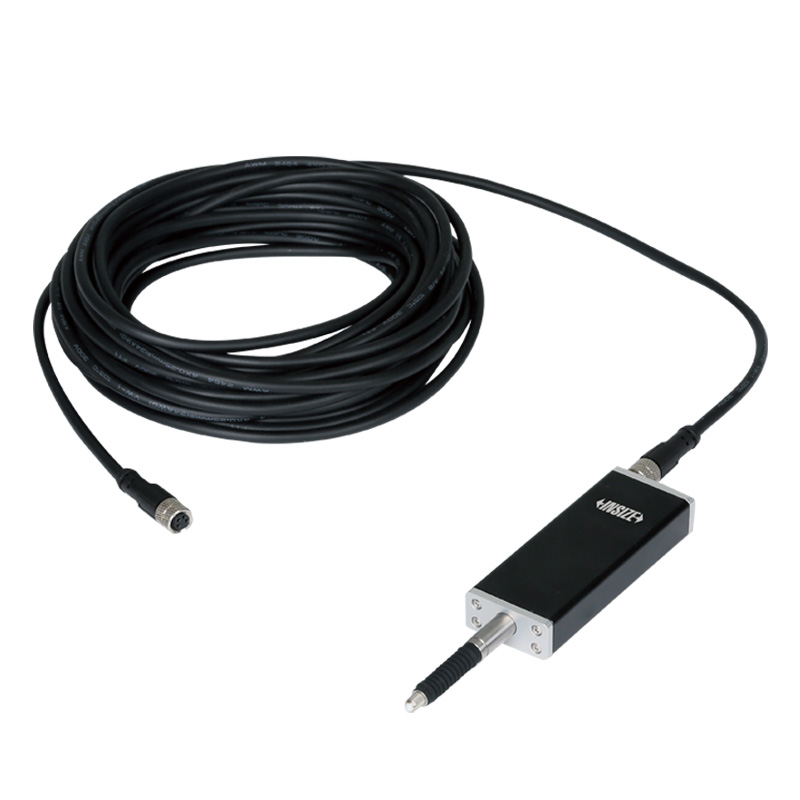

Capacitance Linear Gauges (Absolute Type)
Code: 7181
Absolute encoder, the original data remains after power off
Shock-proof, water proof, dust proof, suitable for high speed movement, long working life
Can be connected to display unit, or directly connected to computer or PLC
| Code | Type | Range | Accuracy | Driving type |
|---|---|---|---|---|
| 7181-41 | Capacitance | 10mm | 20µm | spring |
| 7181-51 | Capacitance | 30mm | 30µm | spring |
| 7181-61 | Capacitance | 50mm | 30µm | spring |
| 7181-42 | Capacitance | 10mm | 3µm | spring |
| 7181-41V | Capacitance | 10mm | 20µm | pneumatic |
| 7181-42V | Capacitance | 10mm | 3µm | pneumatic |
