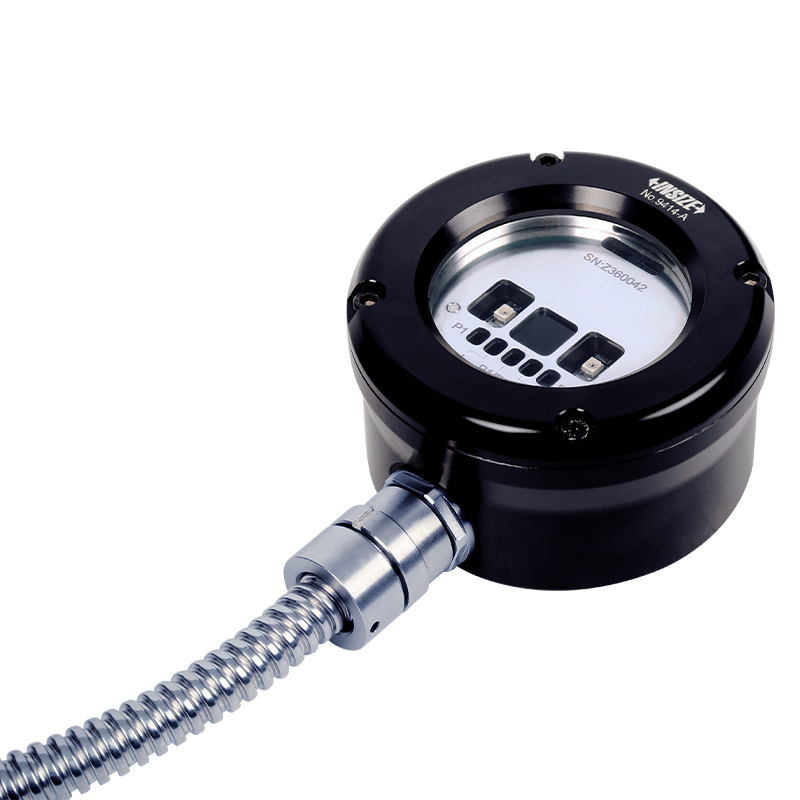

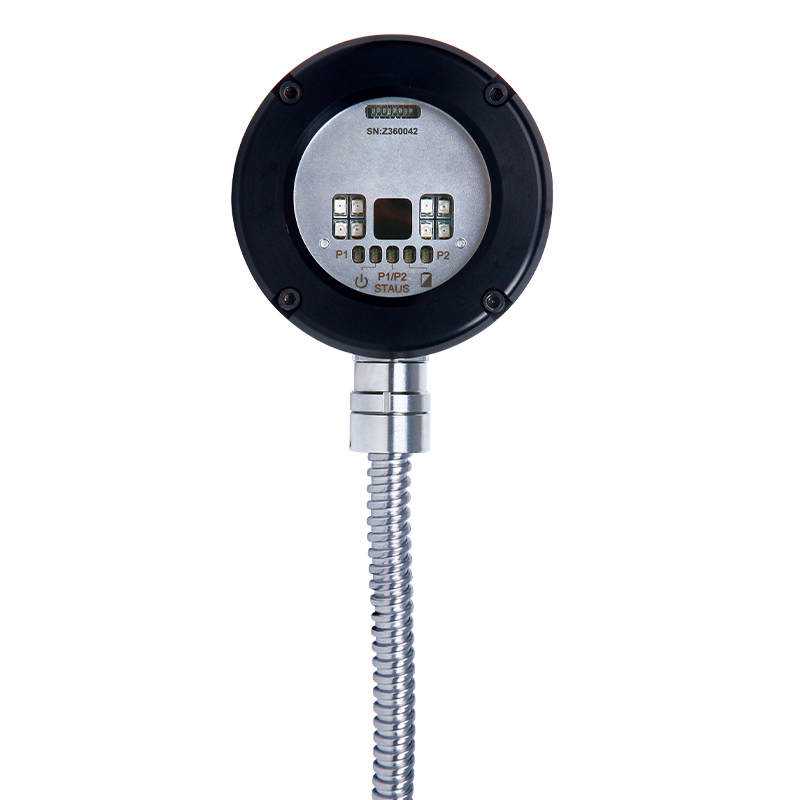

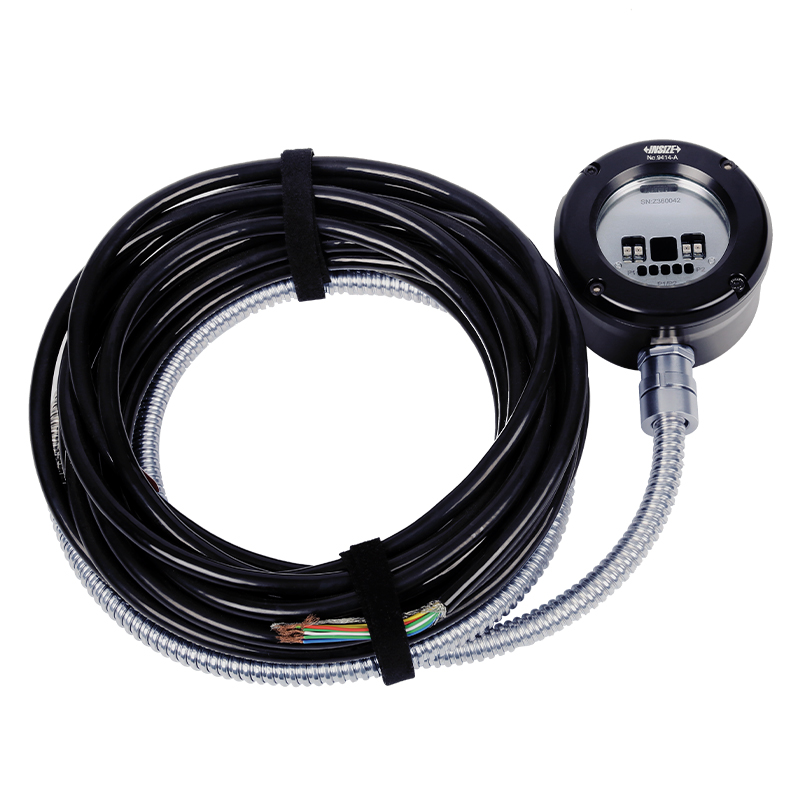

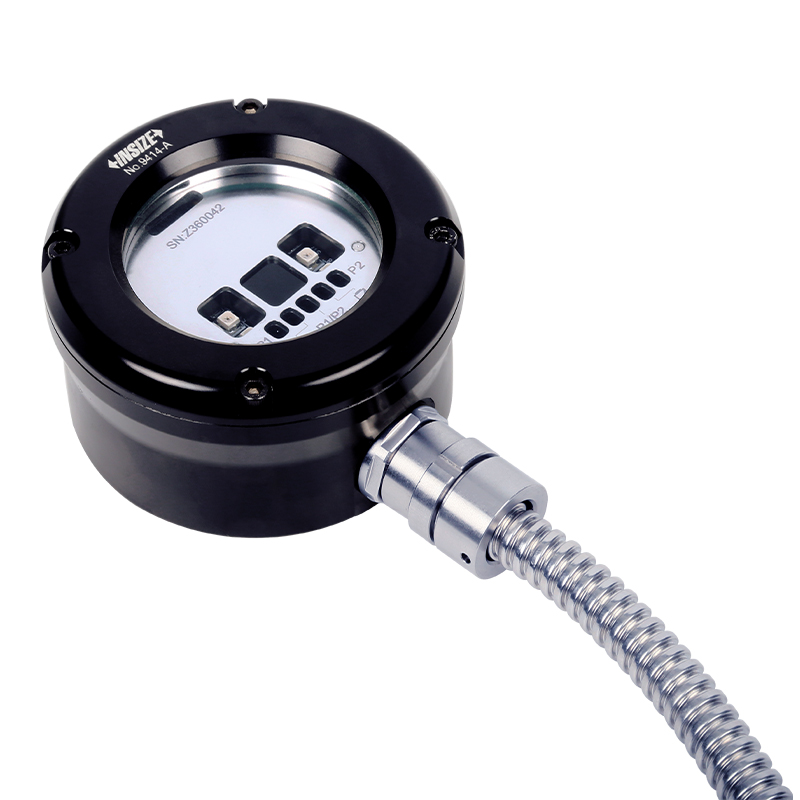

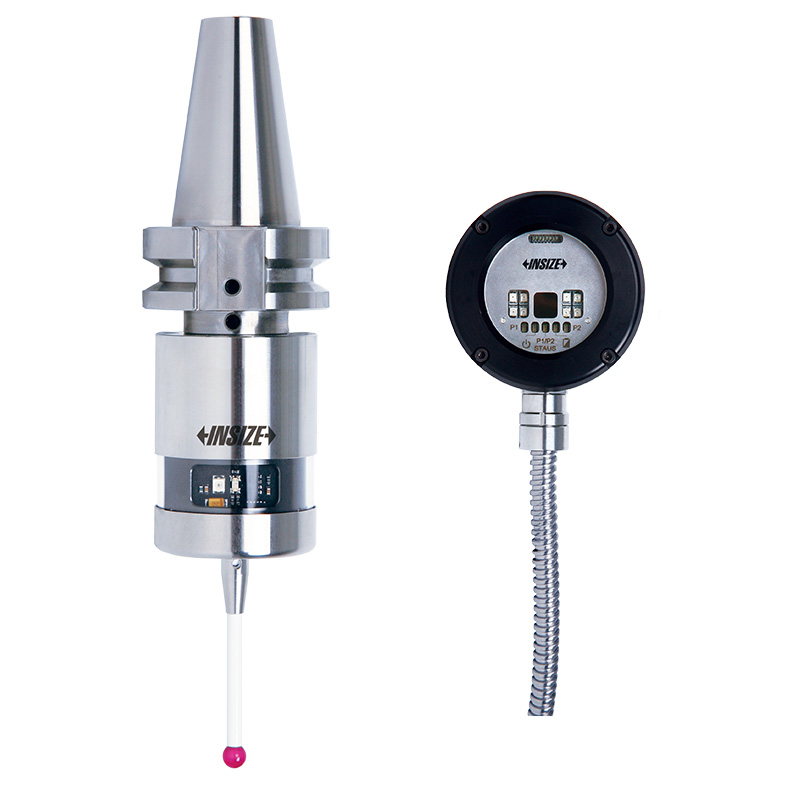

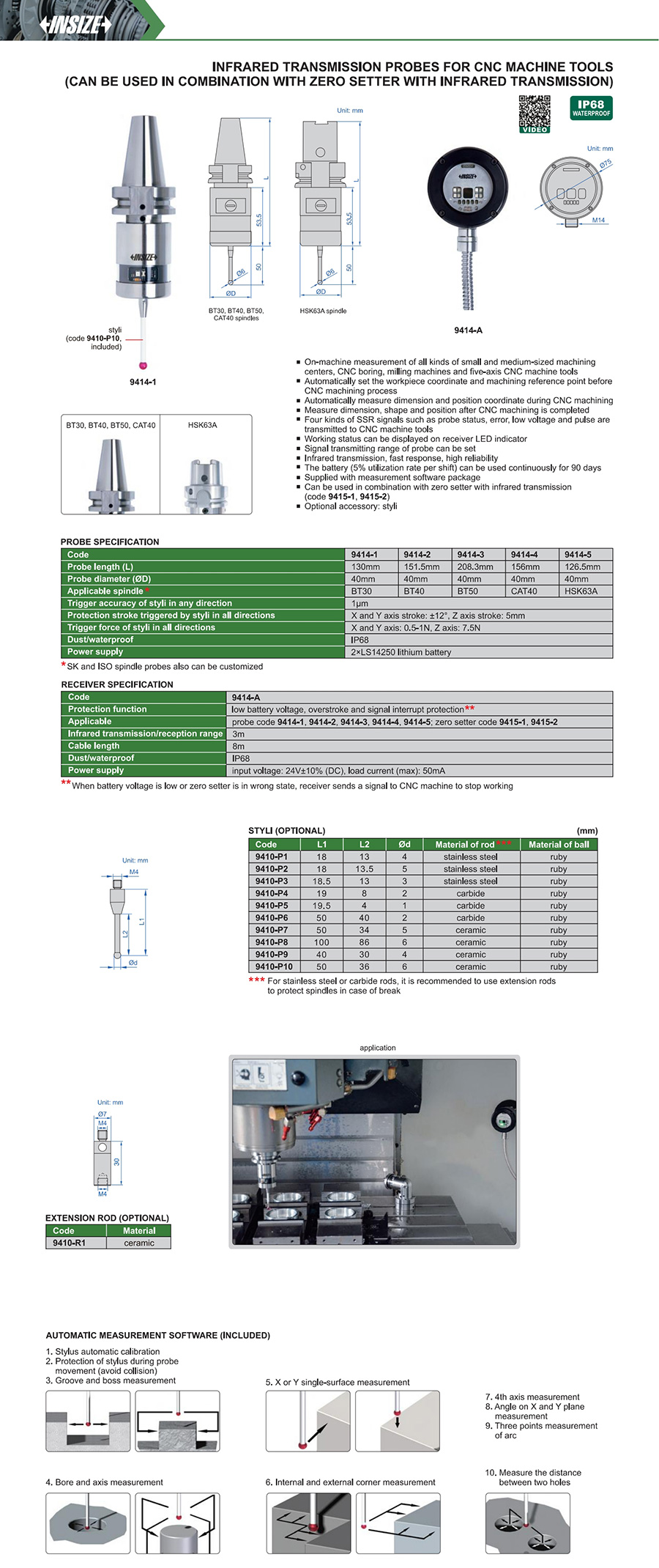

Infrared Transmission Probes for CNC Machine Tools (Can Be Used In Combination With Zero Setter With Infrared Transmission)
Code: 9414
On-machine measurement of all kinds of small and medium-sized machining centers, CNC boring, milling machines and five-axis CNC machine tools
Automatically set the workpiece coordinate and machining reference point before CNC machining process
Automatically measure dimension and position coordinate during CNC machining
Measure dimension, shape and position after CNC machining is completed
Four kinds of SSR signals such as probe status, error, low voltage and pulse are transmitted to CNC machine tools
Working status can be displayed on receiver LED indicator
| Code | Protection stroke | Trigger force | Applicable spindle | Trigger accuracy |
|---|---|---|---|---|
| 9414-1 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: 0.5-1N, Z axis: 7.5N | BT30 | 1µm |
| 9414-2 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: 0.5-1N, Z axis: 7.5N | BT40 | 1µm |
| 9414-3 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: 0.5-1N, Z axis: 7.5N | BT50 | 1µm |
| 9414-4 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: 0.5-1N, Z axis: 7.5N | CAT40 | 1µm |
| 9414-5 | X and Y axis stroke: ±12°, Z axis stroke: 5mm | X and Y axis: 0.5-1N, Z axis: 7.5N | HSK63A | 1µm |
