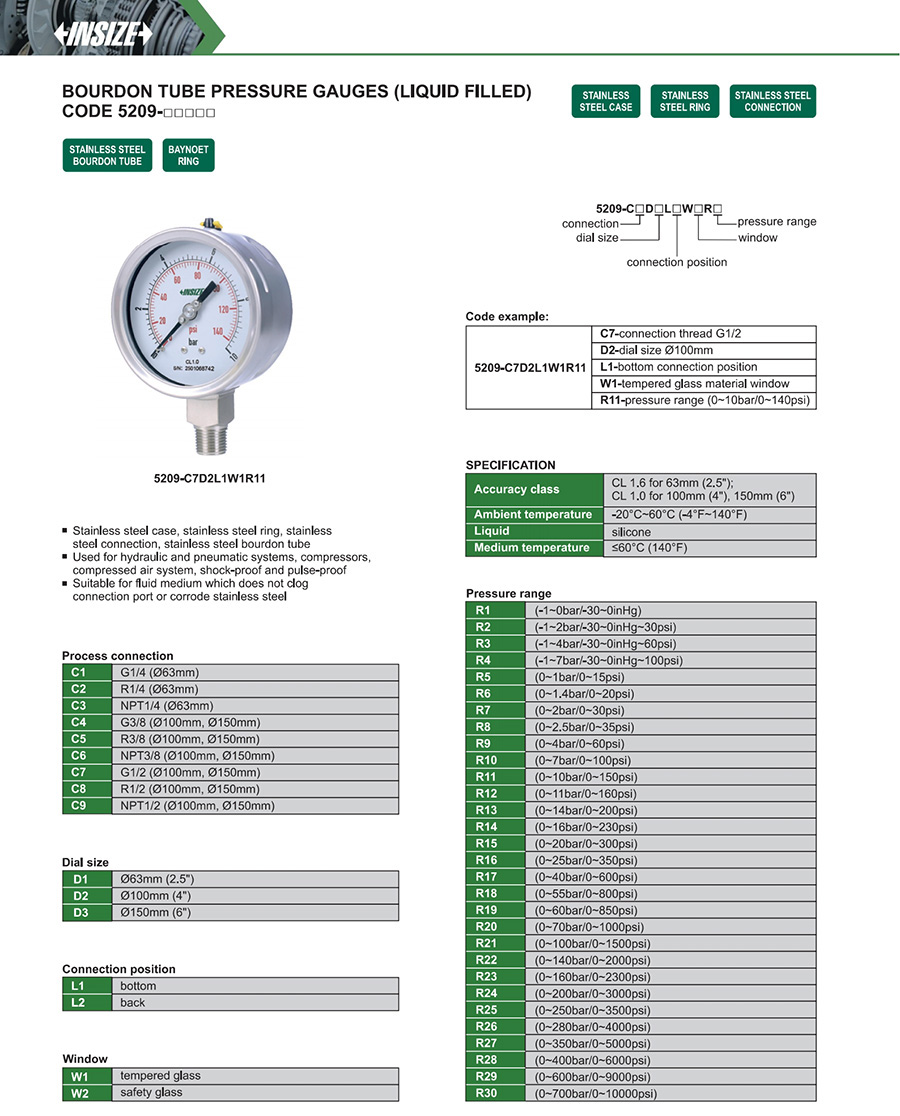

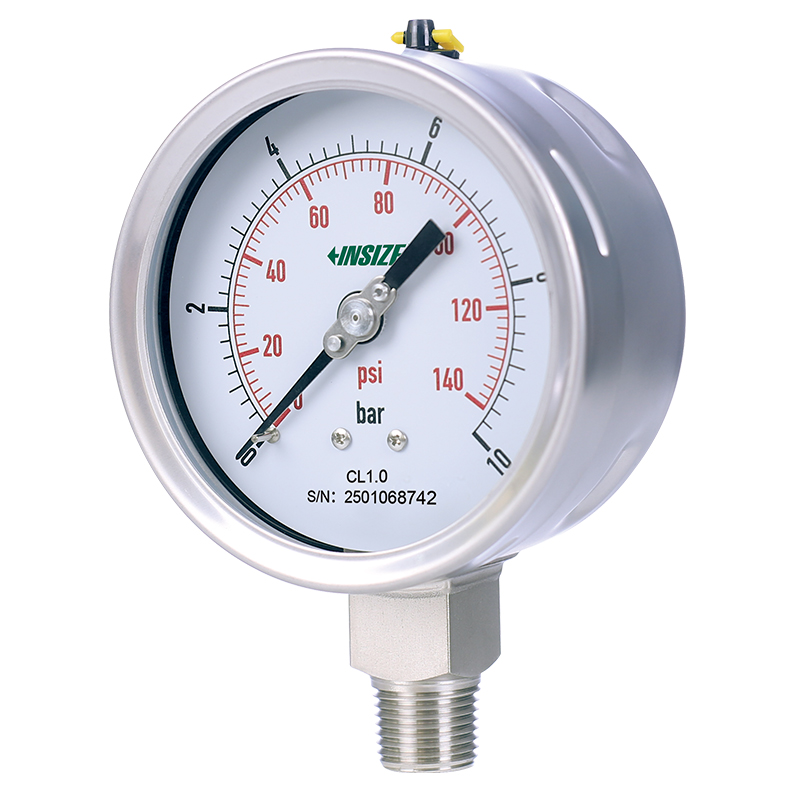

Bourdon Tube Pressure Gauges (Liquid Filled)
Code: 5209-□□□□□
Stainless steel case, stainless steel ring, stainless steel connection, stainless steel bourdon tube
Used for hydraulic and pneumatic systems, compressors, compressed air system, shock-proof and pulse-proof
Suitable for fluid medium which does not clog connection port or corrode stainless steel
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5209-□□□□□ | G1/4, R1/4, NPT1/4, G3/8, R3/8, NPT3/8, G1/2, R1/2, NPT1/2 | Ø63mm, Ø100mm, Ø150mm | bottom, back | tempered glass, safety glass |
