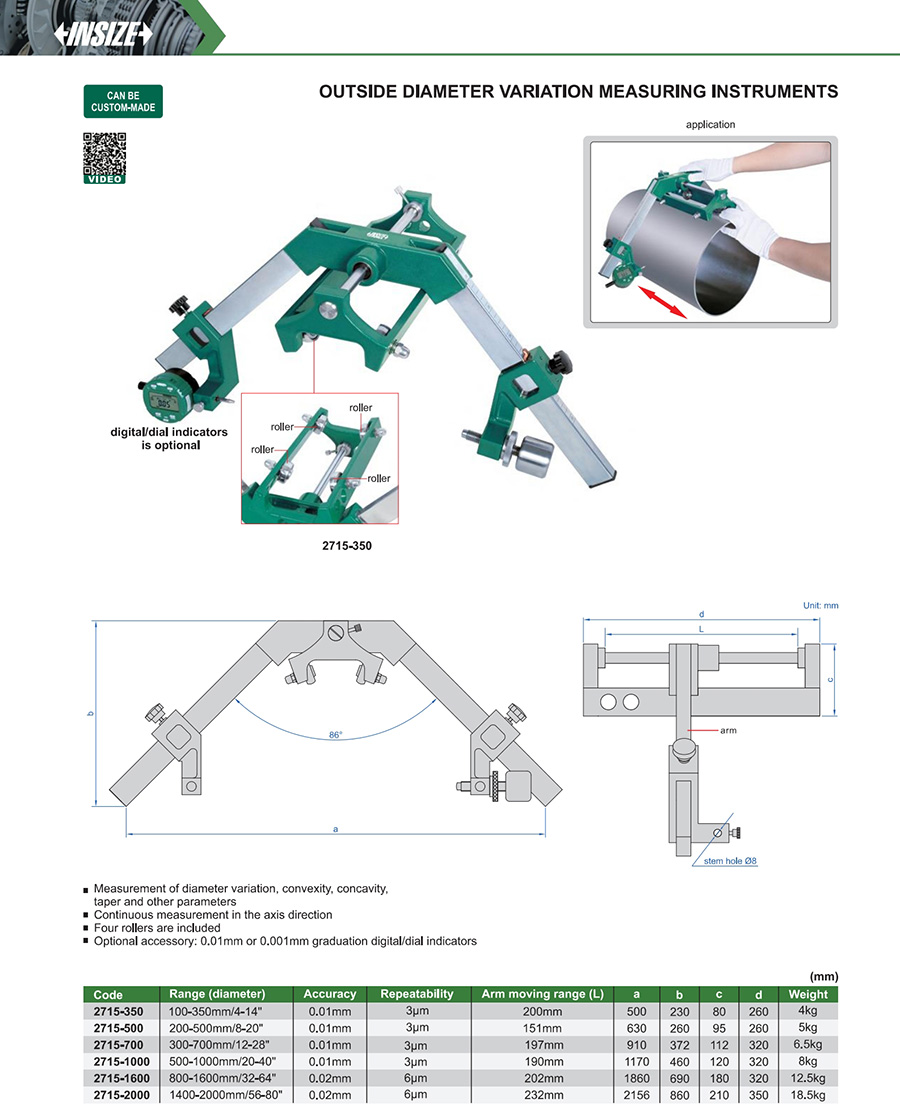

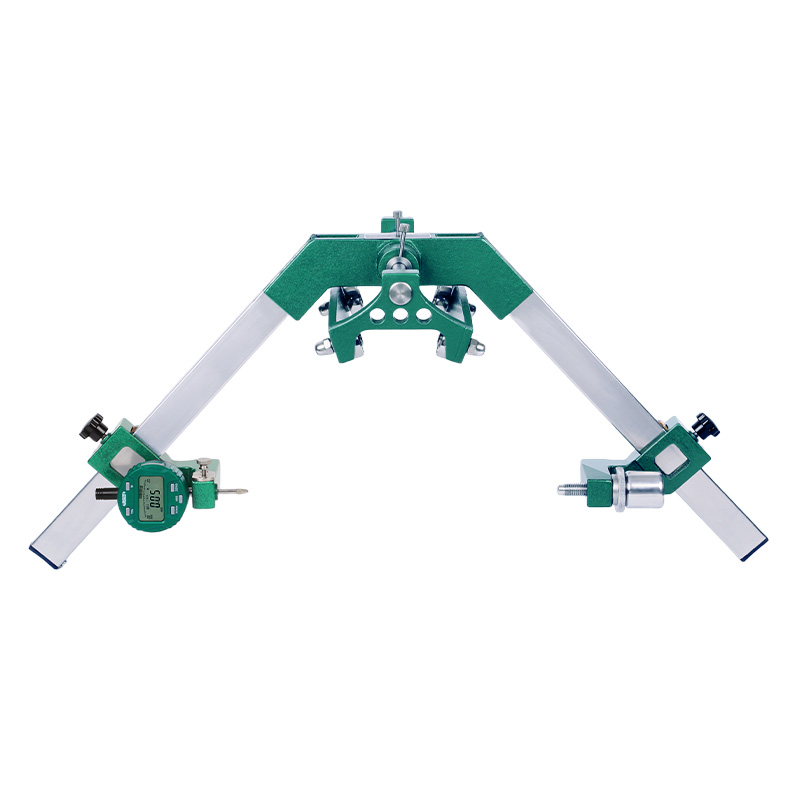

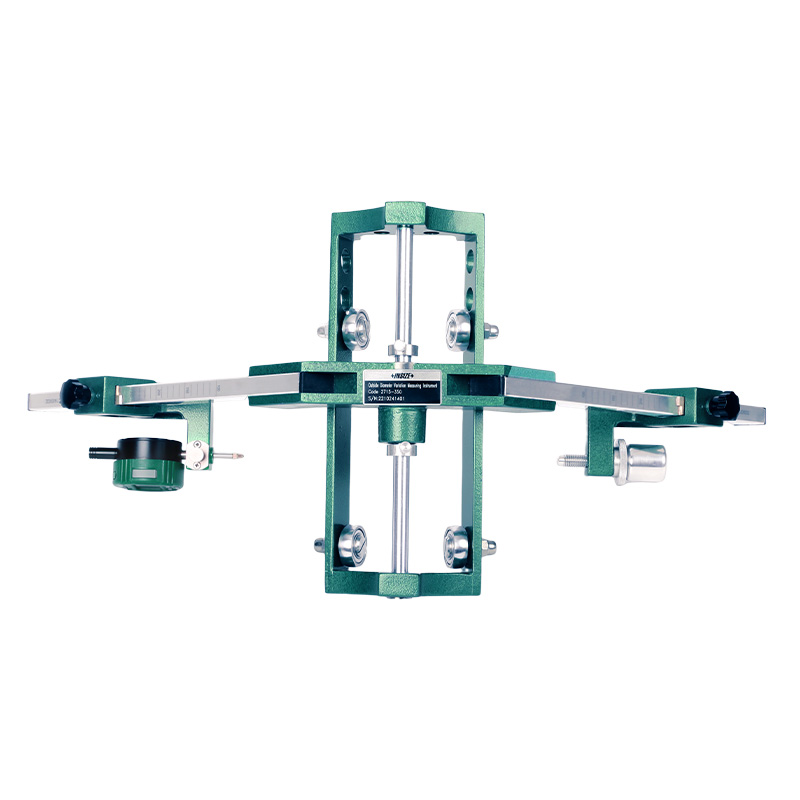

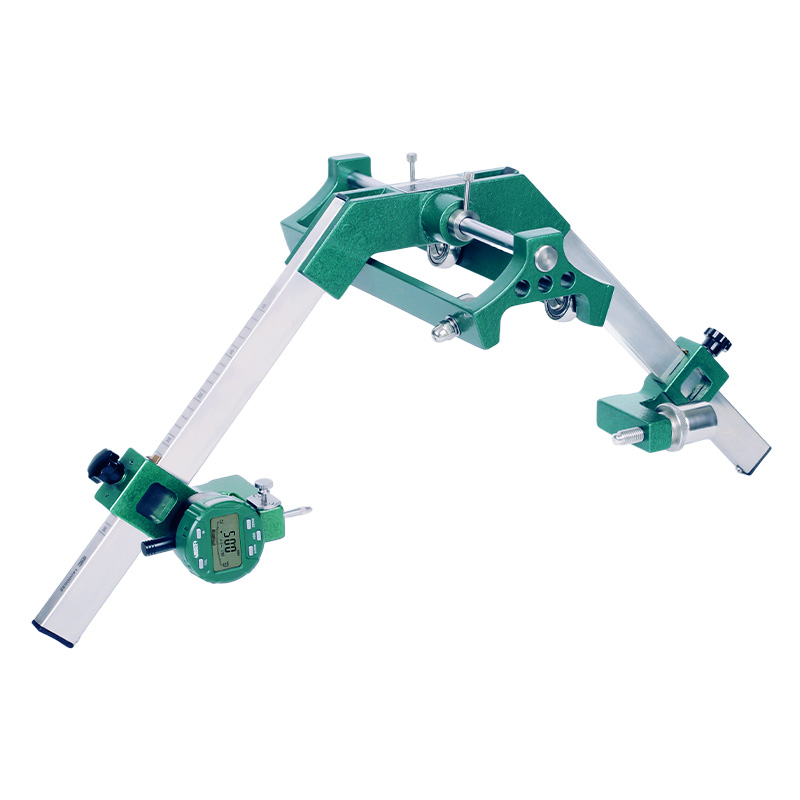

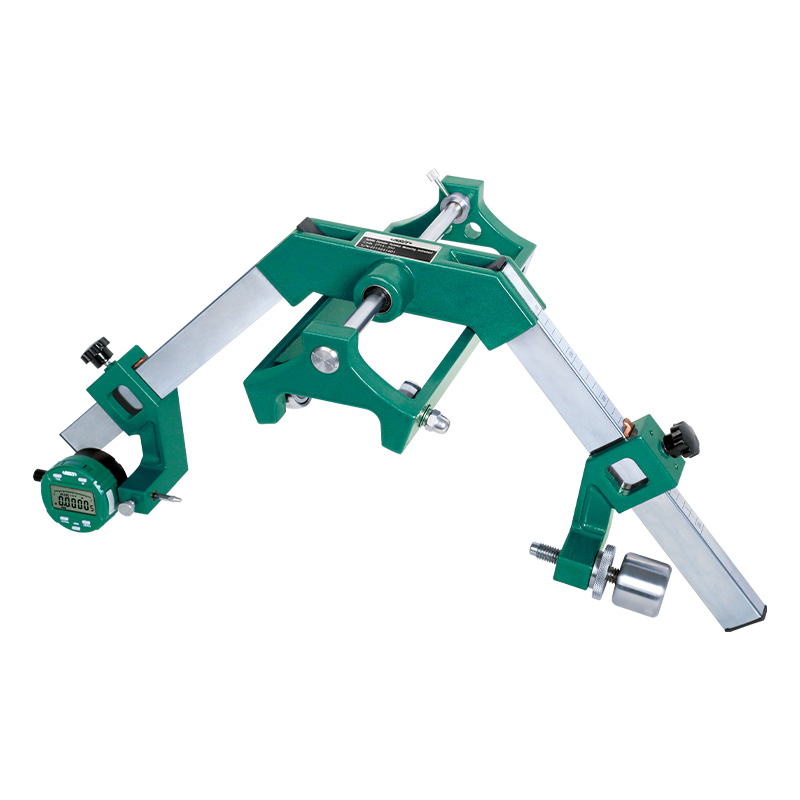

Outside Diameter Variation Measuring Instruments
Code: 2715
Measurement of diameter variation, convexity, concavity, taper and other parameters
Continuous measurement in the axis direction
Four rollers are included
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2715-350 | 100-350mm/4-14" | 0.01mm | 3µm |
| 2715-500 | 200-500mm/8-20" | 0.01mm | 3µm |
| 2715-700 | 300-700mm/12-28" | 0.01mm | 3µm |
| 2715-1000 | 500-1000mm/20-40" | 0.01mm | 3µm |
| 2715-1600 | 800-1600mm/32-64" | 0.02mm | 6µm |
| 2715-2000 | 1400-2000mm/56-80" | 0.02mm | 6µm |
