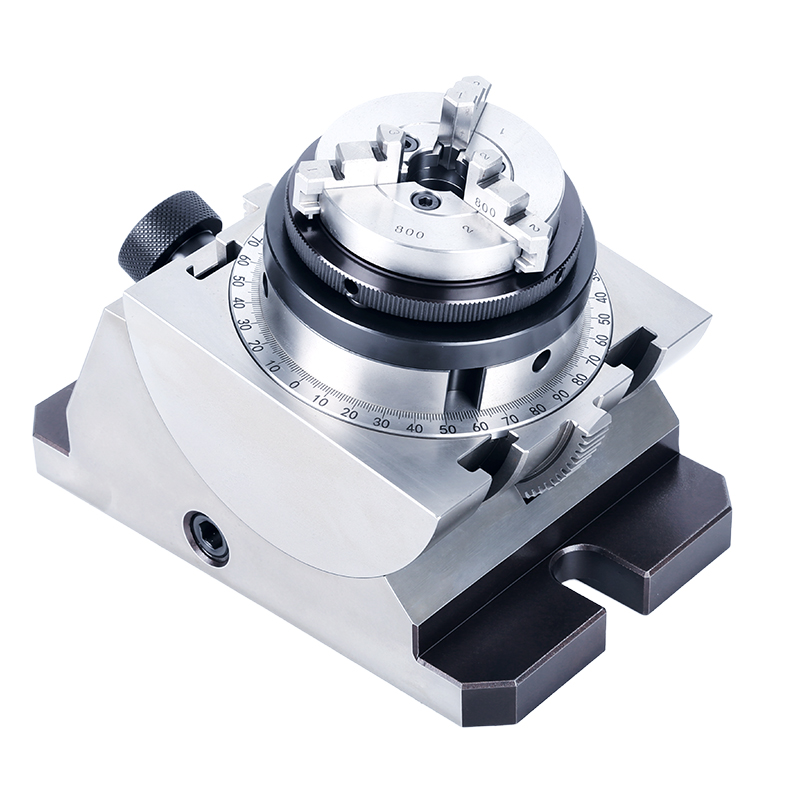

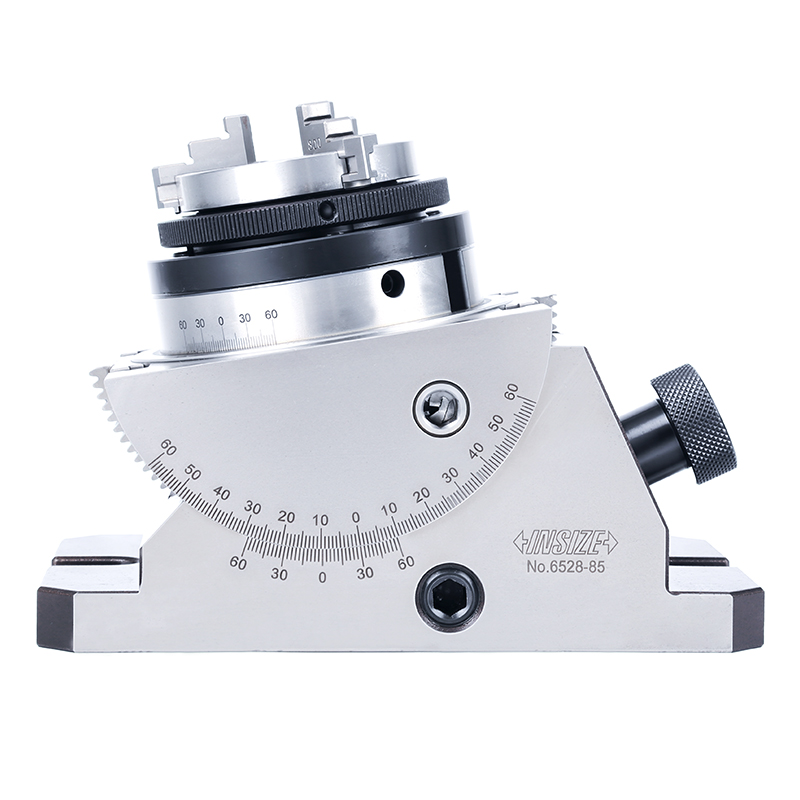

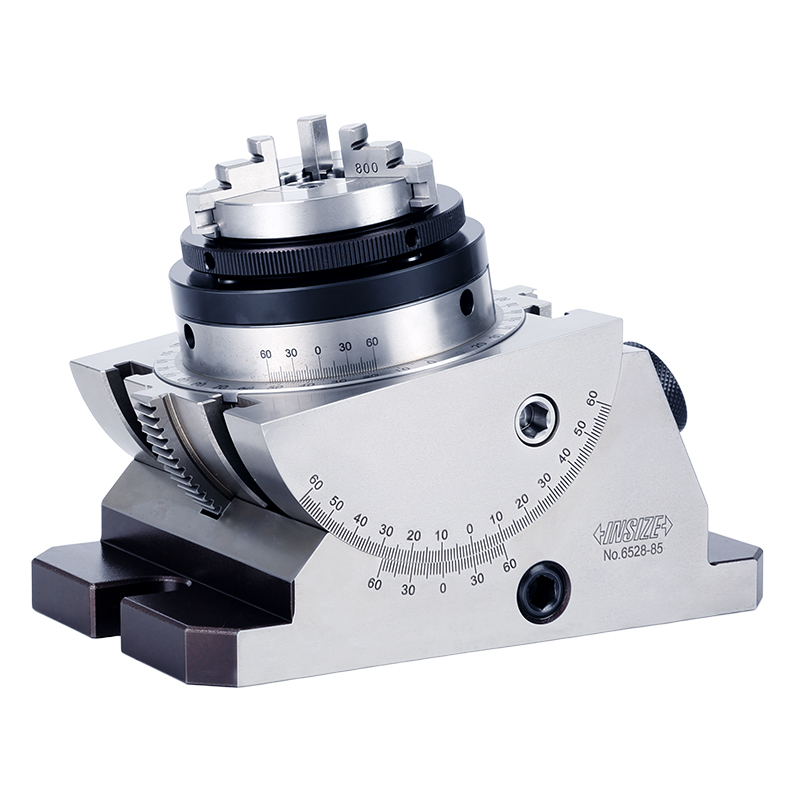

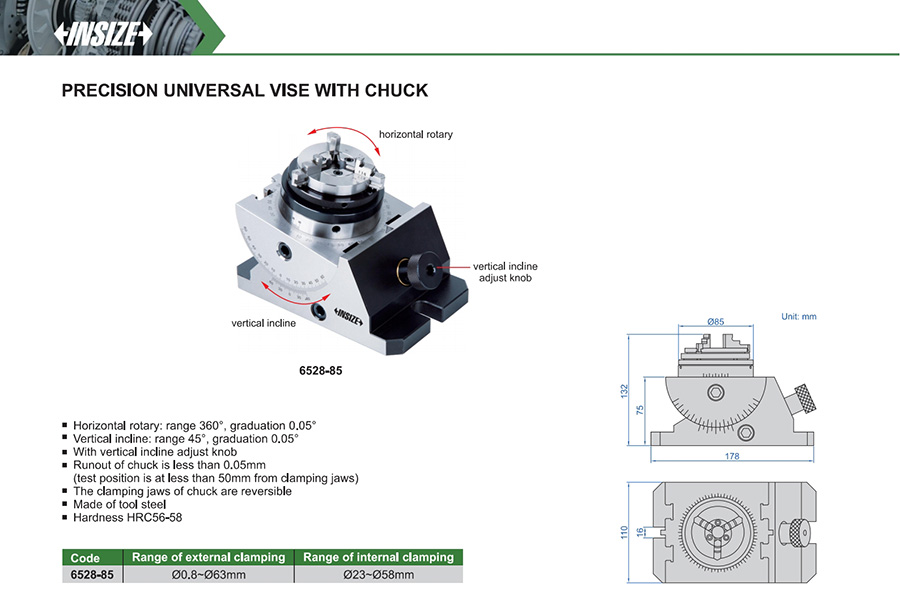

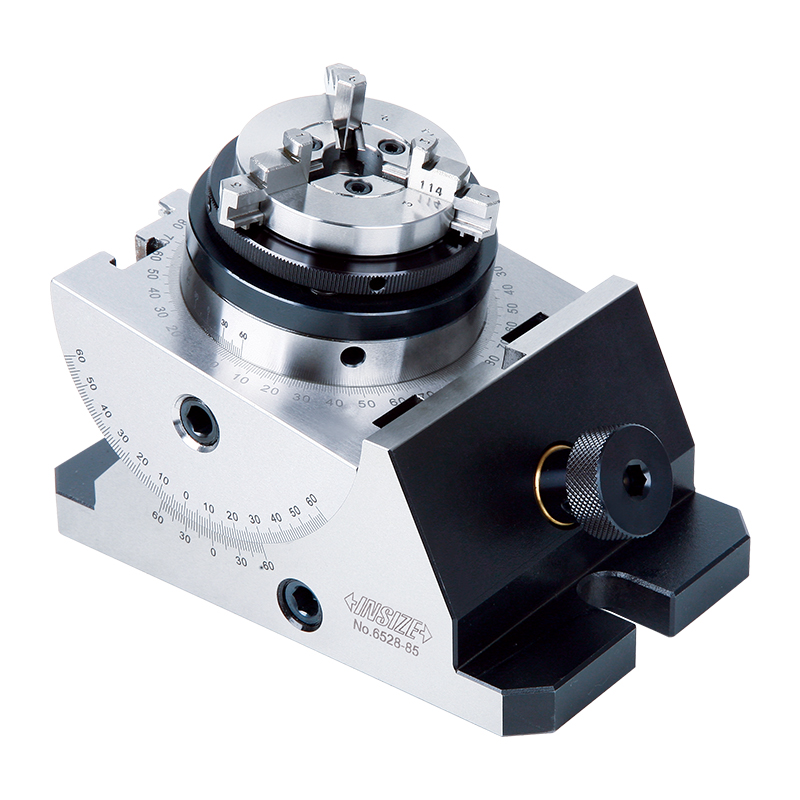

Precision Universal Vise With Chuck
Code: 6528-85
Horizontal rotary: range 360°, graduation 0.05°
Vertical incline: range 45°, graduation 0.05°
With vertical incline adjust knob
Runout of chuck is less than 0.05mm (test position is at less than 50mm from clamping jaws)
The clamping jaws of chuck are reversible
| Code | Graduation | Range of external clamping | Range of internal clamping |
|---|---|---|---|
| 6528-85 | 0.05° | Ø0.8~Ø63mm | Ø23~Ø58mm |
