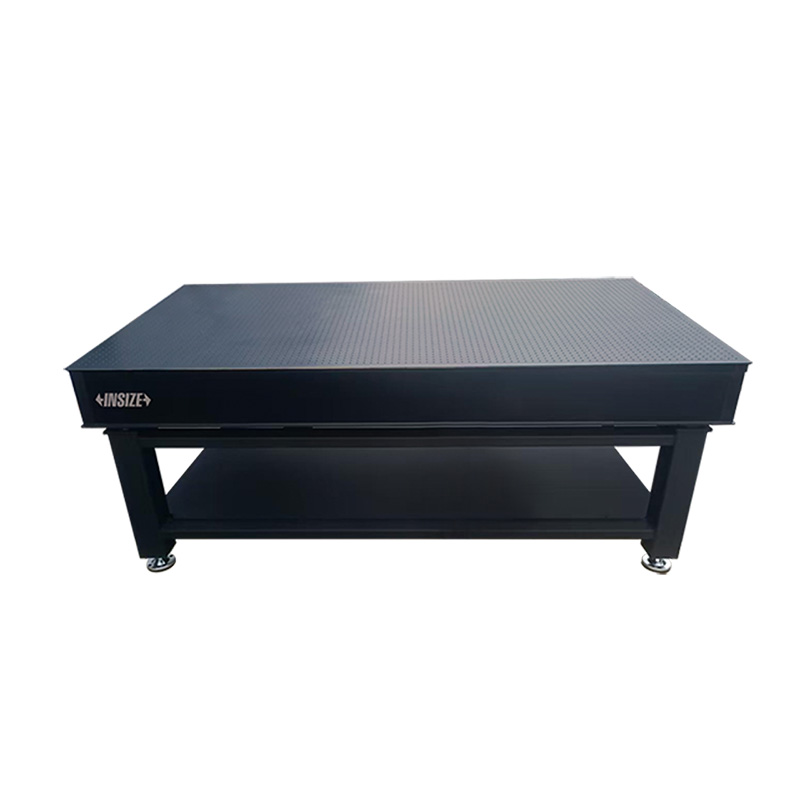

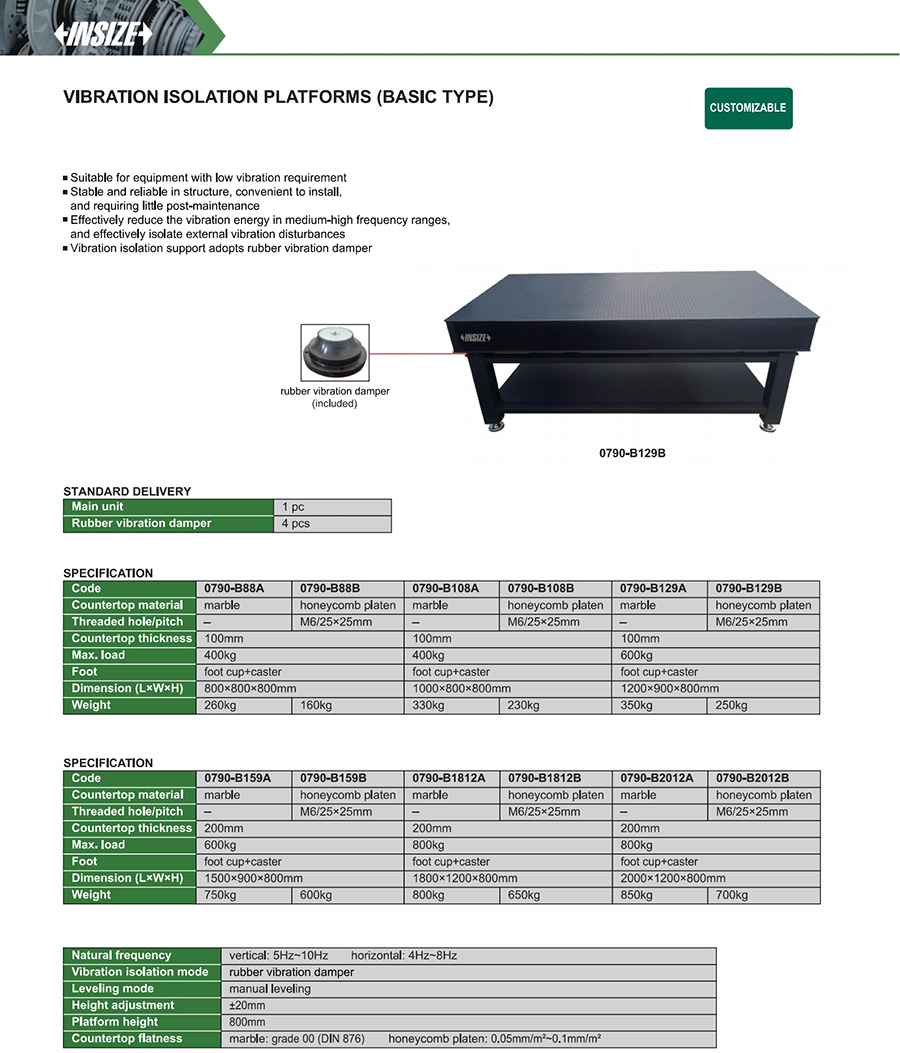

Vibration Isolation Platforms (Basic Type)
Code: 0790-B
Suitable for equipment with low vibration requirement
Stable and reliable in structure, convenient to install, and requiring little post-maintenance
Effectively reduce the vibration energy in medium-high frequency ranges, and effectively isolate external vibration disturbances
Vibration isolation support adopts rubber vibration damper
| Code | Dimension (L×W×H) | Material | Max. load |
|---|---|---|---|
| 0790-B88A | 800×800×800mm | marble | 400kg |
| 0790-B88B | 800×800×800mm | honeycomb platen | 400kg |
| 0790-B108A | 1000×800×800mm | marble | 400kg |
| 0790-B108B | 1000×800×800mm | honeycomb platen | 400kg |
| 0790-B129A | 1200×900×800mm | marble | 600kg |
| 0790-B129B | 1200×900×800mm | honeycomb platen | 600kg |
| 0790-B159A | 1500×900×800mm | marble | 600kg |
| 0790-B159B | 1500×900×800mm | honeycomb platen | 600kg |
| 0790-B1812A | 1800×1200×800mm | marble | 800kg |
| 0790-B1812B | 1800×1200×800mm | honeycomb platen | 800kg |
| 0790-B2012A | 2000×1200×800mm | marble | 800kg |
| 0790-B2012B | 2000×1200×800mm | honeycomb platen | 800kg |
