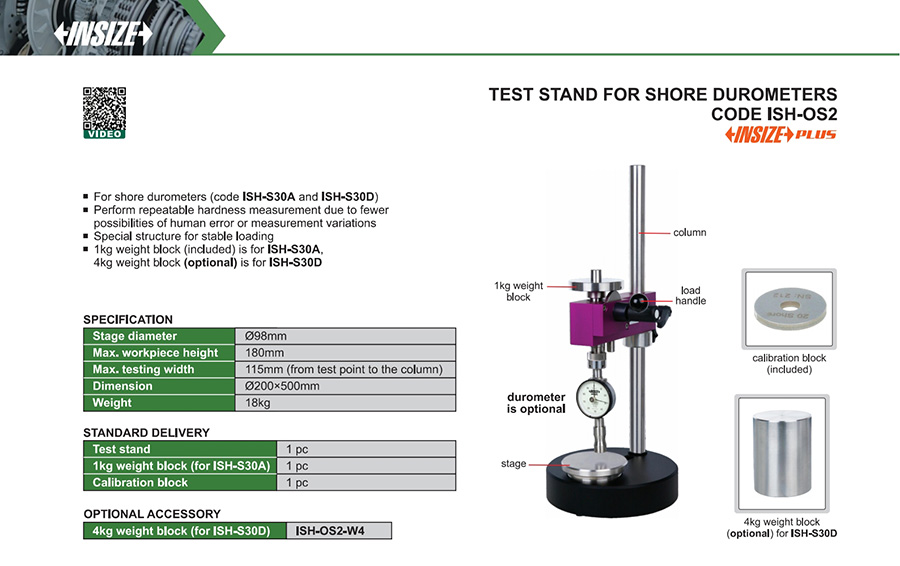

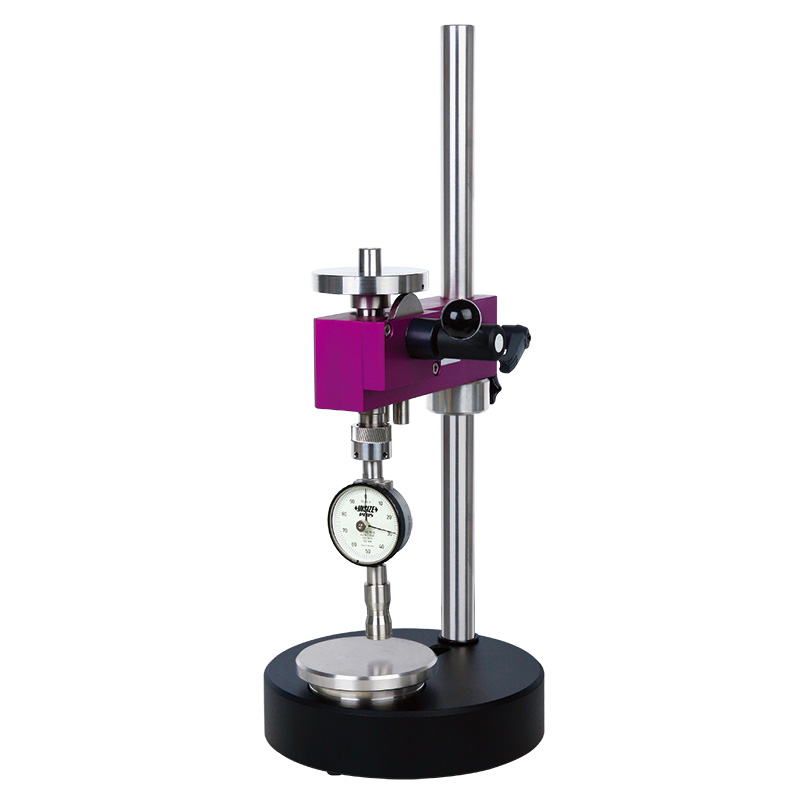

Test Stand For Shore Durometers
Code: ISH-OS2
For shore durometers (code ISH-S30A and ISH-S30D)
Perform repeatable hardness measurement due to fewer possibilities of human error or measurement variations
Special structure for stable loading
1kg weight block (included) is for ISH-S30A, 4kg weight block (optional) is for ISH-S30D
| Code | Max. workpiece height | Max. testing width | Stage diameter |
|---|---|---|---|
| ISH-OS2 | 180mm | 115mm (from test point to the column) | Ø98mm |
