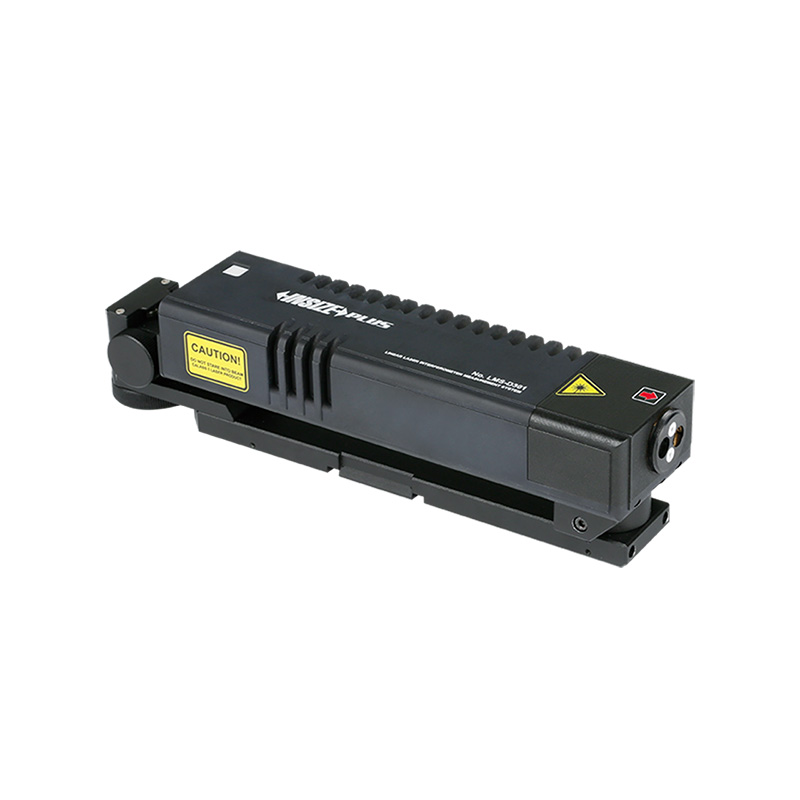

Linear Laser Interferometer Measurement System
Code: LMS-D301
Fixed-frequency helium-neon laser, with a resolution of up to 100 pm (0.1nm)
High frequency architecture design, max measurable velocity up to ± 7m/s
Built-in alignment tools indicator for the laser head, it shows the pitch and yaw angles, it helps to reduce setup time
Laser head with magnetic base that can be mounted inside the unit to reduce mounting constraints
| Code | Accuracy | Long term stability | Maxinum axis length |
|---|---|---|---|
| LMS-D301 | Wavelength:±0.005ppm | ±0.001ppm | 0~80m (optional LMS-D-LR) |
