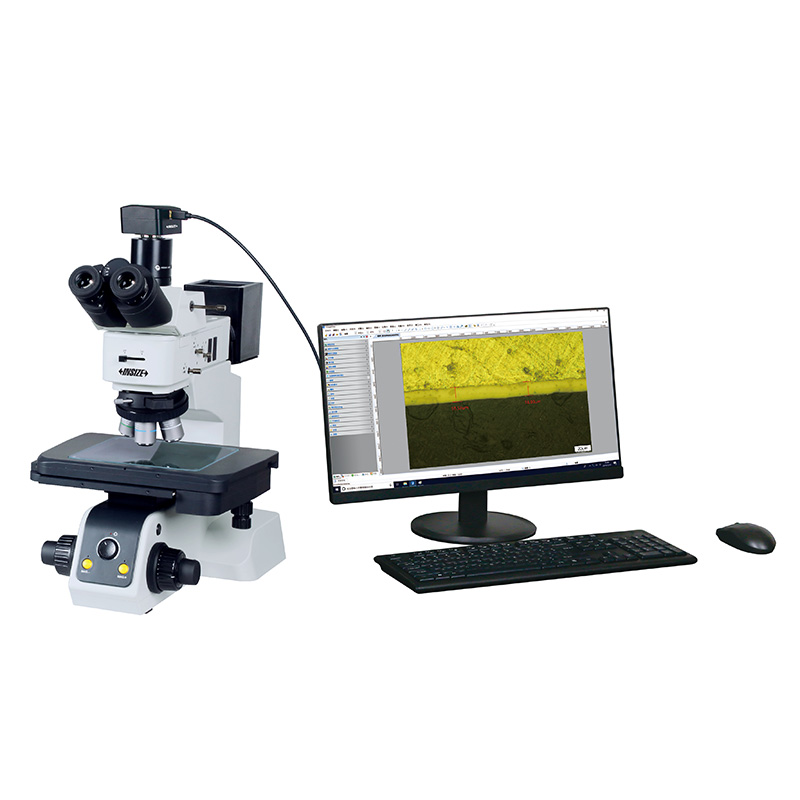

Coating/Film Thickness Measurement Systems
Code: MTF-Y430
Suitable for measuring the thickness of various coatings or multi-layer composite films, with a wide measurement range
High accuracy with intuitive measurement judgment, applicable for verification and arbitration amid disputes over results from other thickness measurement methods
Capable of analyzing the quality of coatings and identifying the causes of defects (such as pores, cracks, inclusions, peeling, etc.)
High precision and good repeatability, generally used for strict thickness control
| Code | Resolution | Magnification | Pixel |
|---|---|---|---|
| MTF-Y430 (standard type) | 3072×2048 | Optical magnification: 50X~500X (up to 1000X with optional 100X objective) | 6.3M |
| MTF-Y430H (high-definition type) | 3072×2048 | Optical magnification: 50X~500X (up to 1000X with optional 100X objective) | 6.3M |
