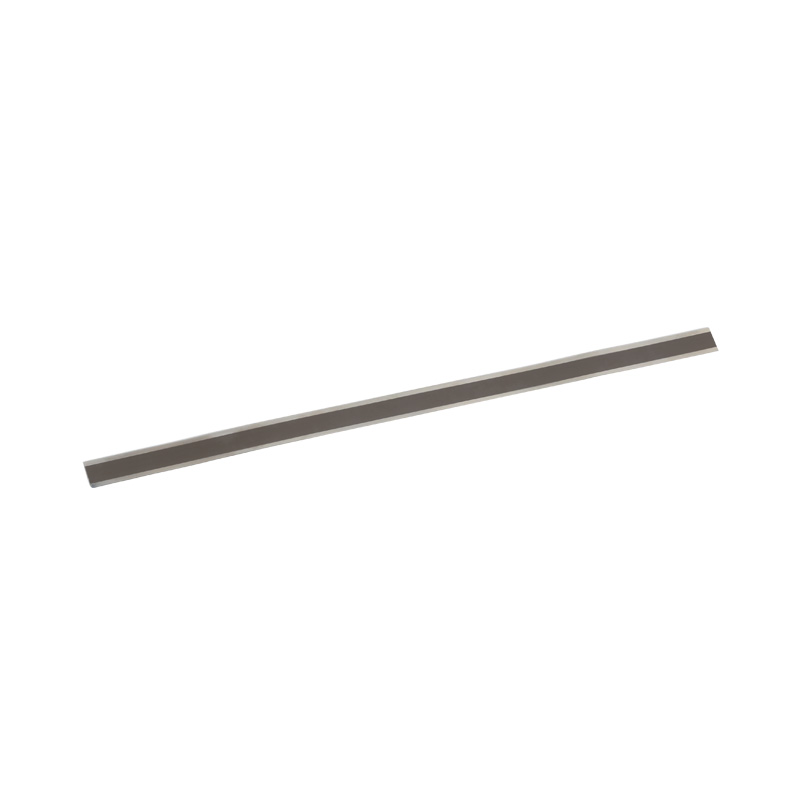

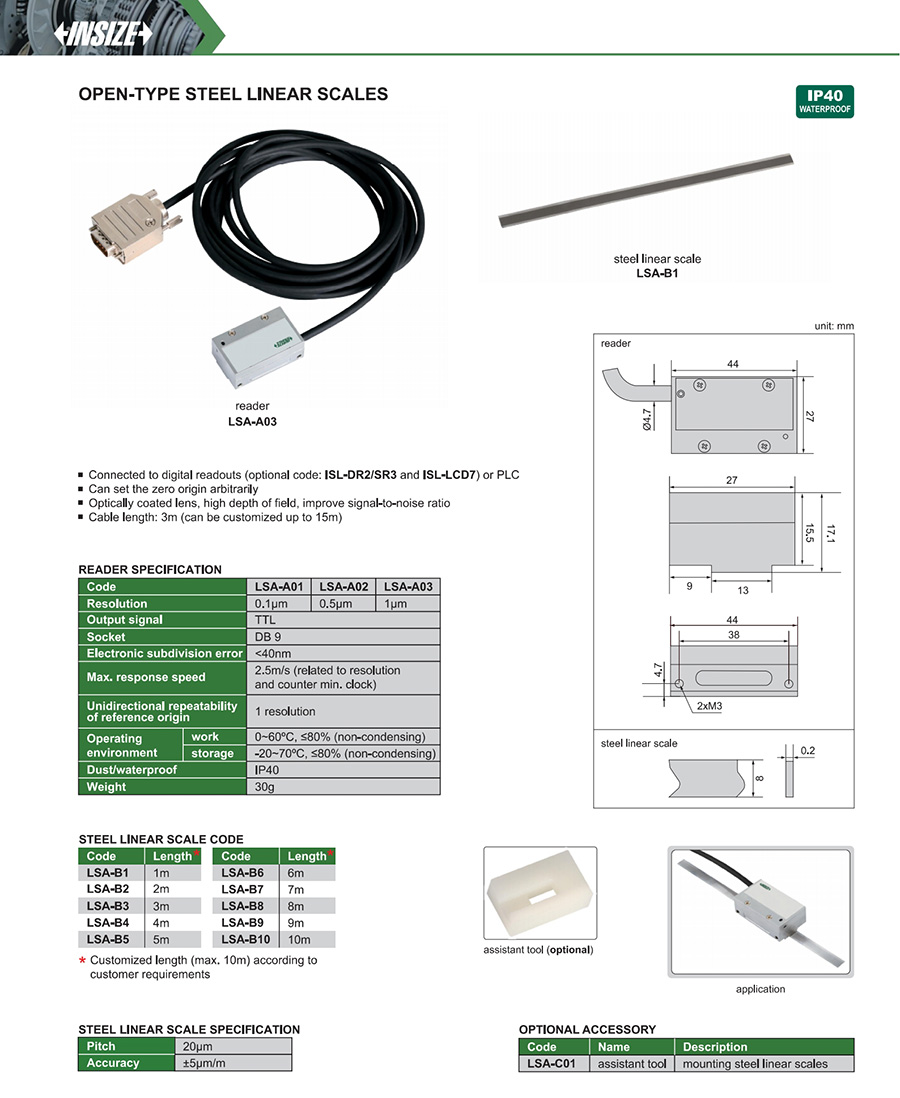

Open-Type Steel Linear Scales
Code: LSA-A Series
Connected to digital readouts (optional code: ISL-DR2/SR3 and ISL-LCD7) or PLC
Can set the zero origin arbitrarily
Optically coated lens, high depth of field, improve signal-to-noise ratio
Cable length: 3m (can be customized up to 15m)
| Code | Resolution | Output signal | Max. response speed |
|---|---|---|---|
| LSA-A01 | 0.1µm | TTL | 2.5m/s |
| LSA-A02 | 0.5µm | TTL | 2.5m/s |
| LSA-A03 | 1µm | TTL | 2.5m/s |
