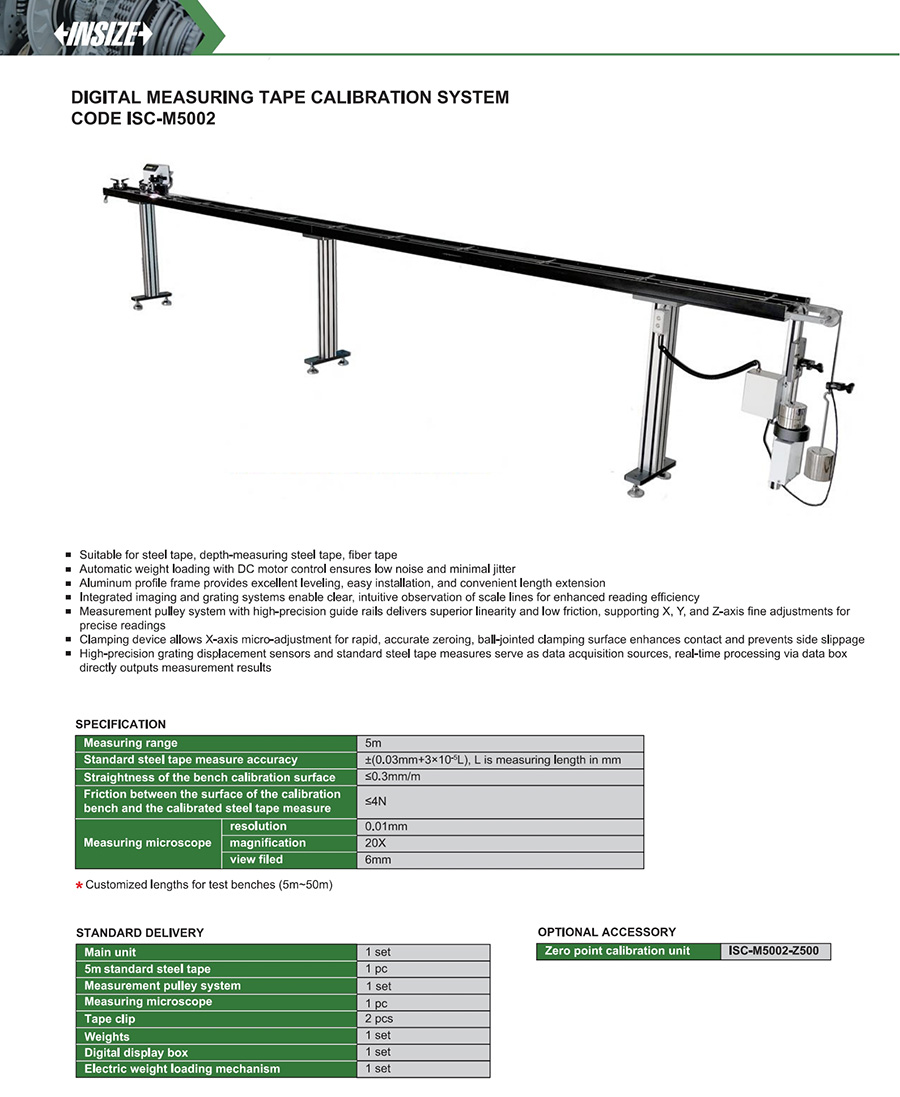

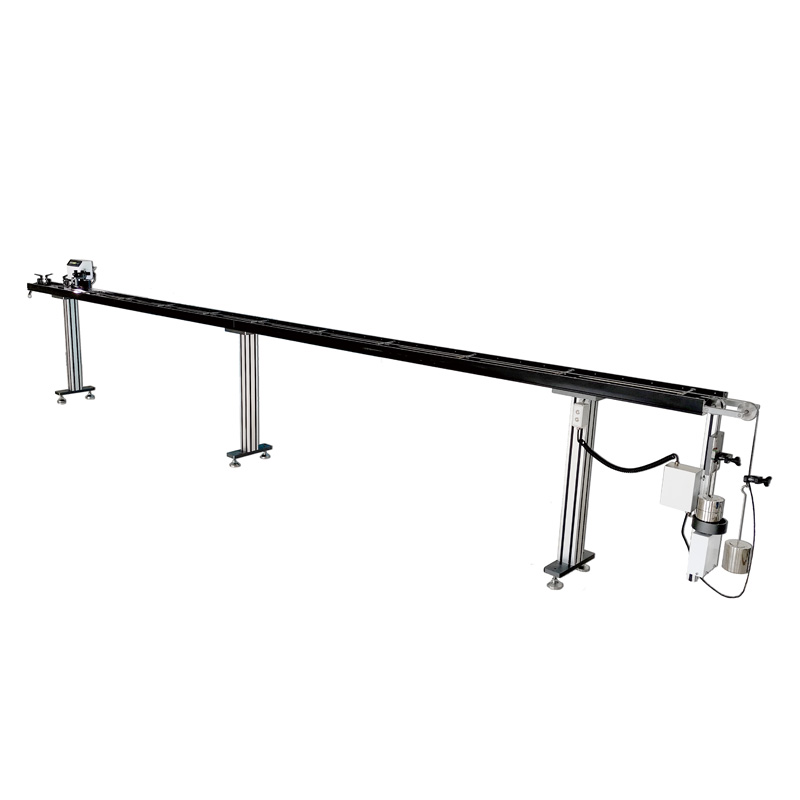

Digital Measuring Tape Calibration System

Suitable for steel tape, depth-measuring steel tape, fiber tape

Automatic weight loading with DC motor control ensures low noise and minimal jitter

Aluminum profile frame provides excellent leveling, easy installation, and convenient length extension

Integrated imaging and grating systems enable clear, intuitive observation of scale lines for enhanced reading efficiency

Measurement pulley system with high-precision guide rails delivers superior linearity and low friction, supporting X, Y, and Z-axis fine adjustments for precise readings

Clamping device allows X-axis micro-adjustment for rapid, accurate zeroing, ball-jointed clamping surface enhances contact and prevents side slippage

High-precision grating displacement sensors and standard steel tape measures serve as data acquisition sources, real-time processing via data box directly outputs measurement results
