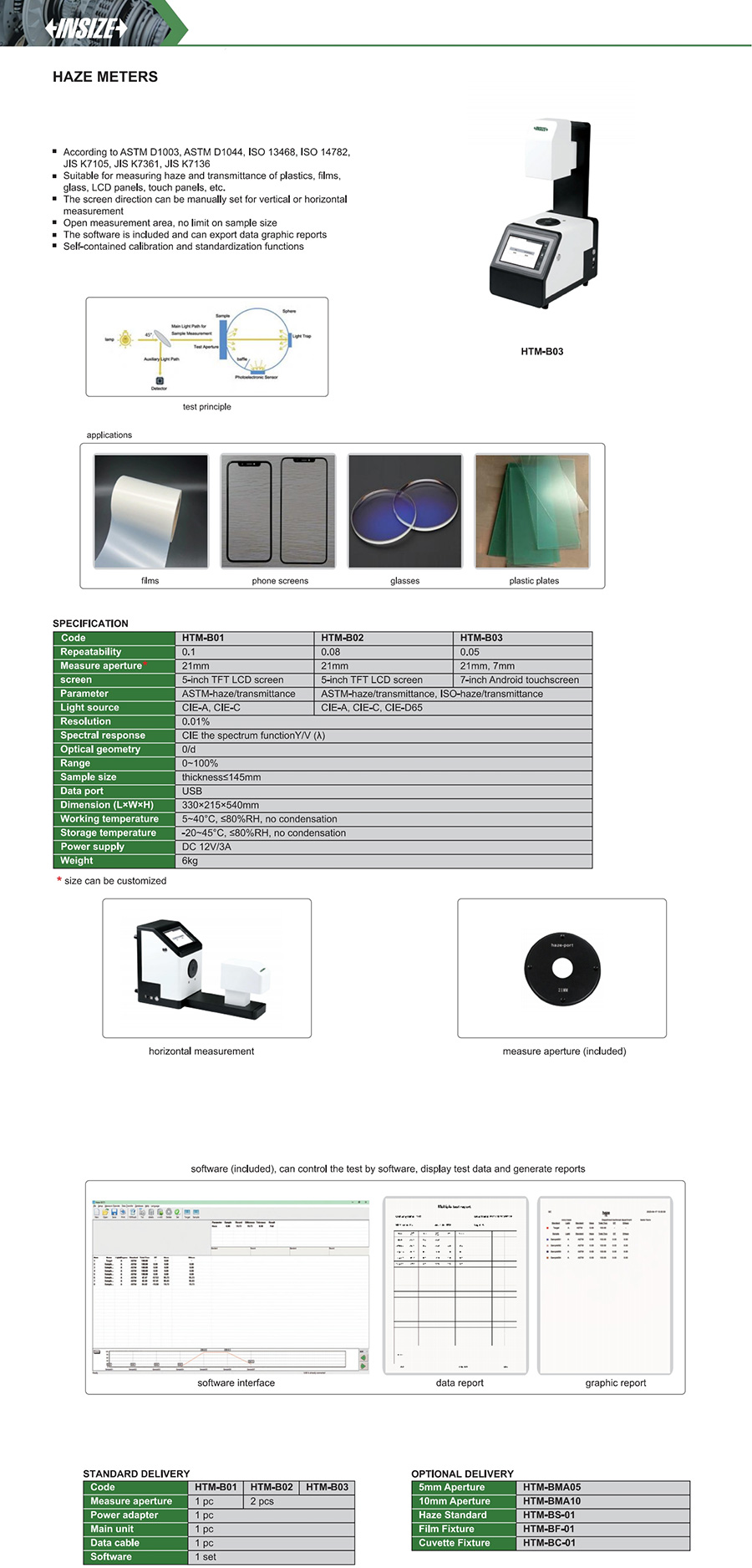

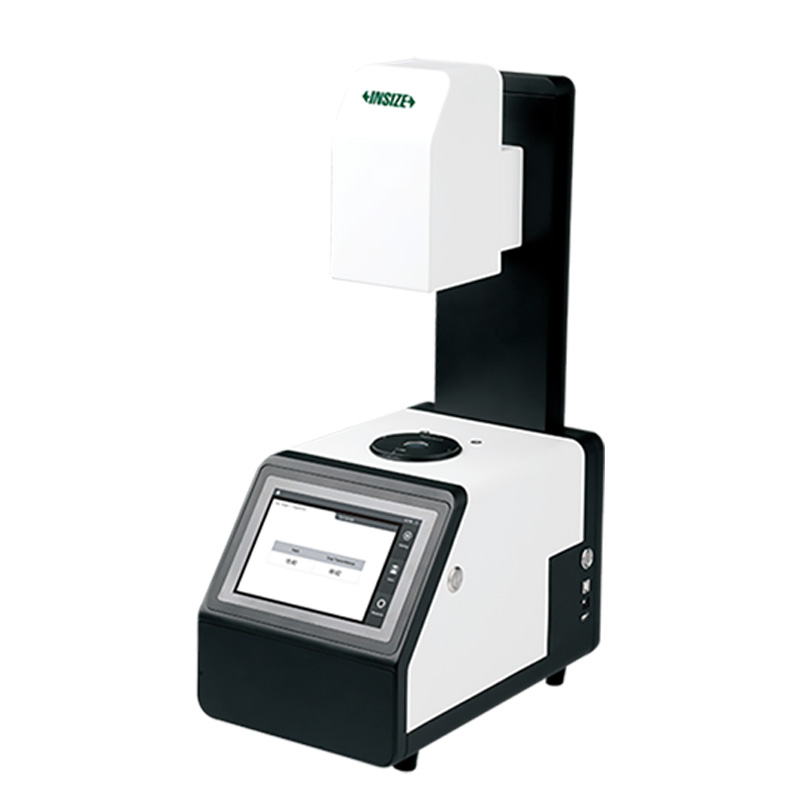

Haze Meters
Code: HTM-B series
According to ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, JIS K7105, JIS K7361, JIS K7136
Suitable for measuring haze and transmittance of plastics, films, glass, LCD panels, touch panels, etc.
The screen direction can be manually set for vertical or horizontal measurement
Open measurement area, no limit on sample size
The software is included and can export data graphic reports
| Code | Parameter | Light source | Measure aperture |
|---|---|---|---|
| HTM-B01 | ASTM-haze/transmittance | CIE-A， CIE-C | 21mm |
| HTM-B02 | ASTM-haze/transmittance， ISO-haze/transmittance | CIE-A， CIE-C， CIE-D65 | 21mm |
| HTM-B03 | ASTM-haze/transmittance， ISO-haze/transmittance | CIE-A， CIE-C， CIE-D65 | 21mm， 7mm |
