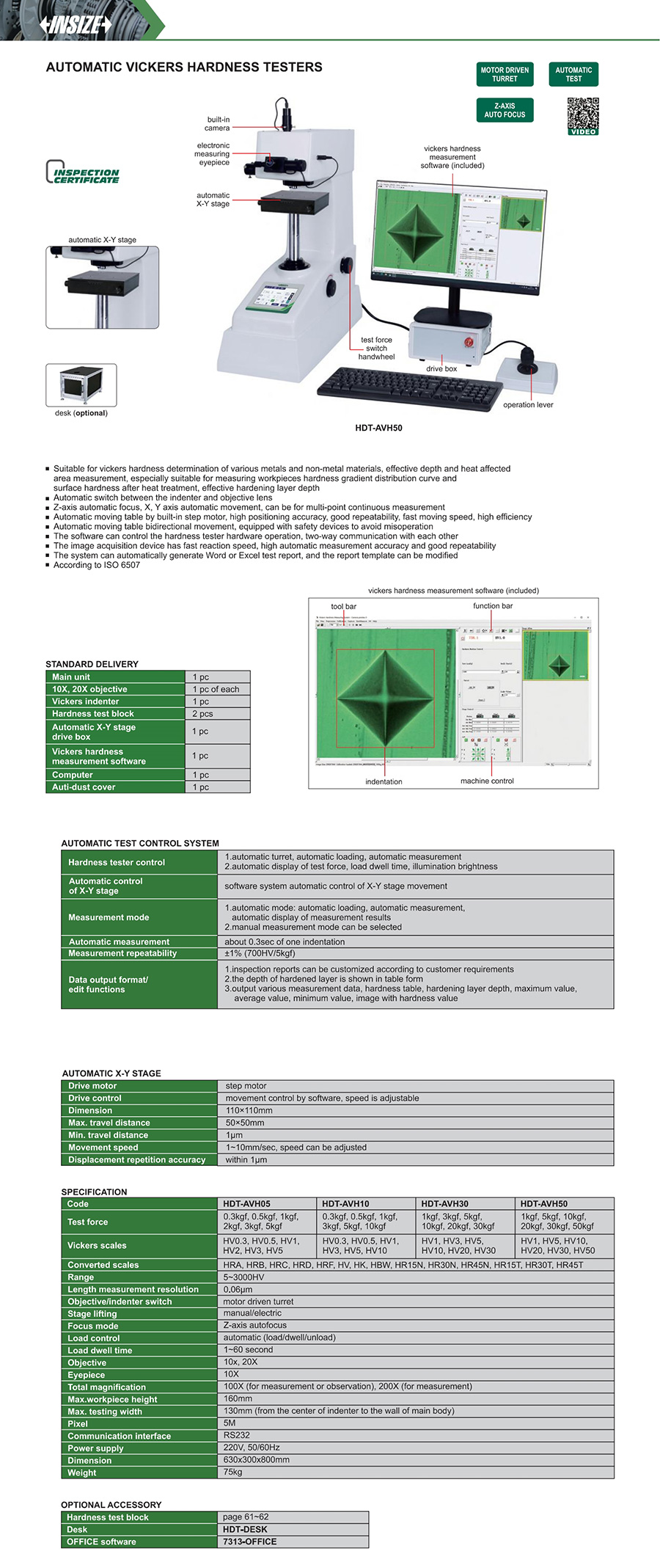

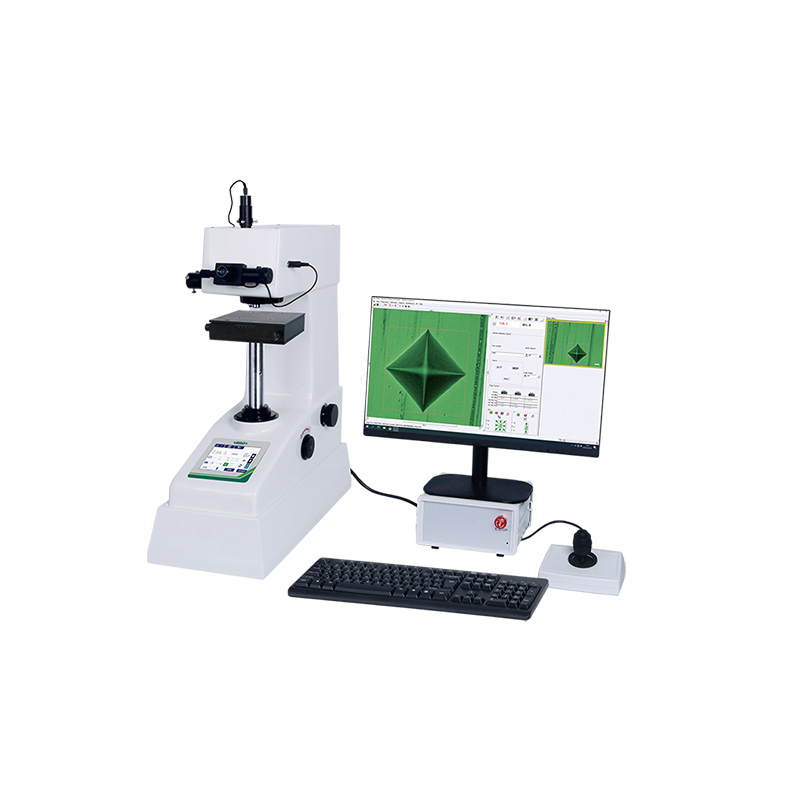

Automatic Vickers Hardness Testers
Code: HDT-AVH Series
Automatic switch between the indenter and objective lens
Z-axis automatic focus, X, Y axis automatic movement, can be for multi-point continuous measurement
Automatic moving table by built-in step motor, high positioning accuracy, good repeatability, fast moving speed, high efficiency
Automatic moving table bidirectional movement, equipped with safety devices to avoid misoperation
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-AVH05 | automatic (load/dwell/unload) | 160mm | 130mm | HV0.3~HV5 | 100X (for measurement or observation), 200X (for measurement) |
| HDT-AVH10 | automatic (load/dwell/unload) | 160mm | 130mm | HV0.3~HV10 | 100X (for measurement or observation), 200X (for measurement) |
| HDT-AVH30 | automatic (load/dwell/unload) | 160mm | 130mm | HV1~HV30 | 100X (for measurement or observation), 200X (for measurement) |
| HDT-AVH50 | automatic (load/dwell/unload) | 160mm | 130mm | HV1~HV50 | 100X (for measurement or observation), 200X (for measurement) |
