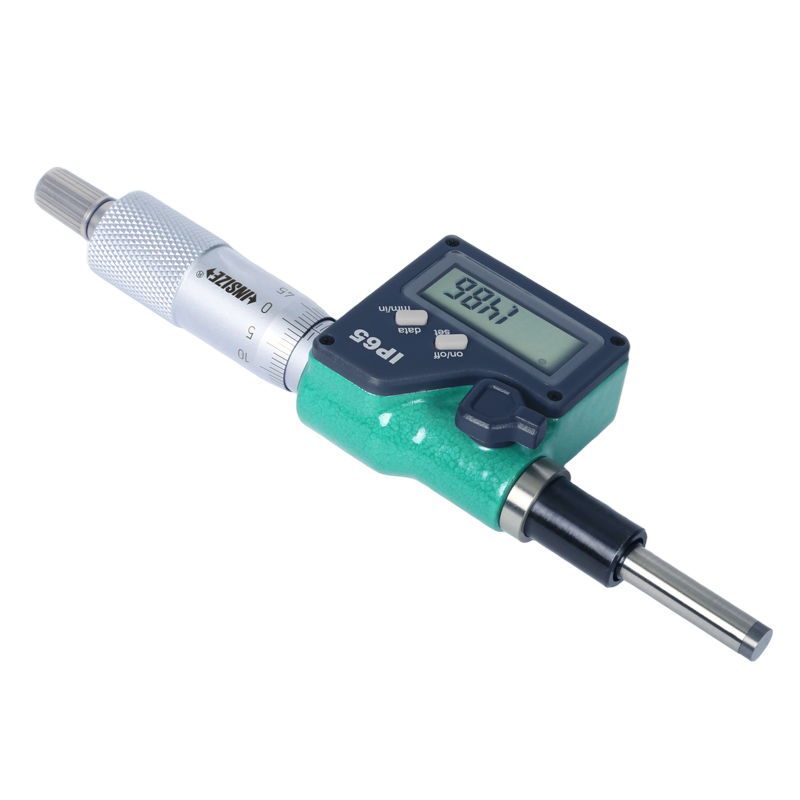

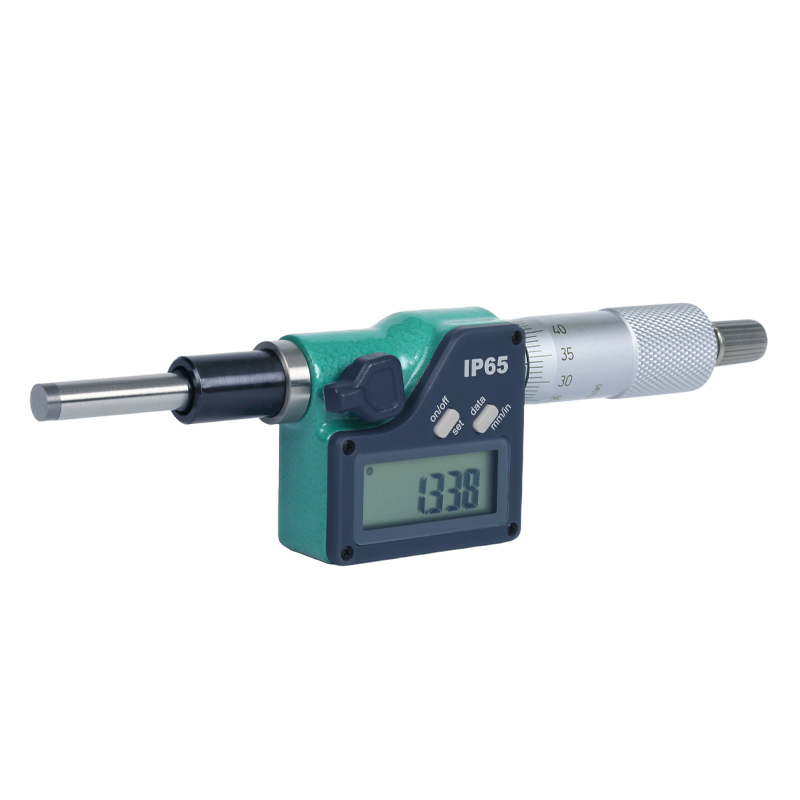

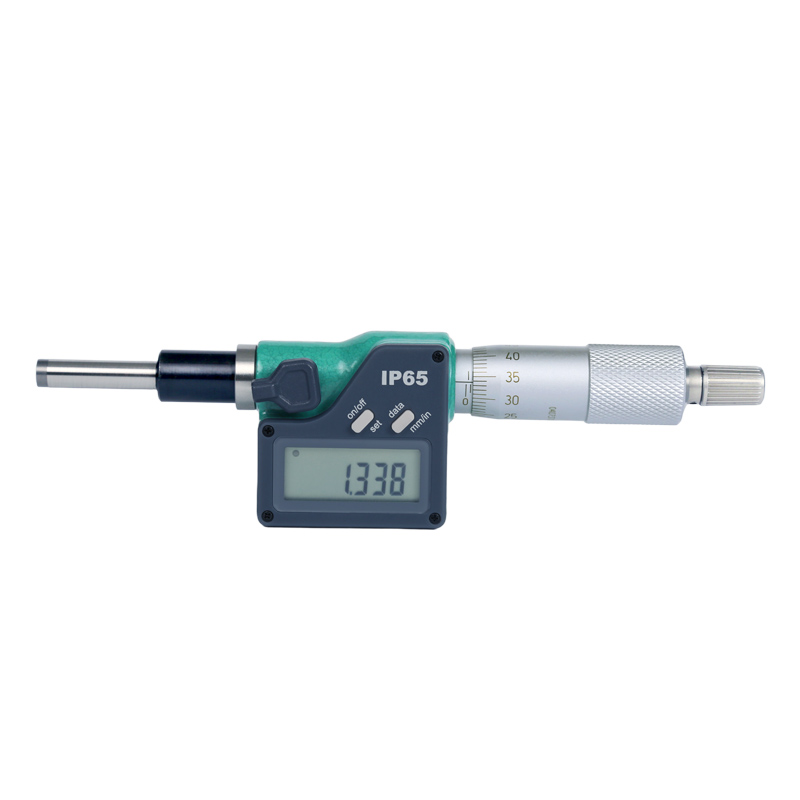

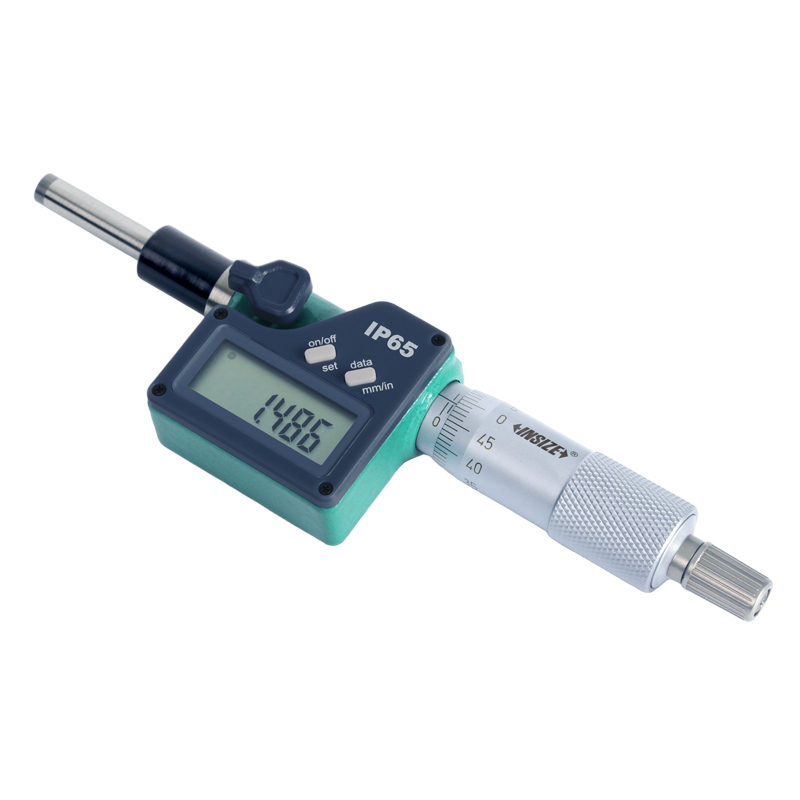

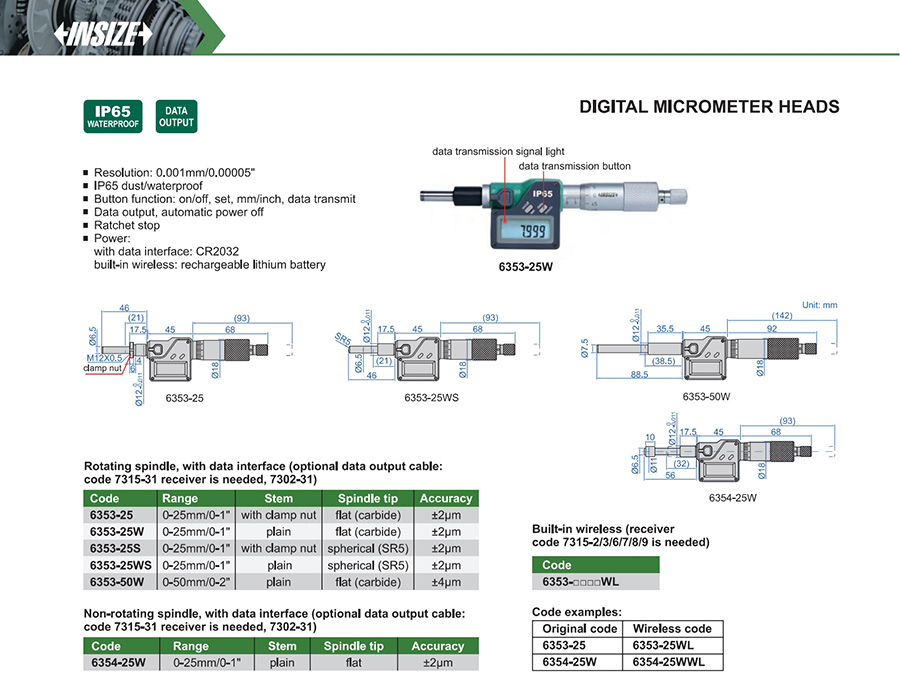

Digital Micrometer Heads
Code: 6353/6354
Button function: on/off, set, mm/inch, data transmit
Data output, automatic power off
Ratchet stop
| Code | Type | Range | Accuracy | Resolution | Stem | Spindle tip |
|---|---|---|---|---|---|---|
| 6353-25 | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | with clamp nut | flat (carbide) |
| 6353-25W | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | plain | flat (carbide) |
| 6353-25S | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | with clamp nut | spherical (SR5) |
| 6353-25WS | Rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | plain | spherical (SR5) |
| 6353-50W | Rotating spindle | 0-50mm/0-2" | ±4μm | 0.001mm/0.00005" | plain | flat (carbide) |
| 6354-25W | Non-rotating spindle | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" | plain | flat |
