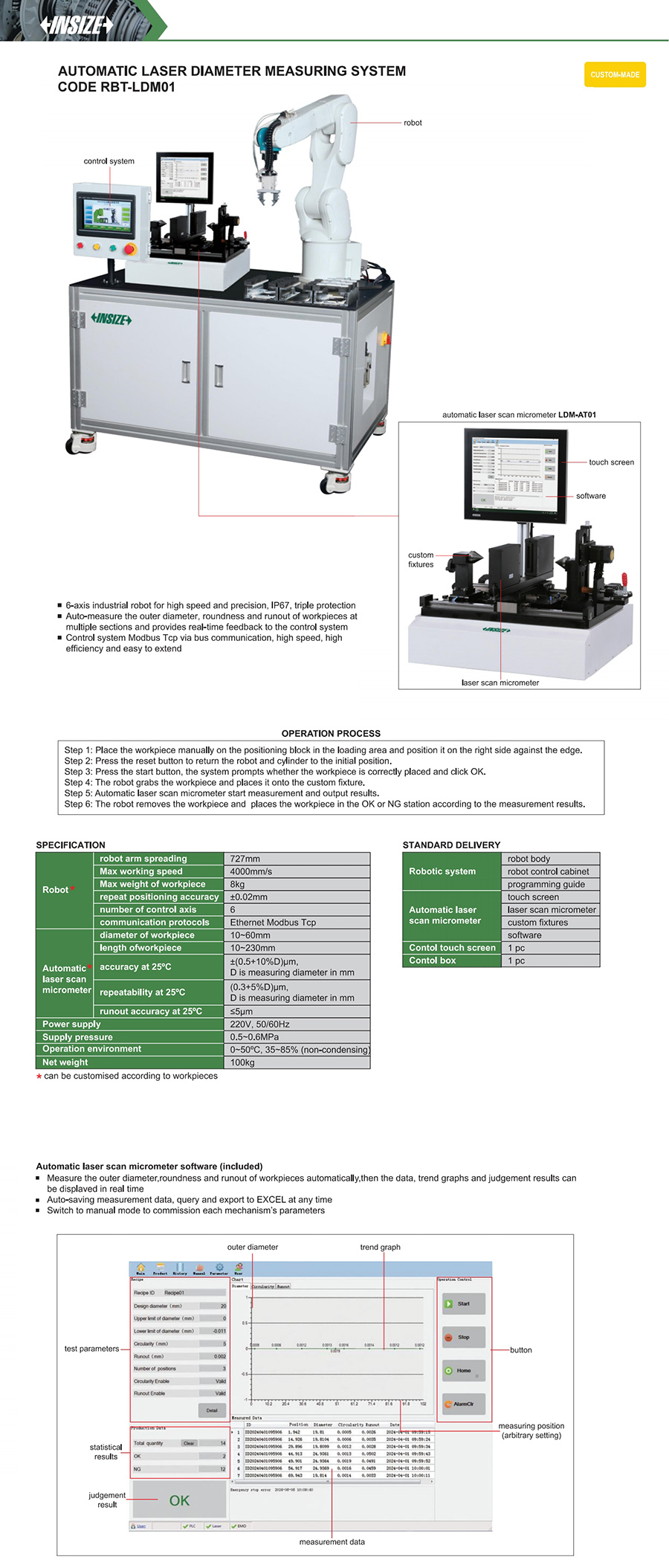

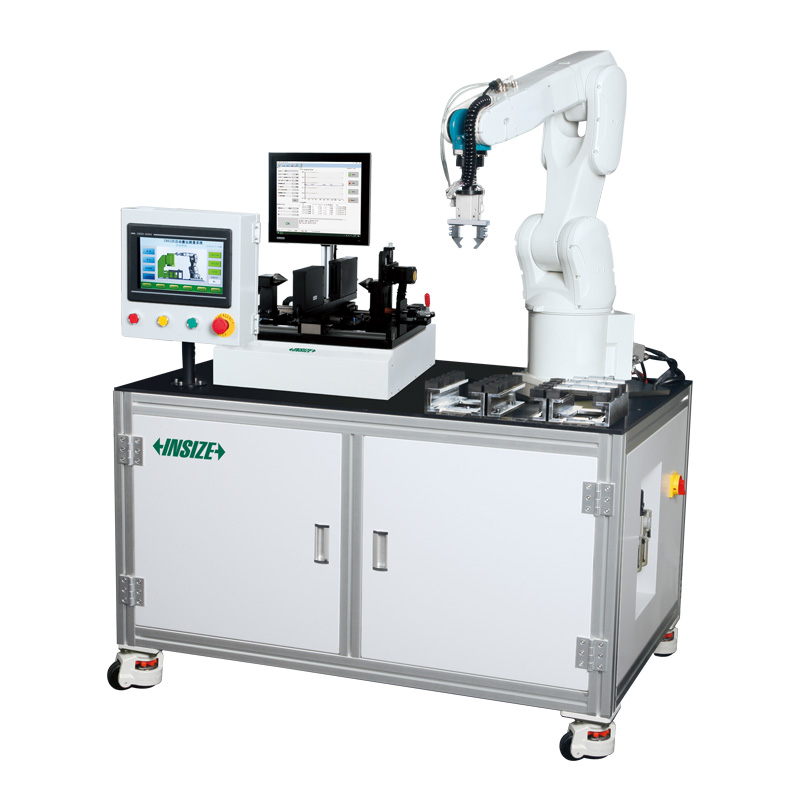

Automatic Laser Diameter Measuring System
Code: RBT-LDM01
6-axis industrial robot for high speed and precision, lP67, triple protection
Auto-measure the outer diameter, roundness and runout of workpieces at multiple sections and provides real-time feedback to the control system
Control system Modbus Tcp via bus communication, high speed, high efficiency and easy to extend
| Code | Accuracy | Repeatability | Runout accuracy |
|---|---|---|---|
| RBT-LDM01 | at 25ºC: ±(0.5+10%D)µm, D is measuring diameter in mm | at 25ºC: (0.3+5%D)µm, D is measuring diameter in mm | at 25ºC: ≤5µm |
