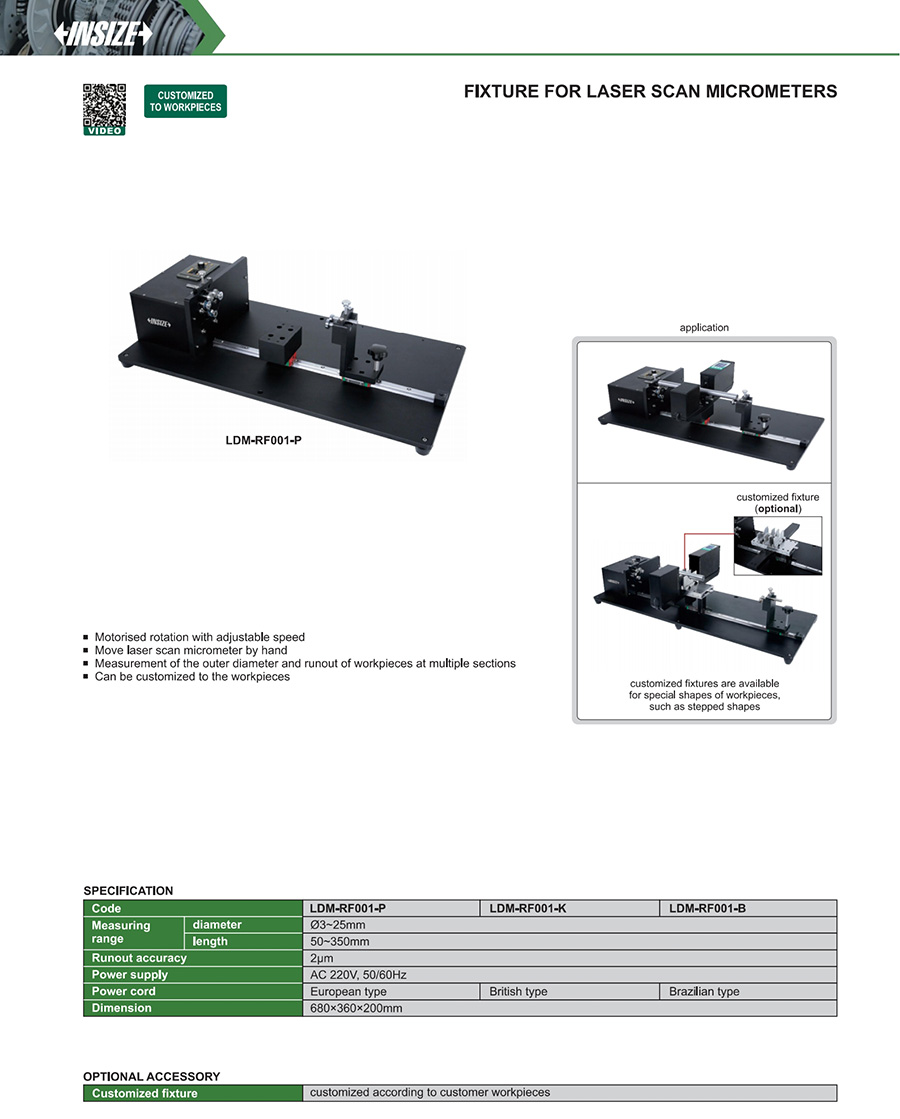

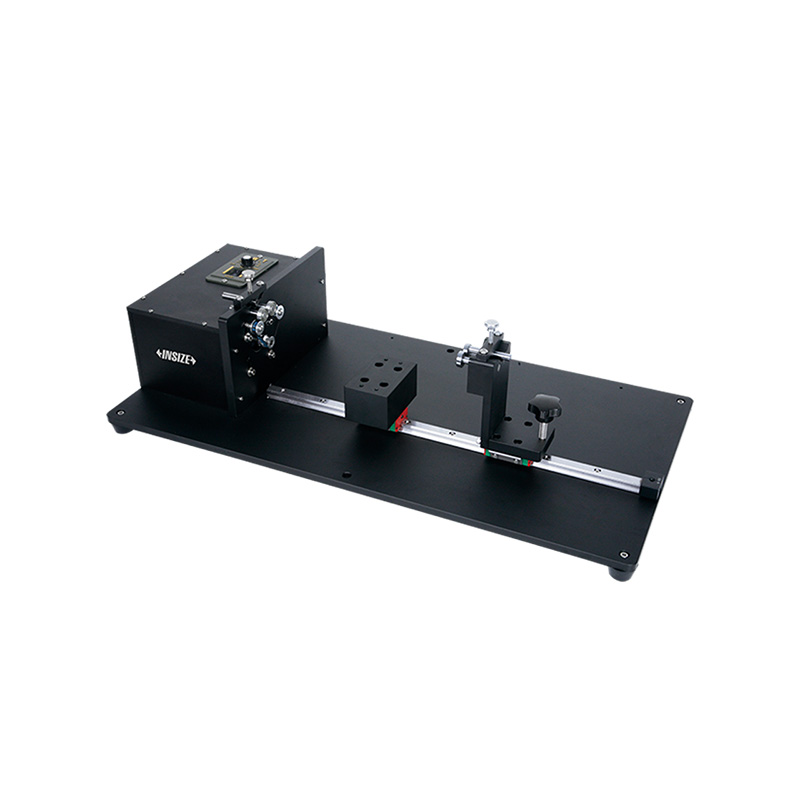

Fixture For Laser Scan Micrometers
Code: LDM-RF001 series
Motorised rotation with adjustable speed
Move laser scan micrometer by hand
Measurement of the outer diameter and runout of workpieces at multiple sections
Can be customized to the workpieces
| Code | Range | Runout accuracy |
|---|---|---|
| LDM-RF001-P | diameter Ø3~25mm, length 50~350mm | 2μm |
| LDM-RF001-K | diameter Ø3~25mm, length 50~350mm | 2μm |
| LDM-RF001-B | diameter Ø3~25mm, length 50~350mm | 2μm |
