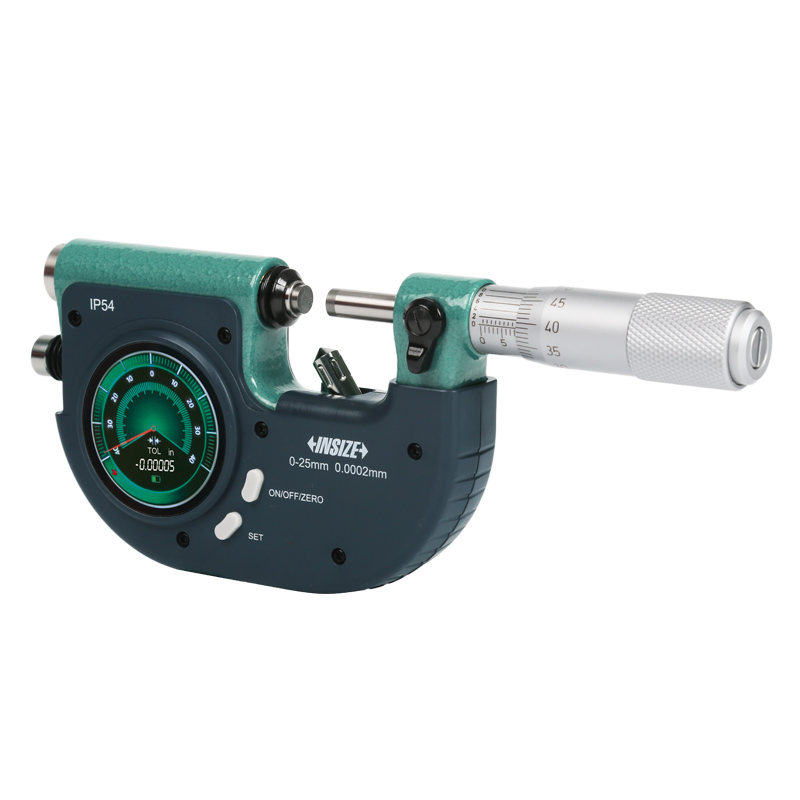

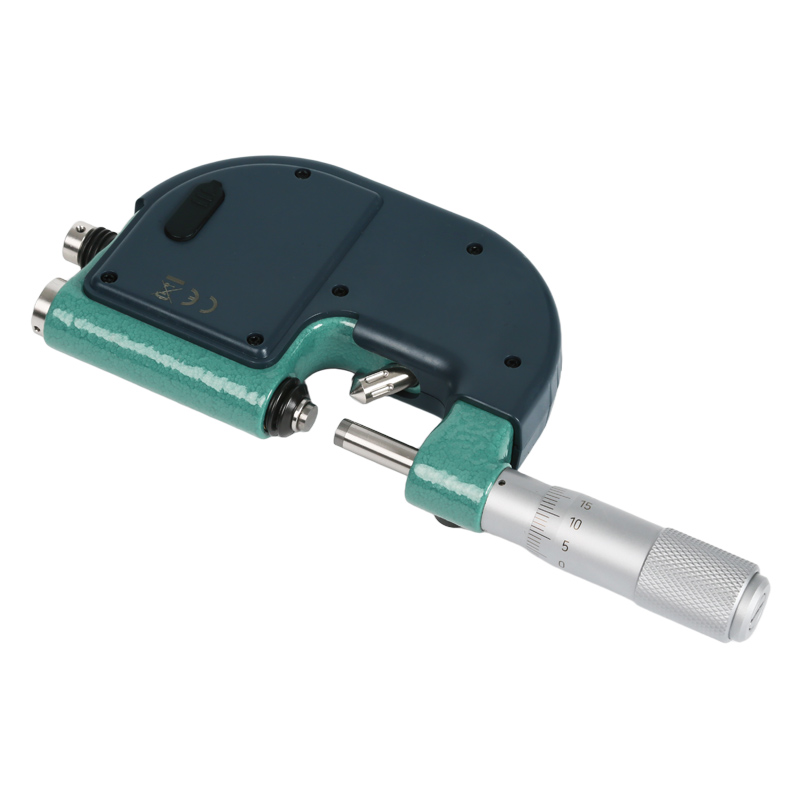

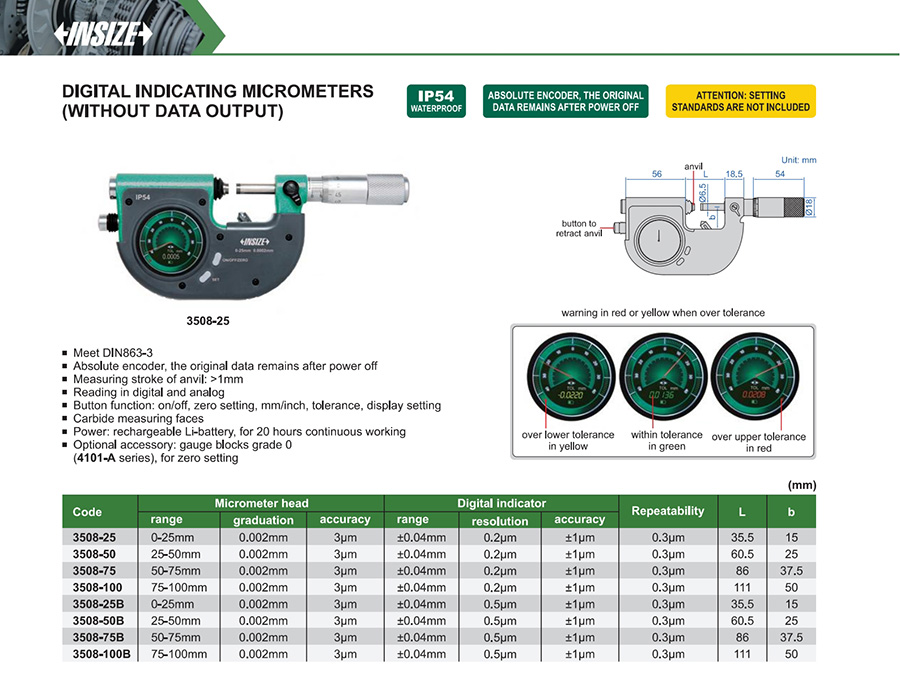

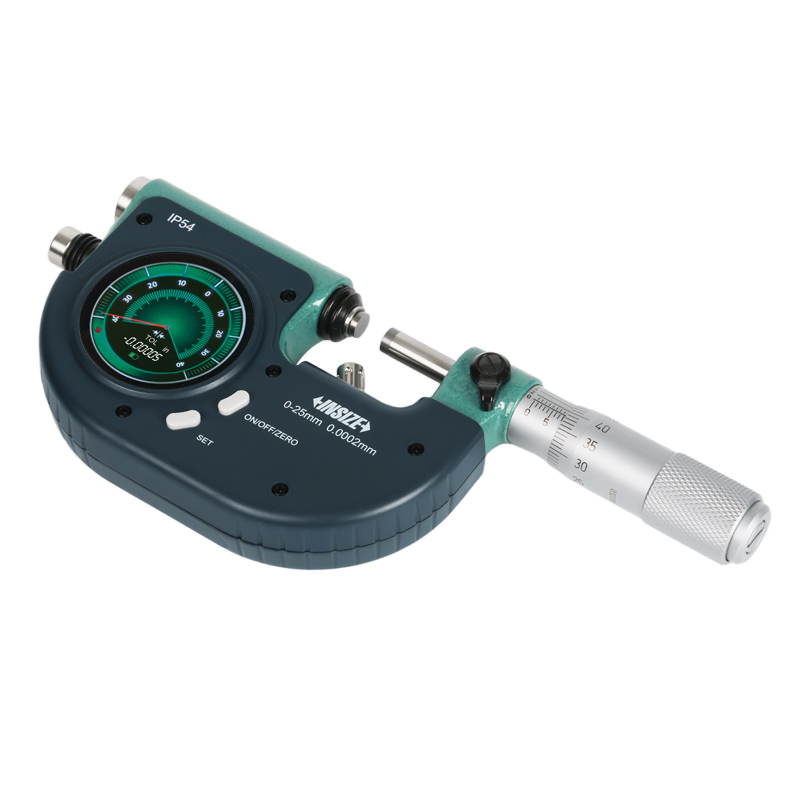

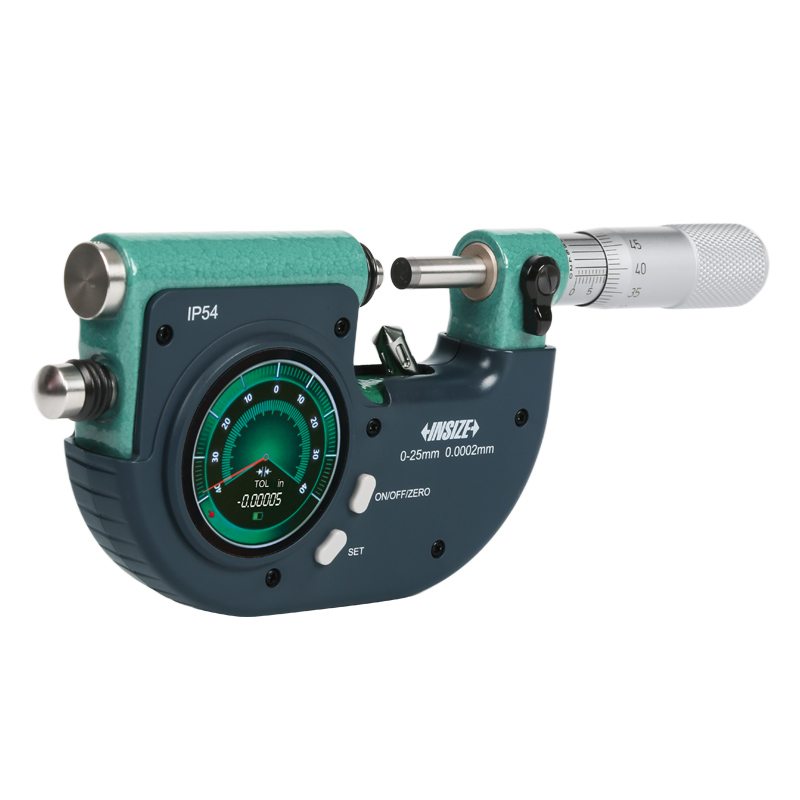

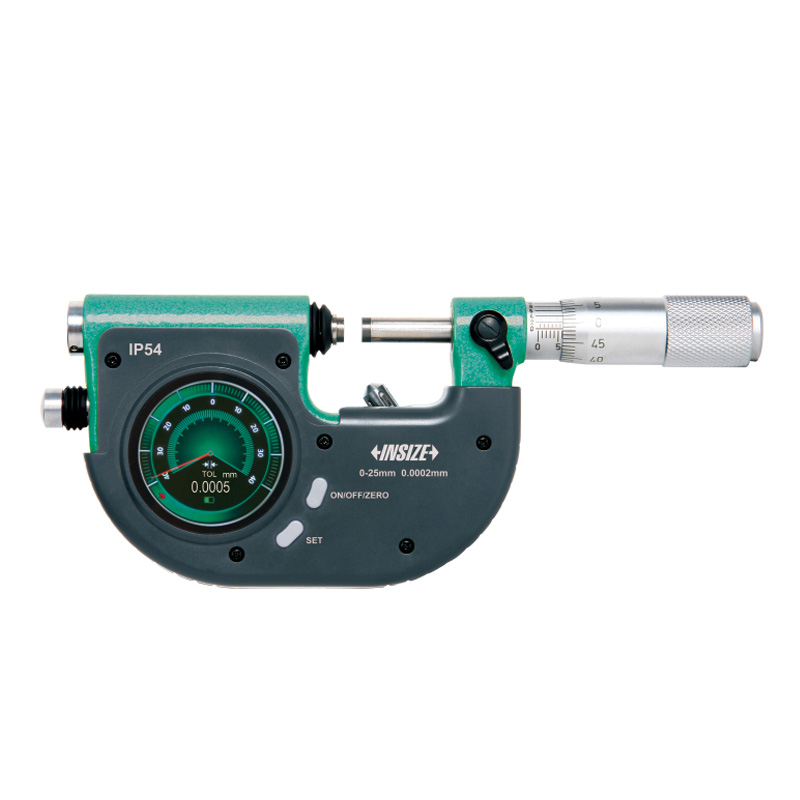

Digital Indicating Micrometers (Without Data Output)
Code: 3508
Meet DIN863-3
Absolute encoder, the original data remains after power off
Measuring stroke of anvil: >1mm
Reading in digital and analog
Button function: on/off, zero setting, mm/inch, tolerance, display setting
Carbide measuring faces
Power: rechargeable Li-battery, for 20 hours continuous working
| Code | Range | Graduation | Digital indicator resolution | Digital indicator range |
|---|---|---|---|---|
| 3508-25 | 0-25mm | 0.002mm | 0.2μm | ±0.04mm |
| 3508-50 | 25-50mm | 0.002mm | 0.2μm | ±0.04mm |
| 3508-75 | 50-75mm | 0.002mm | 0.2μm | ±0.04mm |
| 3508-100 | 75-100mm | 0.002mm | 0.2μm | ±0.04mm |
| 3508-25B | 0-25mm | 0.002mm | 0.5μm | ±0.04mm |
| 3508-50B | 25-50mm | 0.002mm | 0.5μm | ±0.04mm |
| 3508-75B | 50-75mm | 0.002mm | 0.5μm | ±0.04mm |
| 3508-100B | 75-100mm | 0.002mm | 0.5μm | ±0.04mm |
