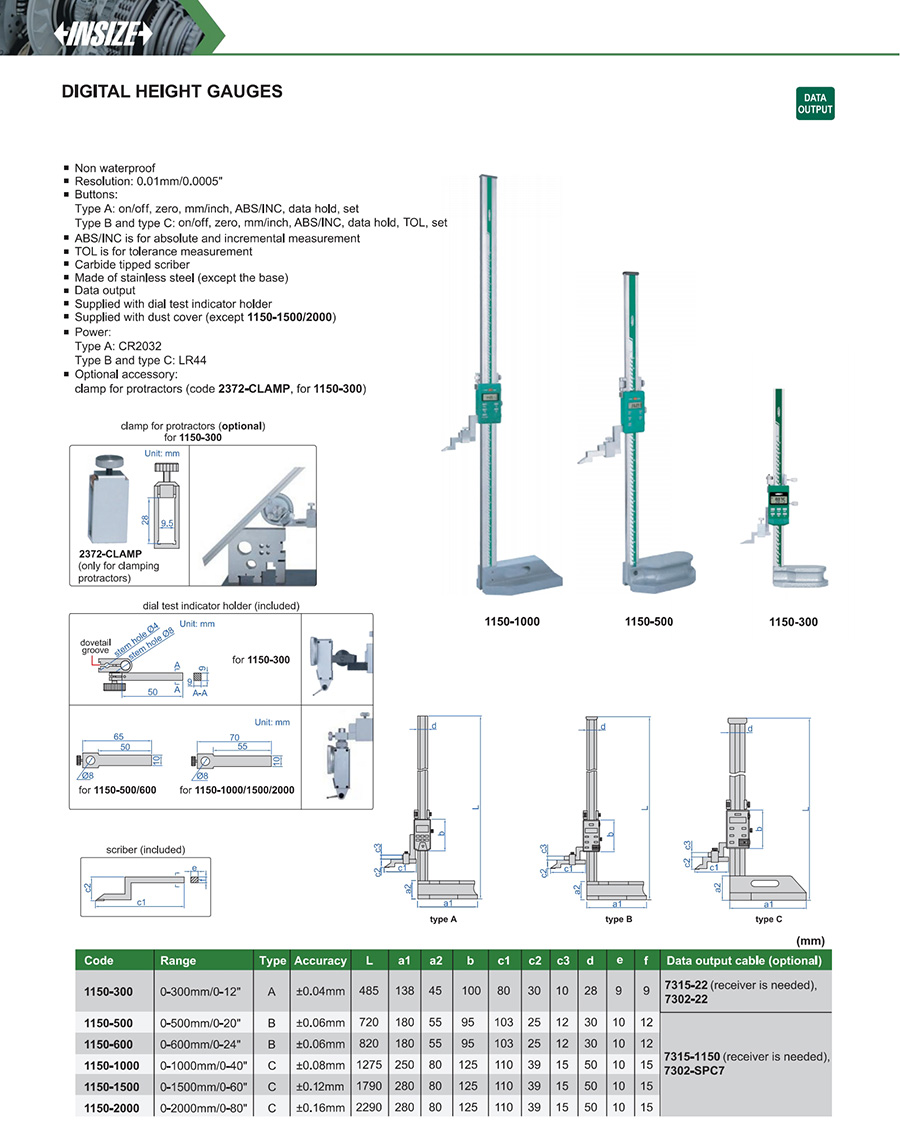

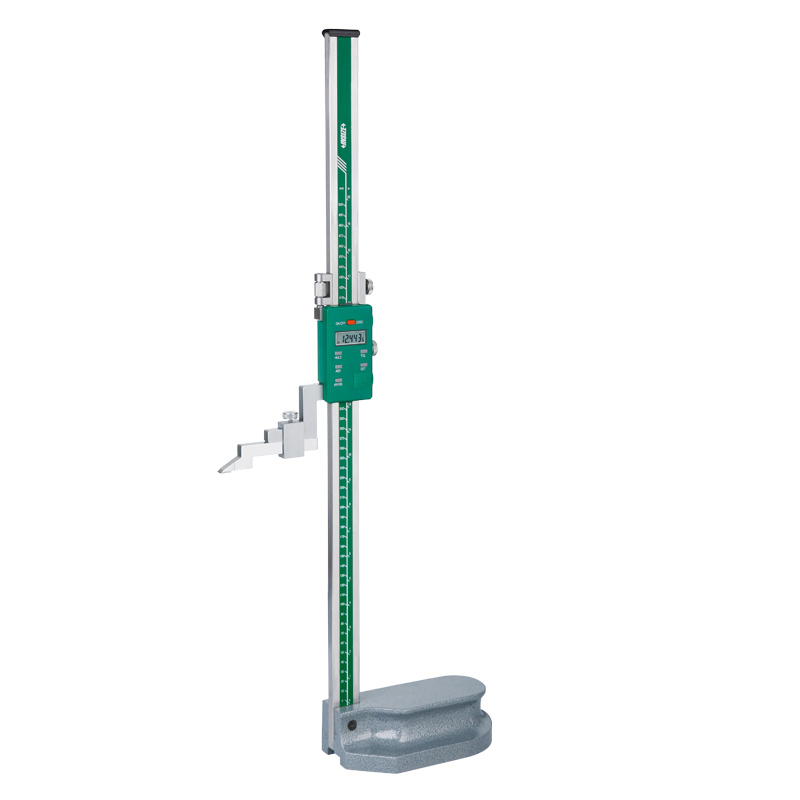

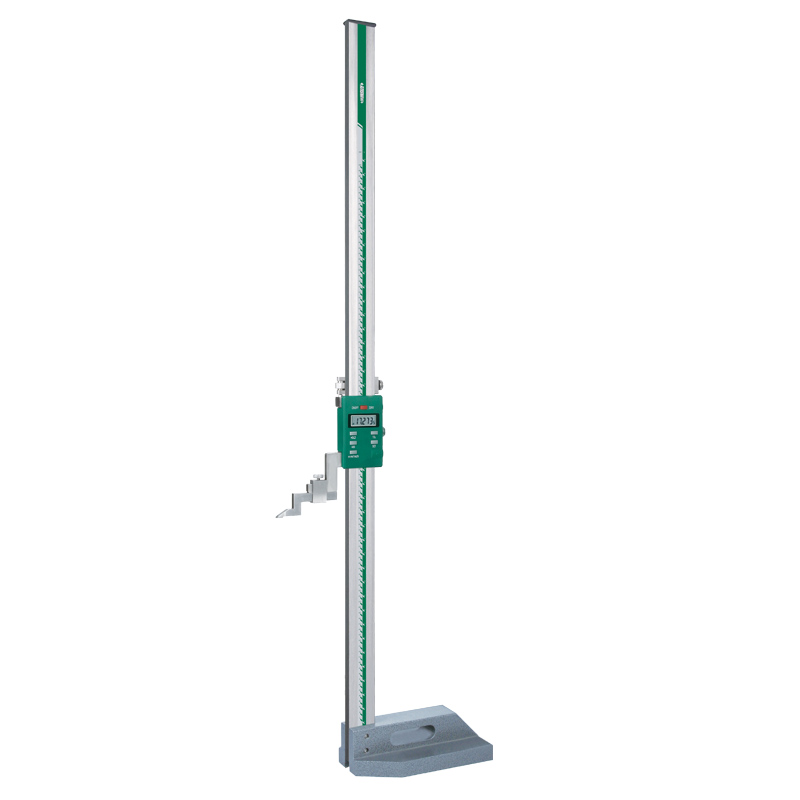

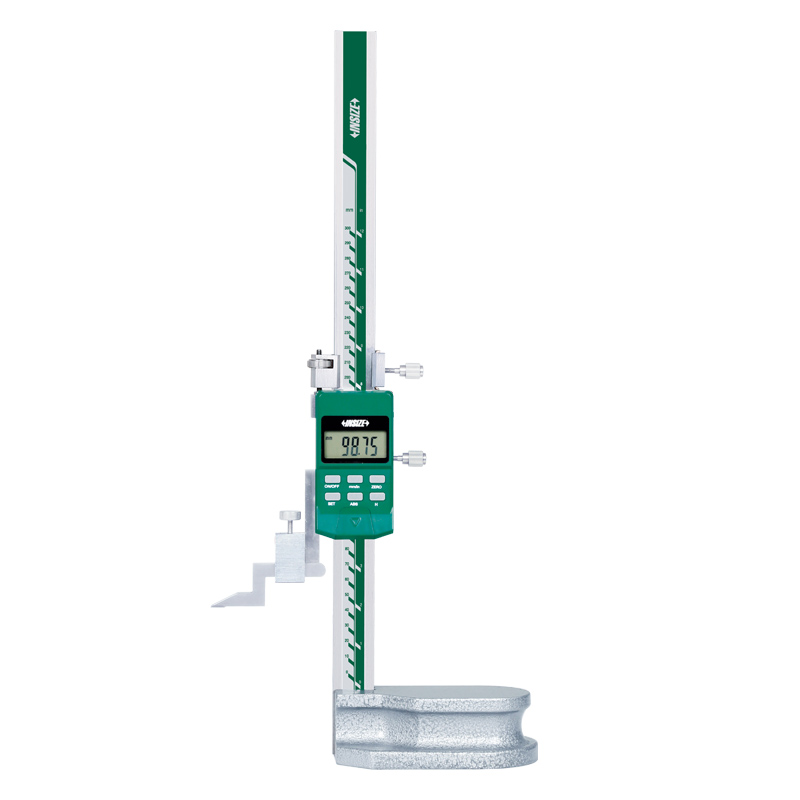

Digital Height Gauges
Code: 1150
Non waterproof

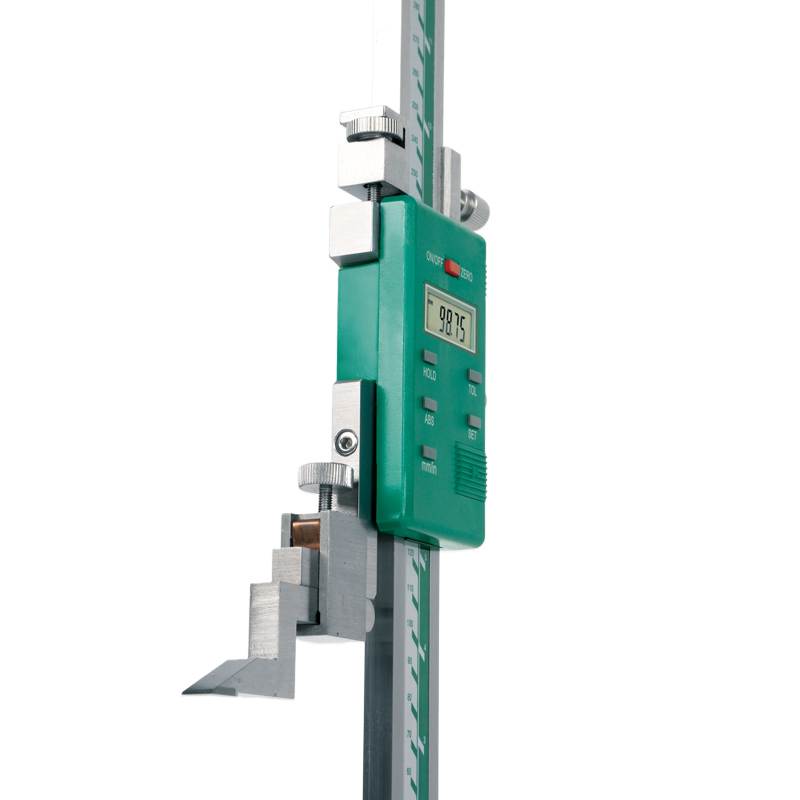

Buttons: Type A: on/off, zero, mm/inch, ABS/INC, data hold, set, Type B and type C: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set
ABS/INC is for absolute and incremental measurement
TOL is for tolerance measurement
Carbide tipped scriber
Made of stainless steel (except the base)
Supplied with dust cover (except 1150-1500/2000)
| Code | Type | Range | Accuracy | Resolution |
|---|---|---|---|---|
| 1150-300 | A | 0-300mm/0-12" | ±0.04mm | 0.01mm/0.0005" |
| 1150-500 | B | 0-500mm/0-20" | ±0.06mm | 0.01mm/0.0005" |
| 1150-600 | B | 0-600mm/0-24" | ±0.06mm | 0.01mm/0.0005" |
| 1150-1000 | C | 0-1000mm/0-40" | ±0.08mm | 0.01mm/0.0005" |
| 1150-1500 | C | 0-1500mm/0-60" | ±0.12mm | 0.01mm/0.0005" |
| 1150-2000 | C | 0-2000mm/0-80" | ±0.16mm | 0.01mm/0.0005" |
