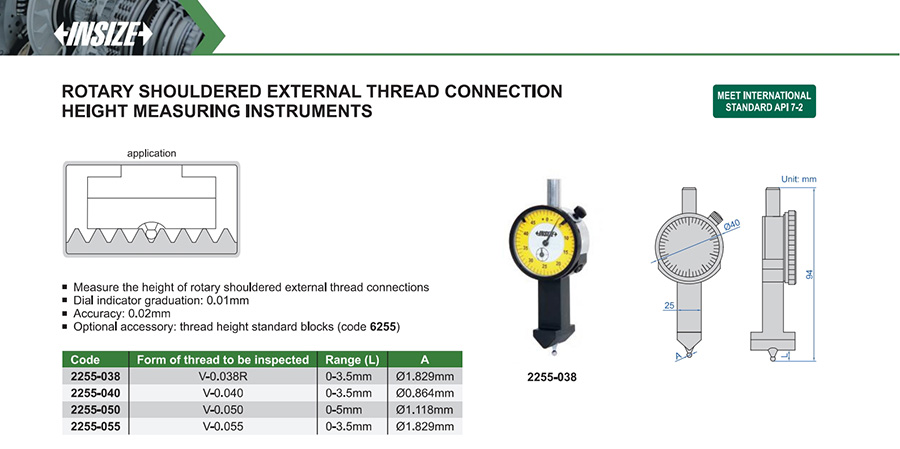

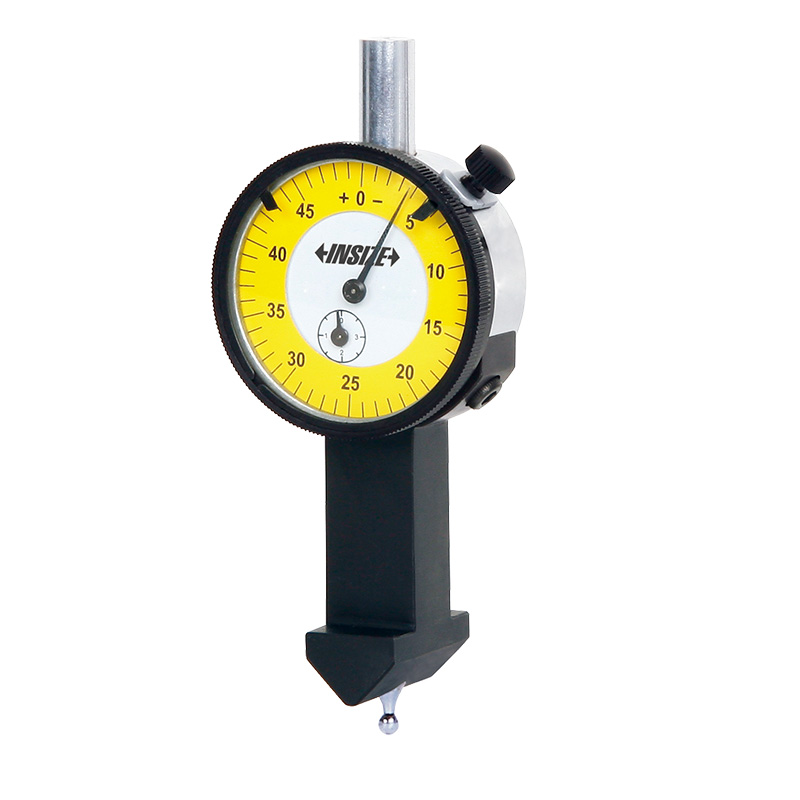

Rotary Shouldered External Thread Connection Height Measuring Instruments
Code: 2255
Measure the height of rotary shouldered external thread connections
| Code | Range | Accuracy | Graduation | Inspection Elements |
|---|---|---|---|---|
| 2255-038 | 0-3.5mm | 0.02mm | 0.01mm | thread height |
| 2255-040 | 0-3.5mm | 0.02mm | 0.01mm | thread height |
| 2255-050 | 0-5mm | 0.02mm | 0.01mm | thread height |
| 2255-055 | 0-3.5mm | 0.02mm | 0.01mm | thread height |
