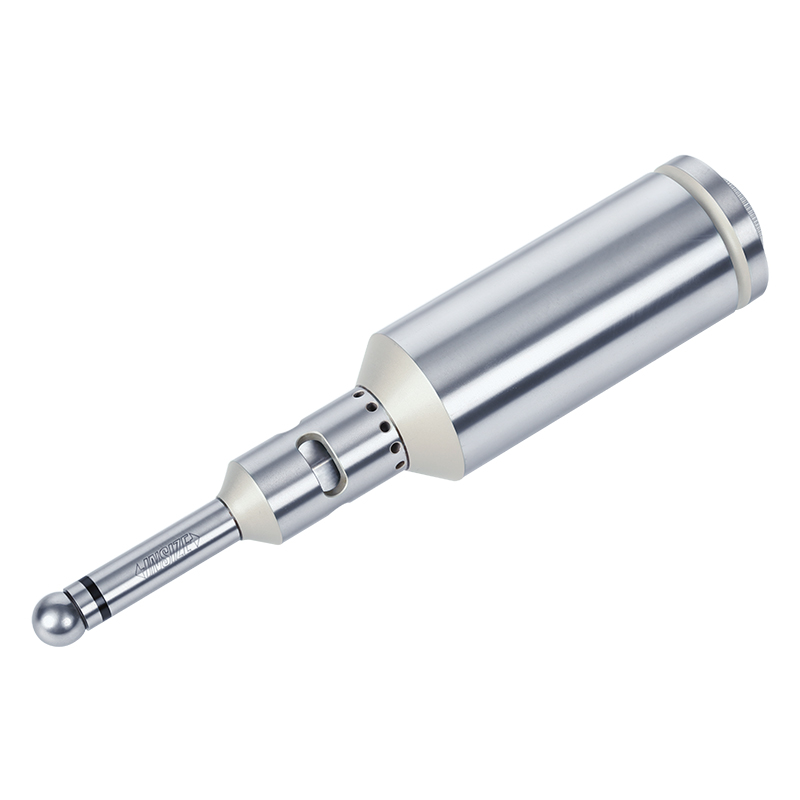

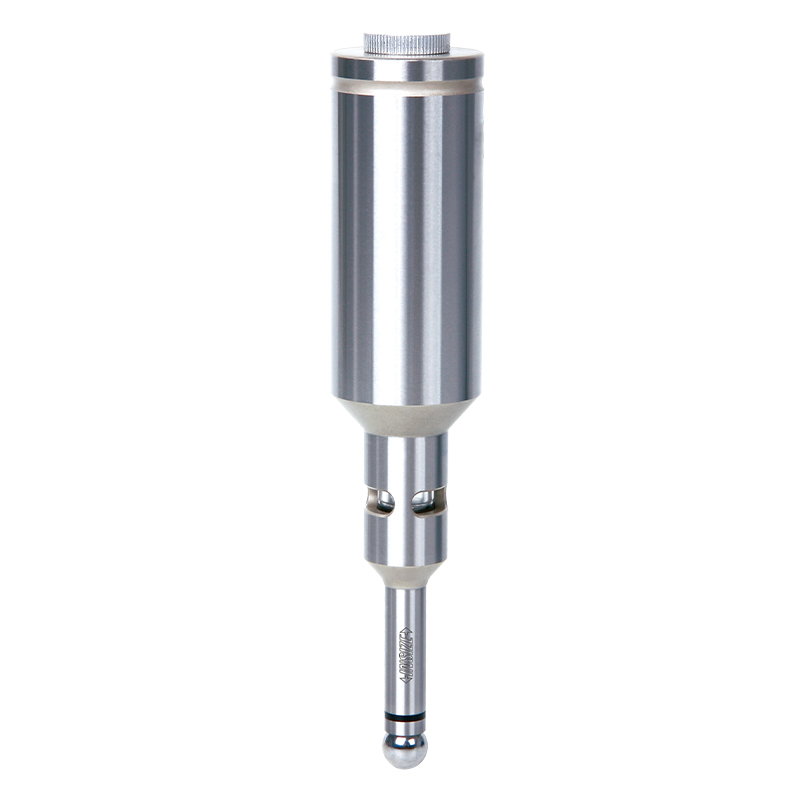

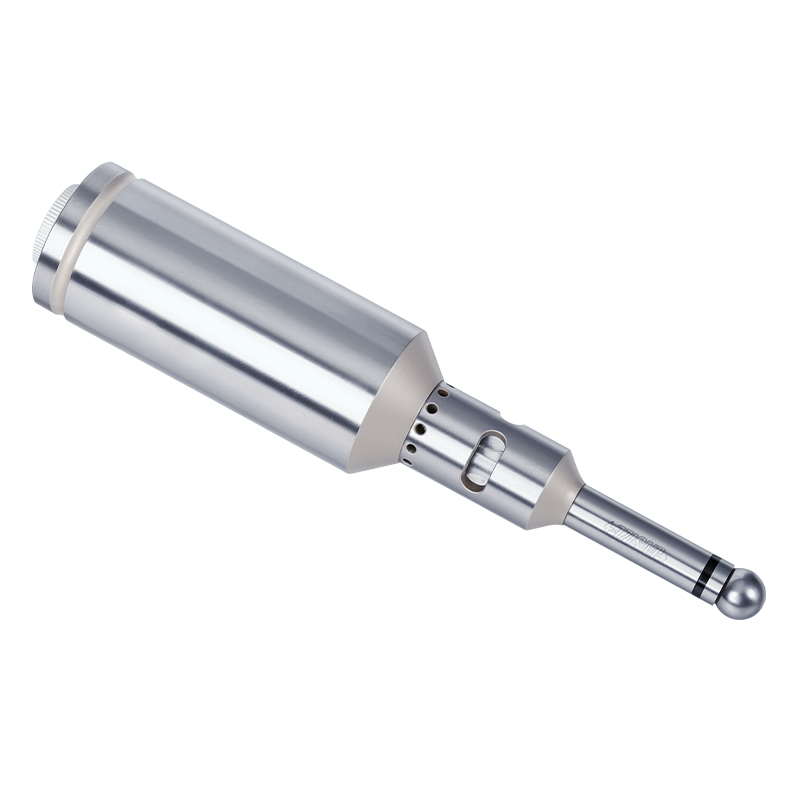

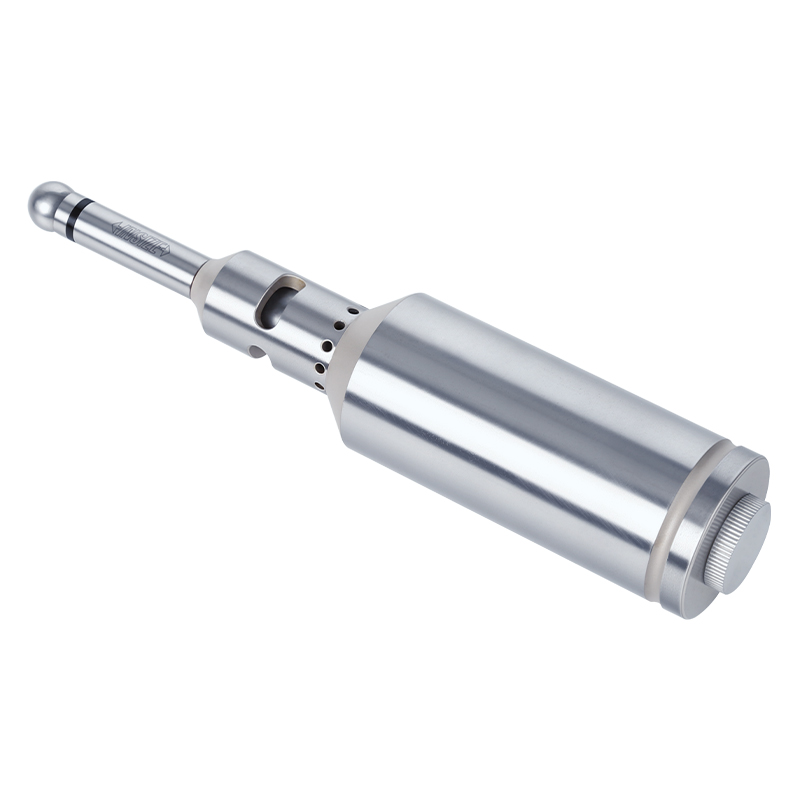

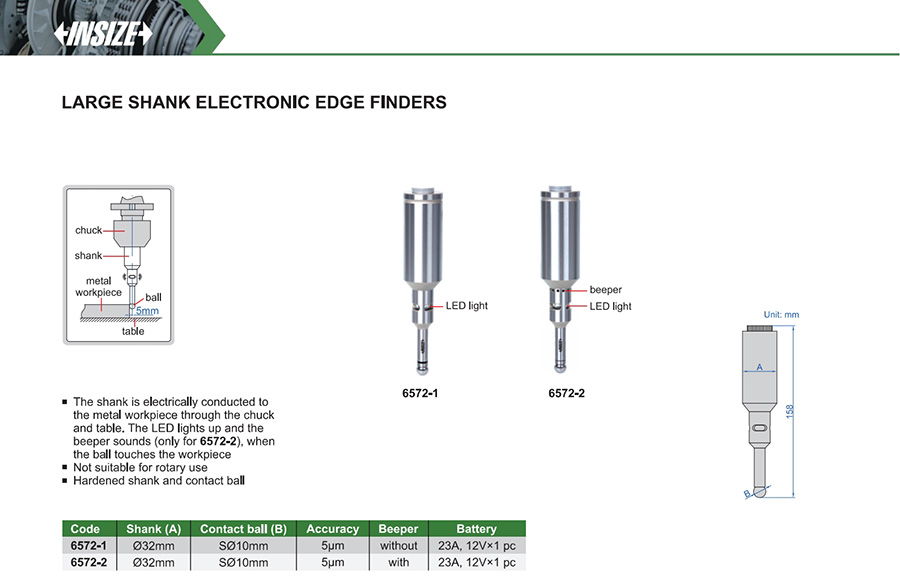

Large Shank Electronic Edge Finders
Code: 6572
The shank is electrically conducted to the metal workpiece through the chuck and table. The LED lights up and the beeper sounds (only for 6572-2), when the ball touches the workpiece
Not suitable for rotary use
Hardened shank and contact ball
| Code | Accuracy | Shank (A) | Contact ball (B) | Beeper |
|---|---|---|---|---|
| 6572-1 | 5µm | Ø32mm | SØ10mm | without |
| 6572-2 | 5µm | Ø32mm | SØ10mm | with |
