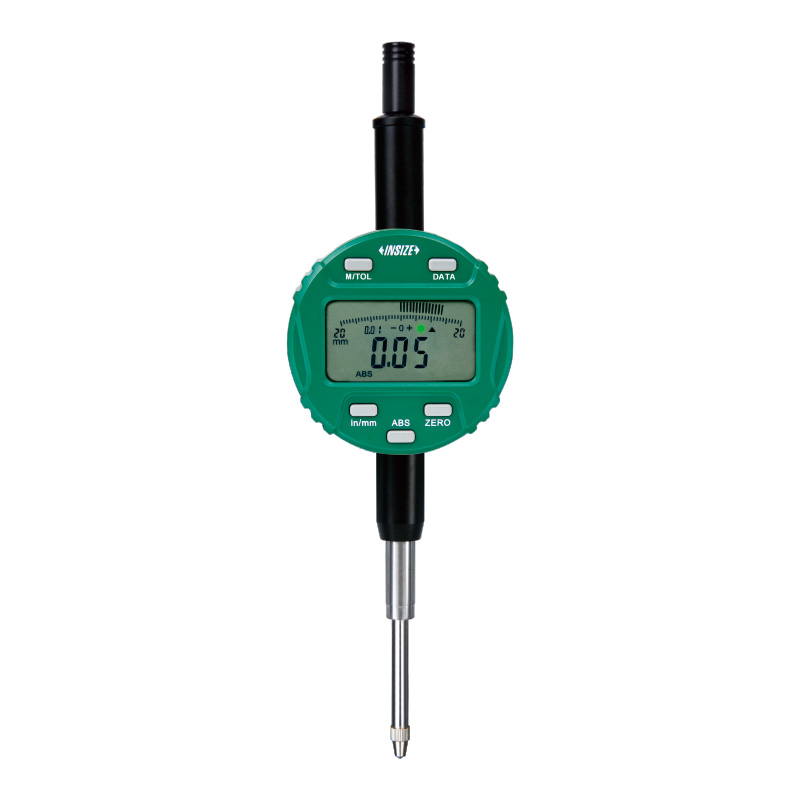

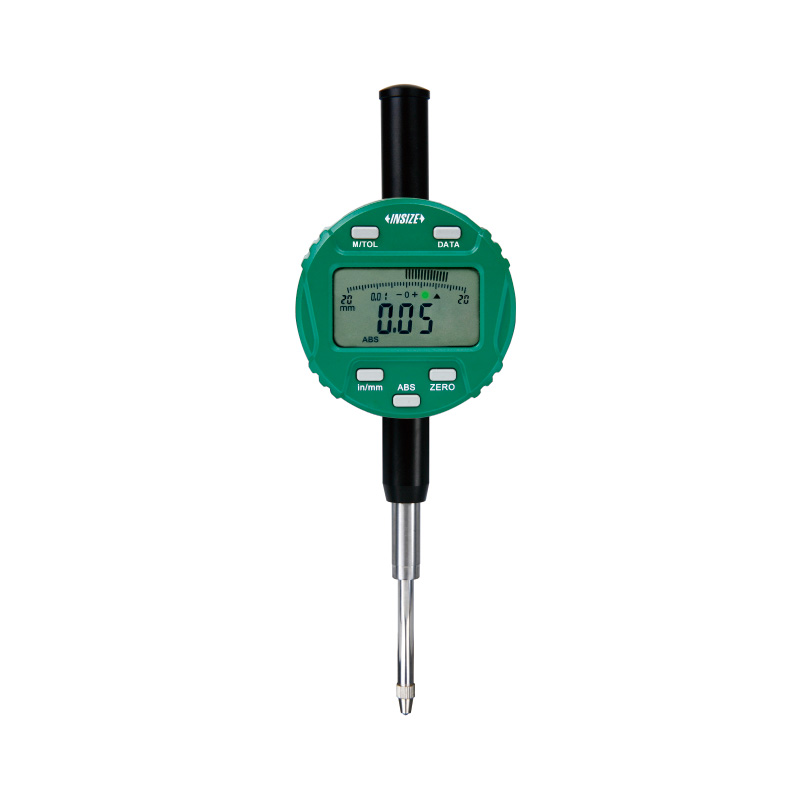

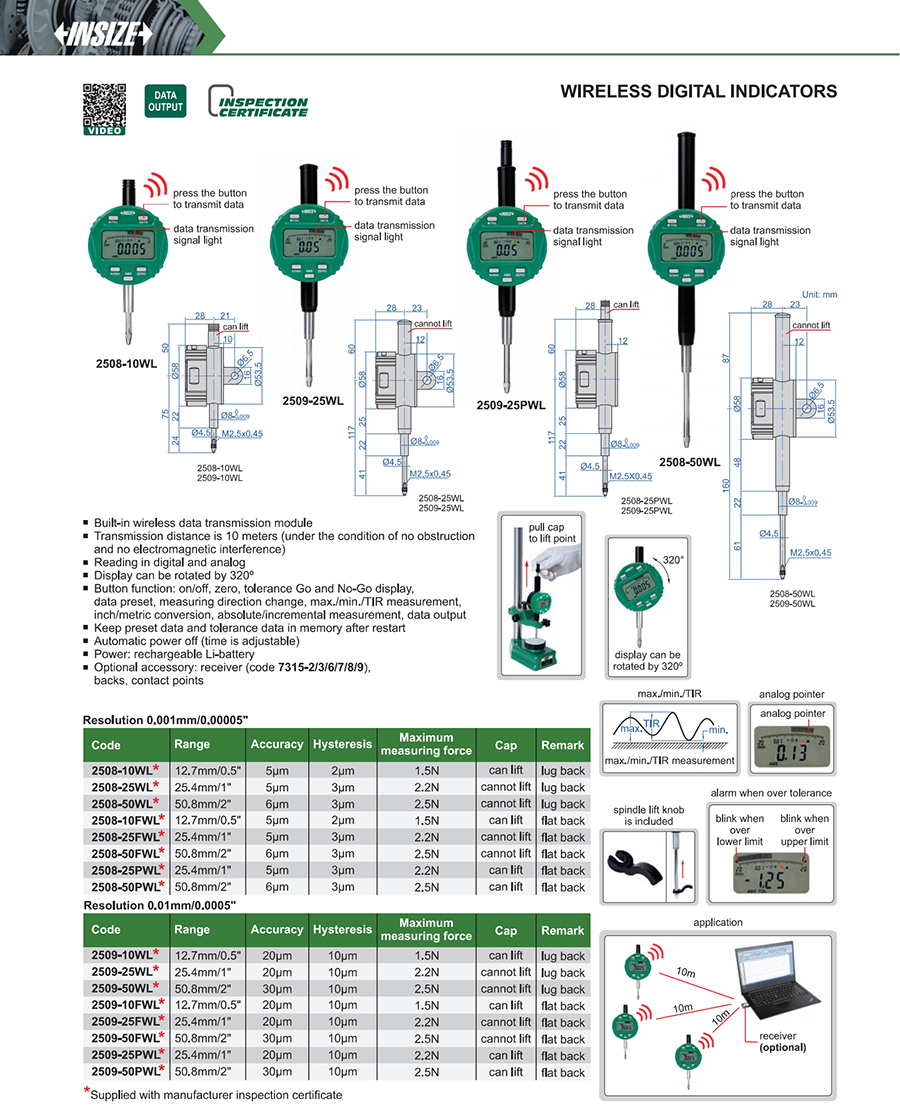

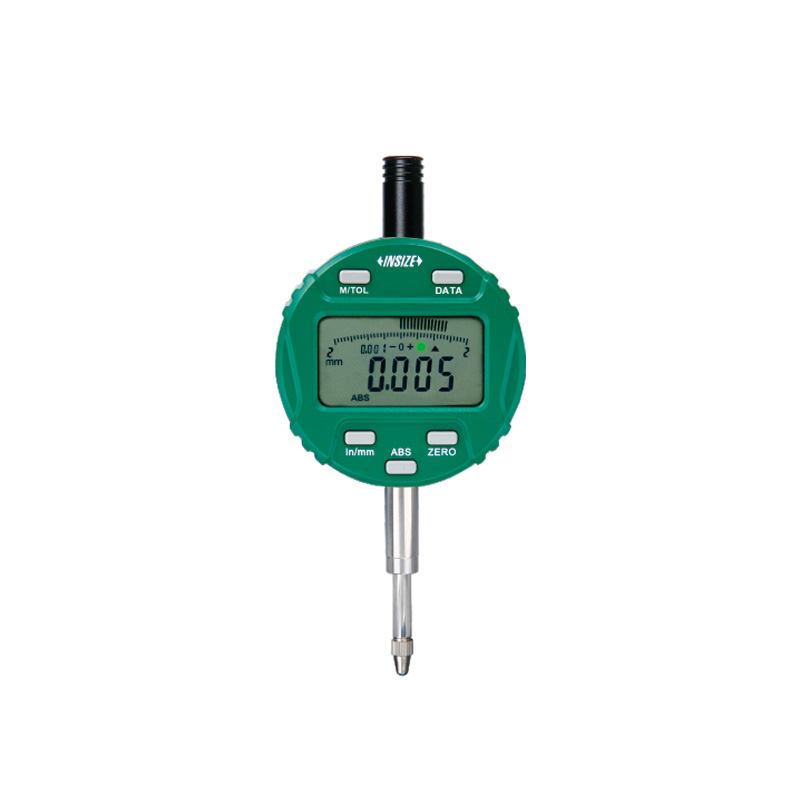

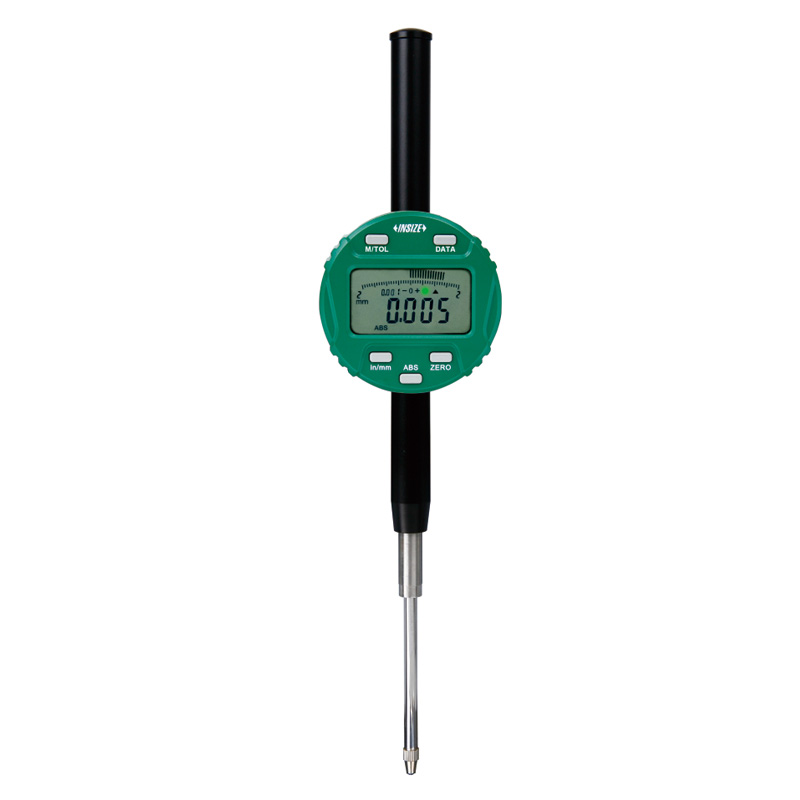

Wireless Digital Indicators
Code: 2508/2509
Built-in wireless data transmission module
Transmission distance is 10 meters (under the condition of no obstruction and no electromagnetic interference)
Reading in digital and analog
Display can be rotated by 320º
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement, data output
Keep preset data and tolerance data in memory after restart
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2508-10WL | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
| 2508-25WL | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2508-50WL | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2508-10FWL | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
| 2508-25FWL | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2508-50FWL | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2508-25PWL | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2508-50PWL | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2509-10WL | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2509-25WL | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2509-50WL | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
| 2509-10FWL | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2509-25FWL | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2509-50FWL | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
| 2509-25PWL | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2509-50PWL | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
