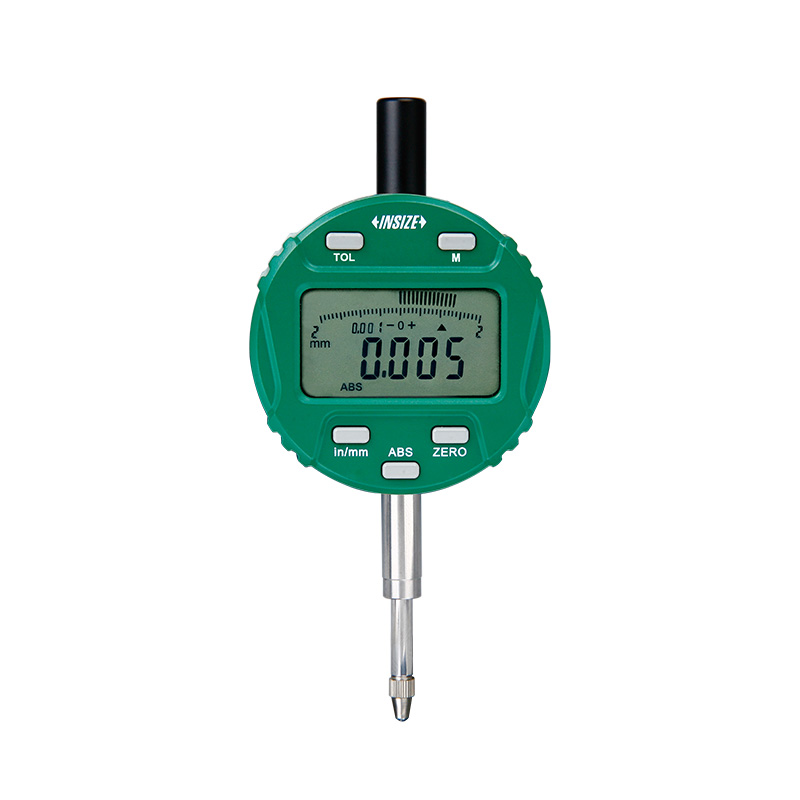

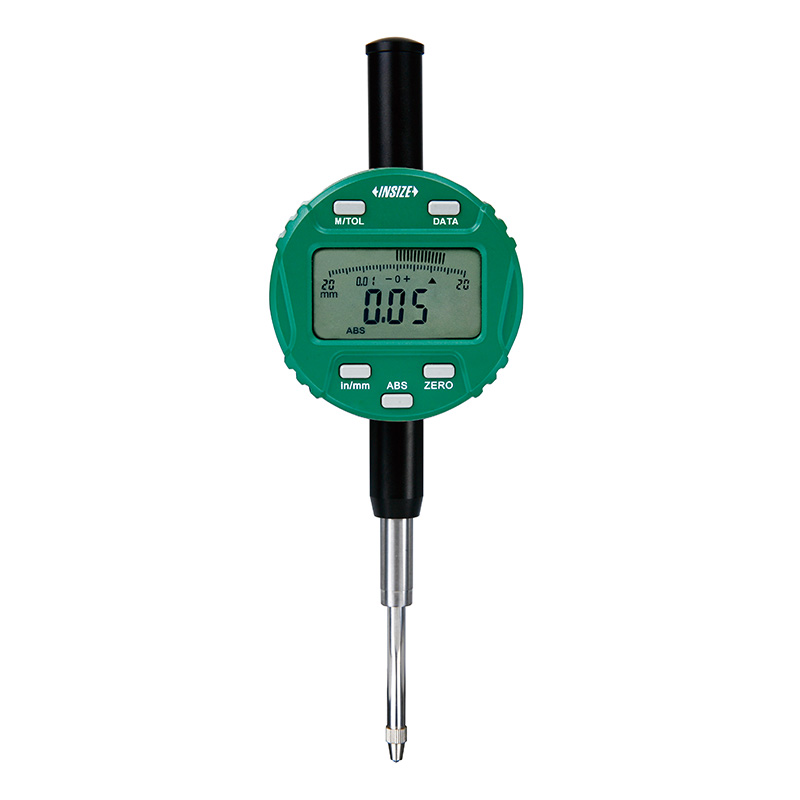

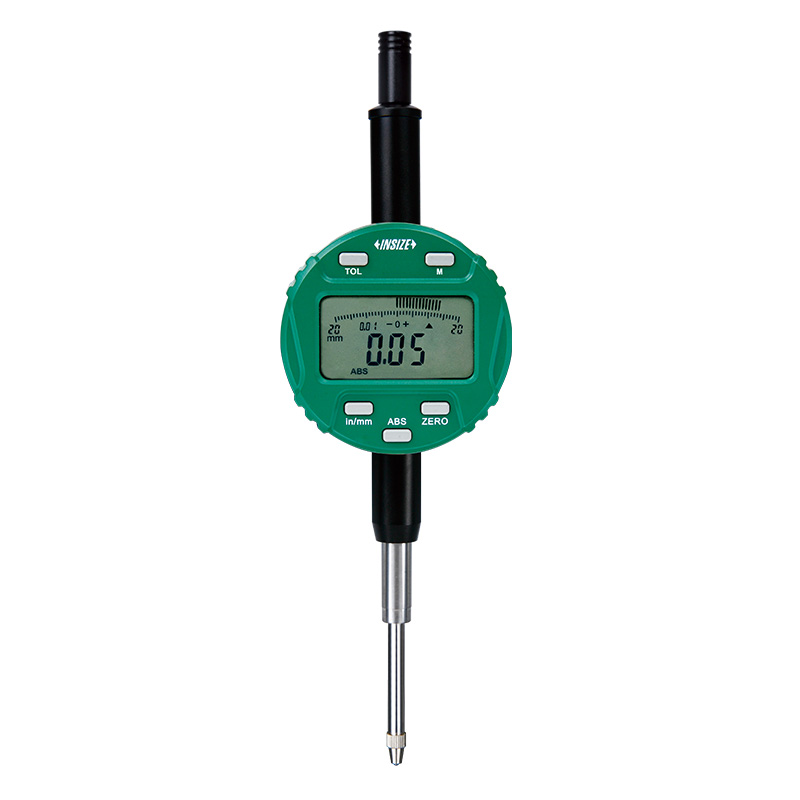

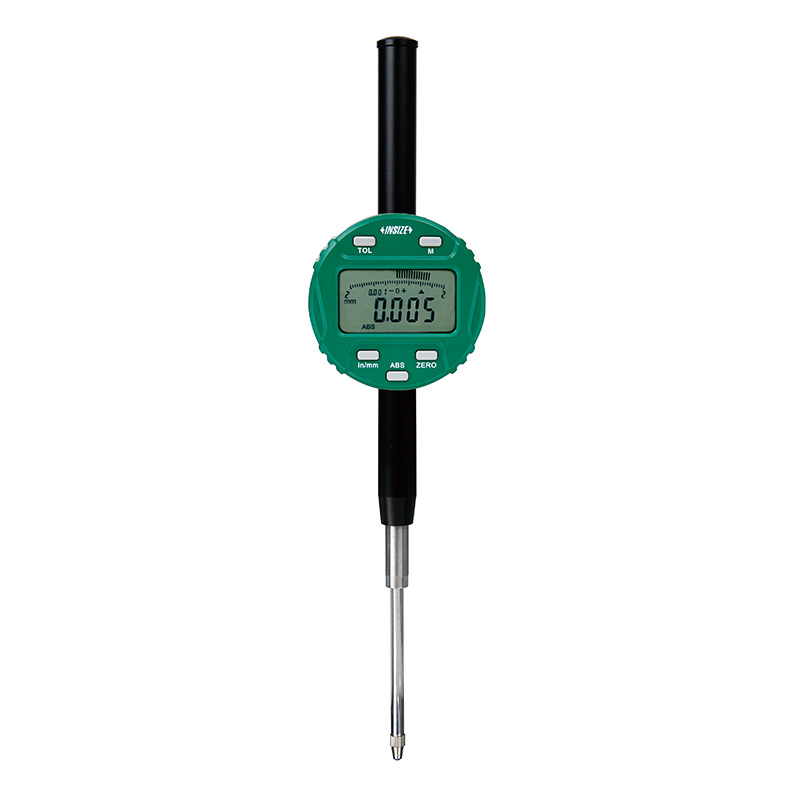

Digital Indicators (Advanced Type)
Code: 2103/2104
Reading in digital and analog
Display can be rotated by 320º
Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion,absolute/incremental measurement
Keep preset data and tolerance data in memory after restart
CR2032 battery, automatic power off (time is adjustable), data output
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2103-10F | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
| 2103-25F | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2103-50F | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2103-10 | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
| 2103-25 | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2103-50 | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2103-25P | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2103-50P | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2104-10F | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2104-25F | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2104-50F | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
| 2104-10 | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2104-25 | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2104-50 | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
| 2104-25P | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2104-50P | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
