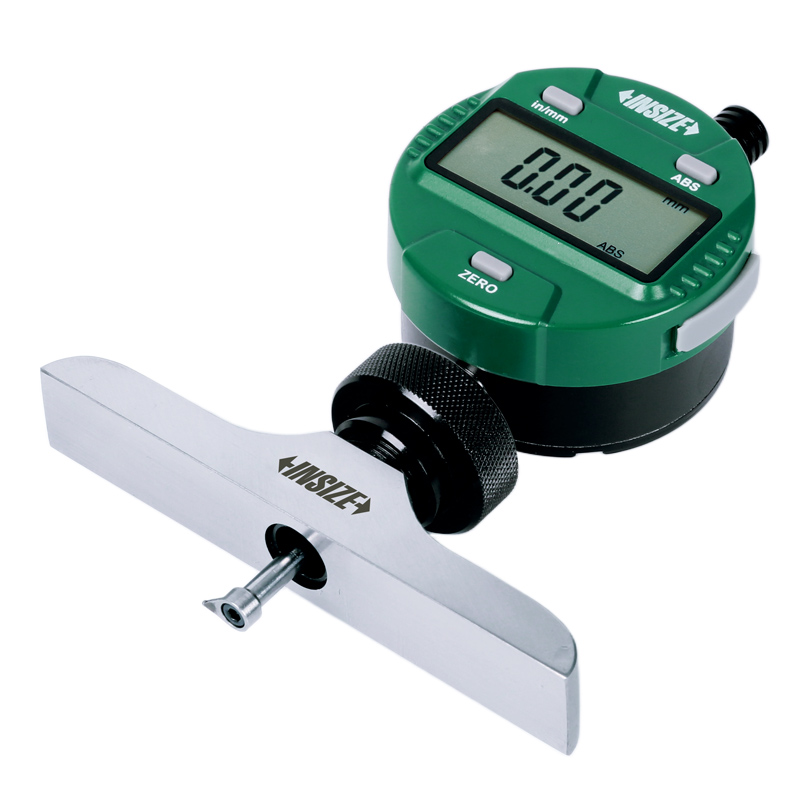

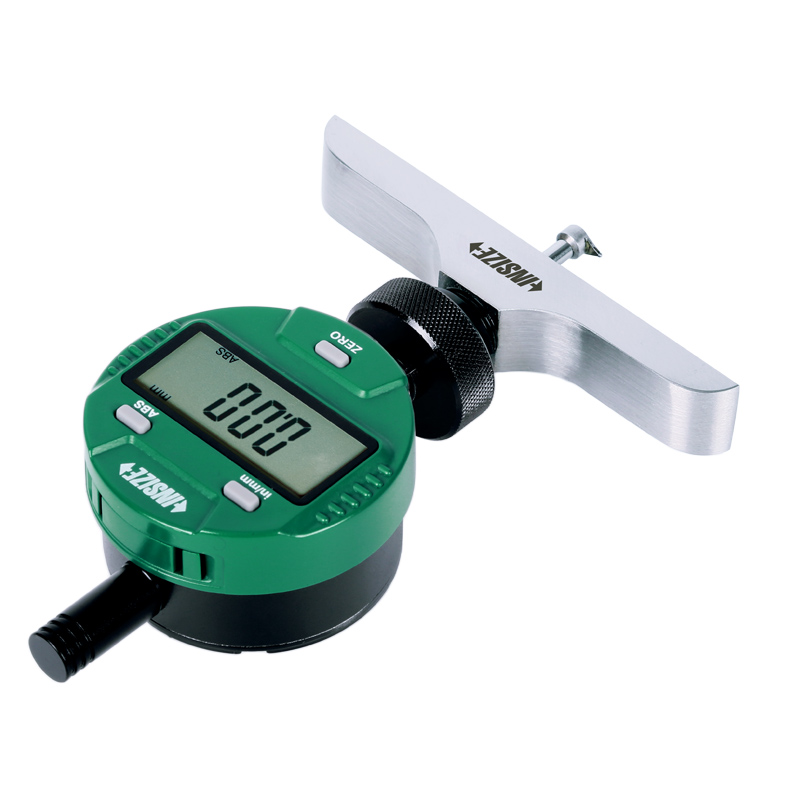

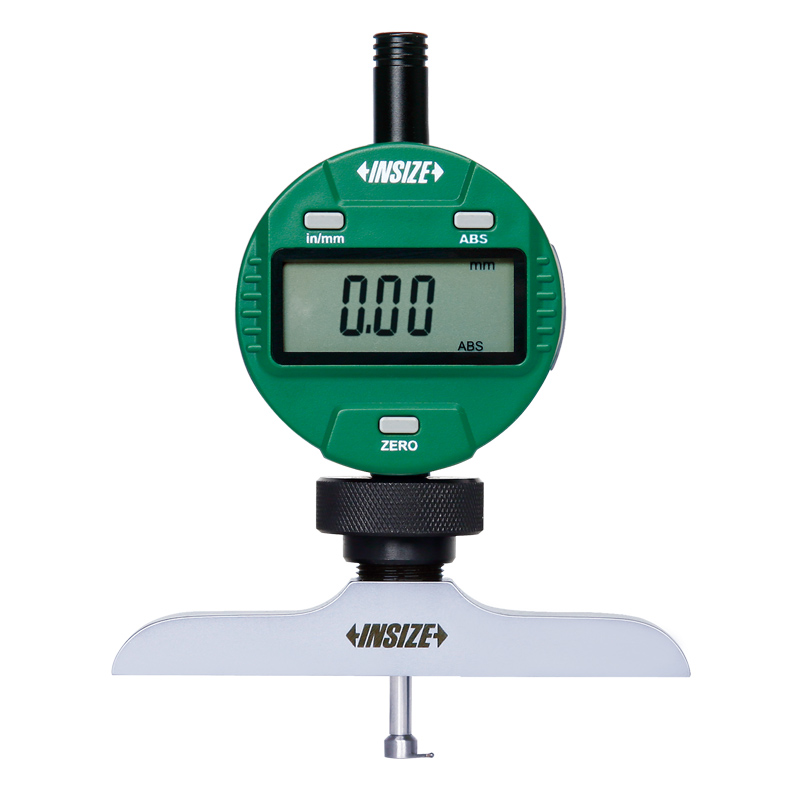

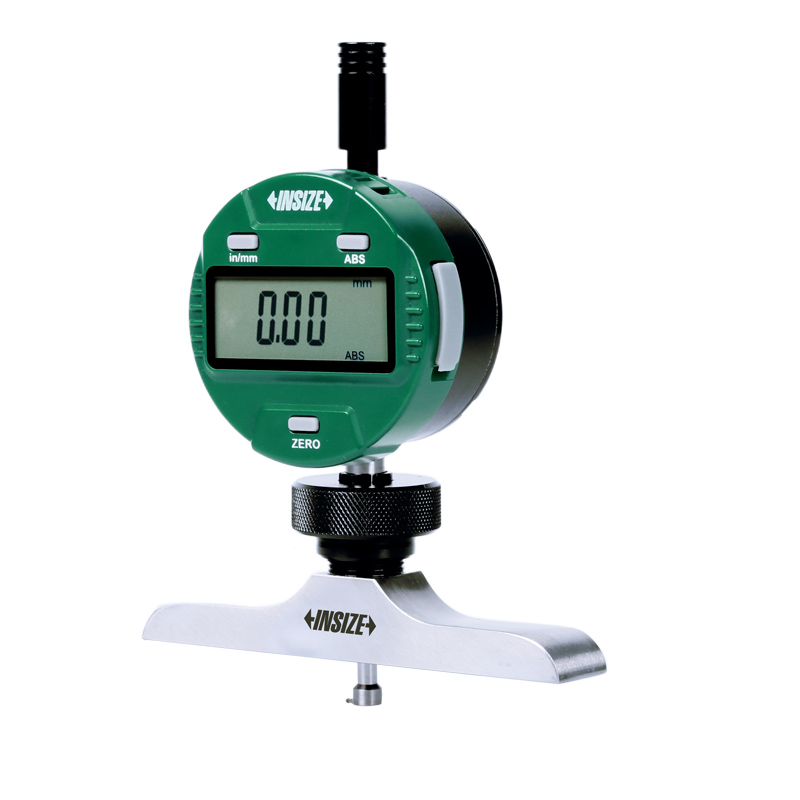

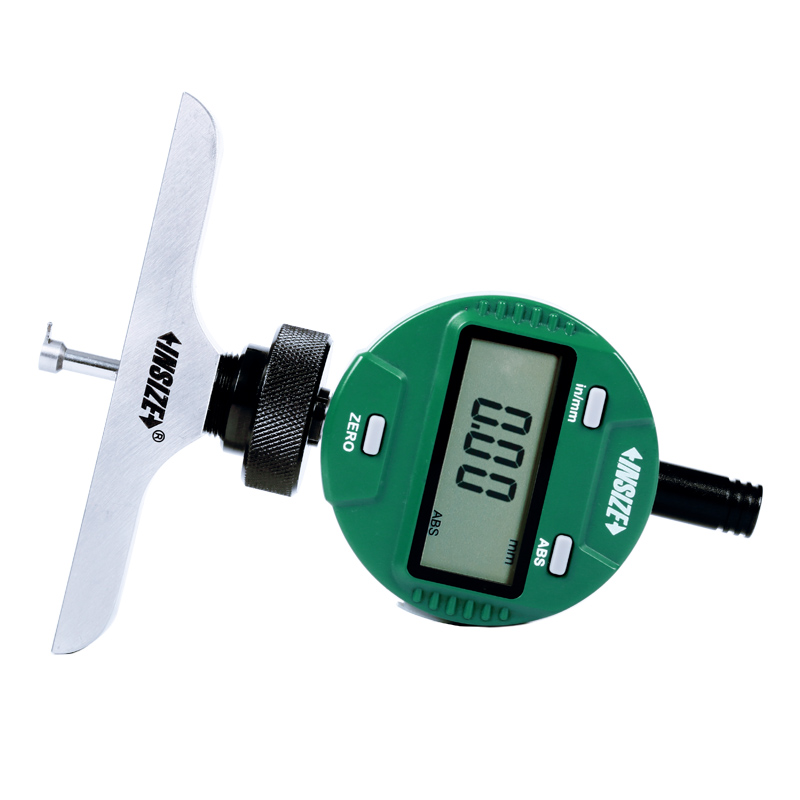

Digital Groove Gauges
Code: 2145
Button function: on/off, zero, mm/inch, absolute/incremental measurement, data preset, change measuring direction
CR2032 battery, automatic power off (time is adjustable)
Data output
Stainless steel base
Supplied with extension rods: 12.5mm (1pc), 25mm (1pc), 50mm (1pc)
Supplied with groove point

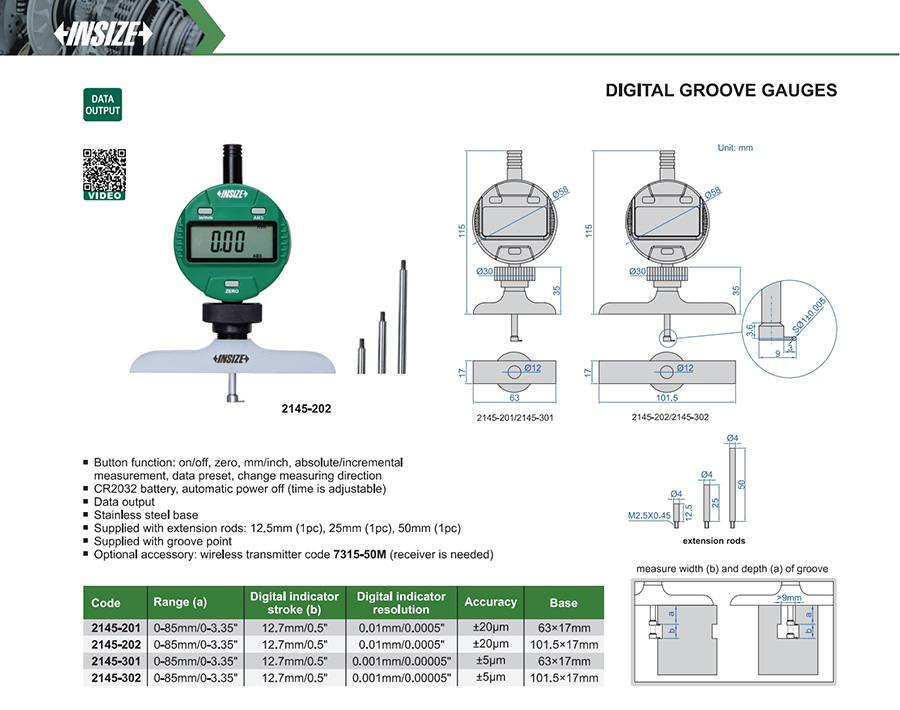

| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 2145-201 | 0-85mm/0-3.35" | ±20µm | 0.01mm/0.0005" | with data interface |
| 2145-202 | 0-85mm/0-3.35" | ±20µm | 0.01mm/0.0005" | with data interface |
| 2145-301 | 0-85mm/0-3.35" | ±5µm | 0.001mm/0.00005" | with data interface |
| 2145-302 | 0-85mm/0-3.35" | ±5µm | 0.001mm/0.00005" | with data interface |
