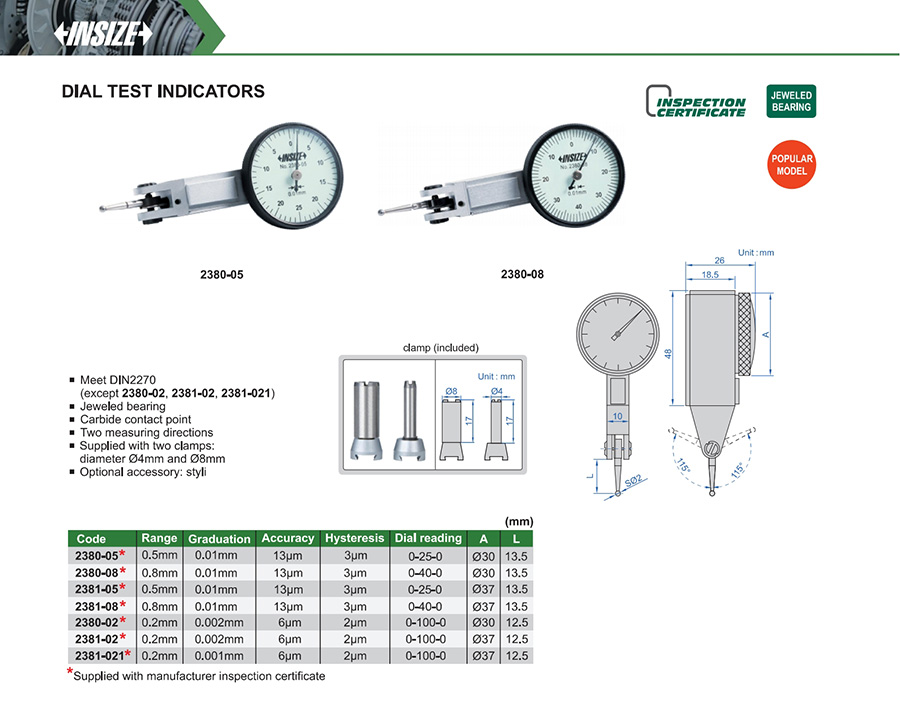

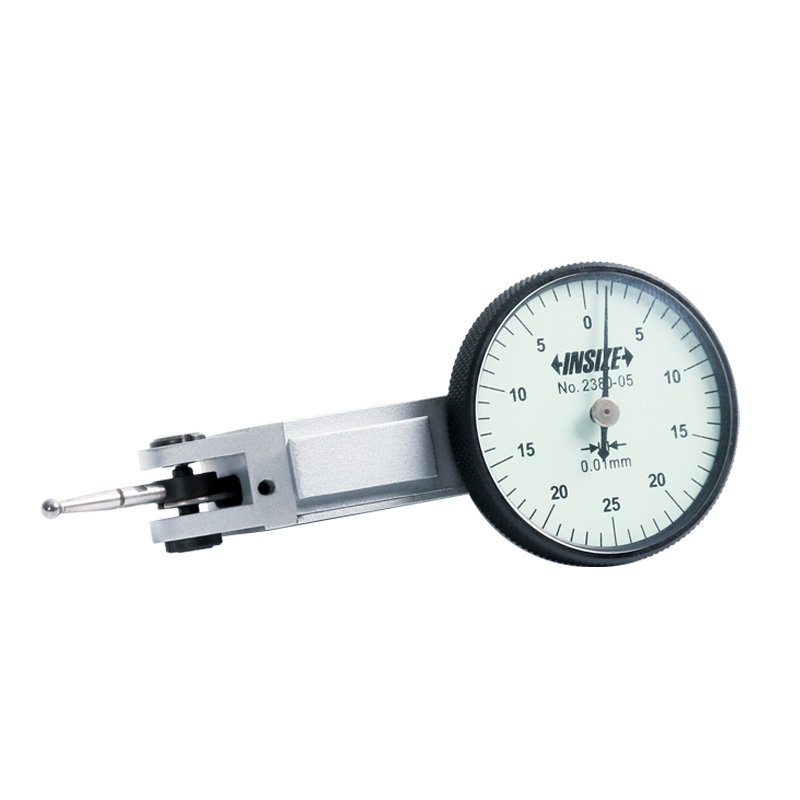

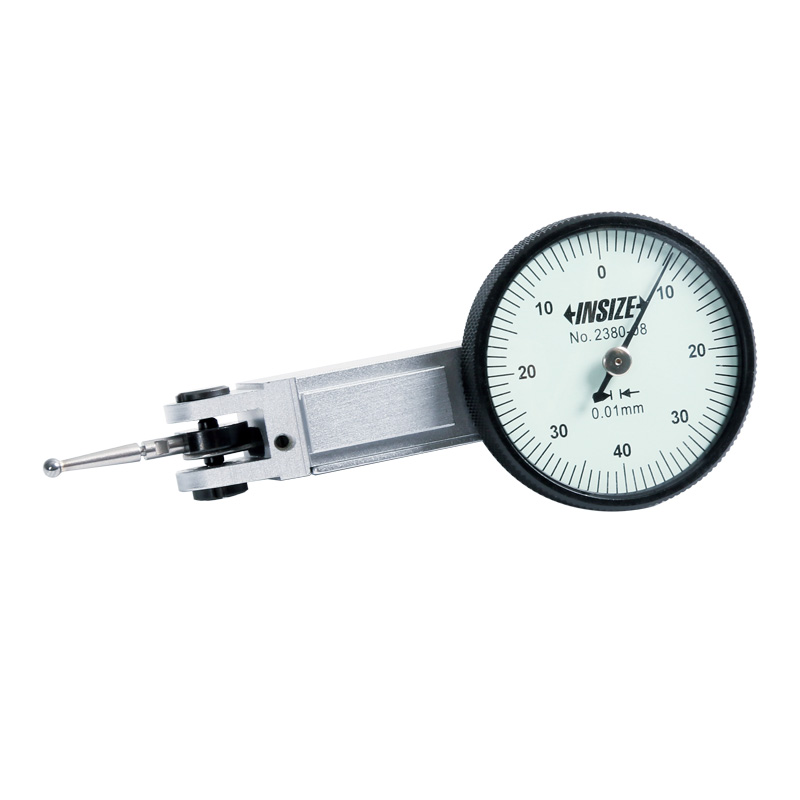

Dial Test Indicators
Code: 2380/2381
Meet DIN2270 (except 2380-02, 2381-02, 2381-021)
Jeweled bearing
Carbide contact point
Two measuring directions
Supplied with two clamps: diameter Ø4mm and Ø8mm
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2380-05 | 0.5mm | 13µm | 0.01mm |
| 2381-05 | 0.5mm | 13µm | 0.01mm |
| 2380-08 | 0.8mm | 13µm | 0.01mm |
| 2381-08 | 0.8mm | 13µm | 0.01mm |
| 2380-02 | 0.2mm | 6µm | 0.002mm |
| 2381-02 | 0.2mm | 6µm | 0.002mm |
| 2381-021 | 0.2mm | 6µm | 0.001mm |
