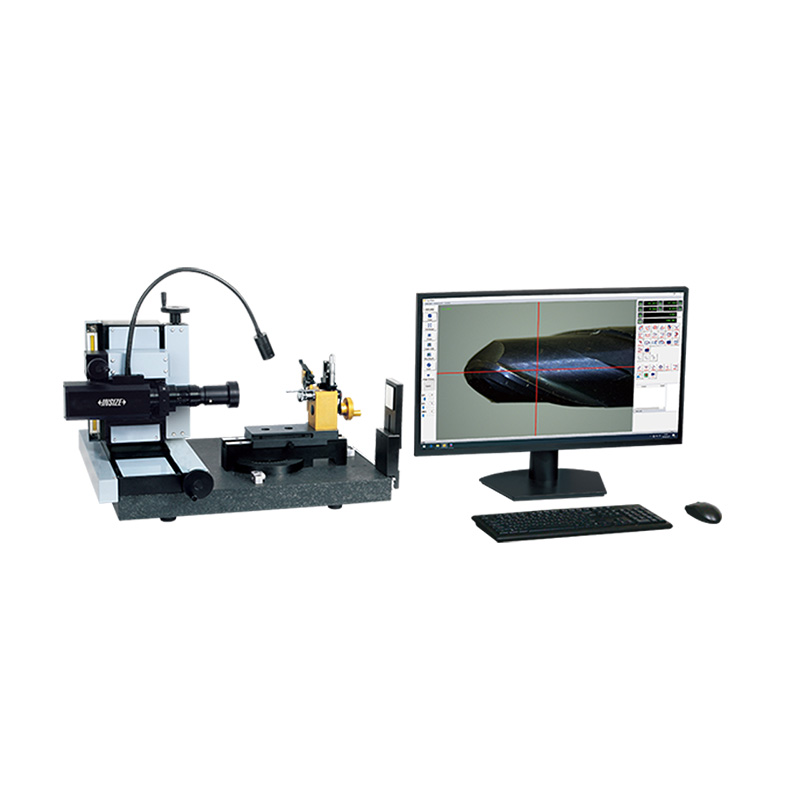

Cutting Tools Vision Measuring System
Code: TLP-D150
Measurement and inspection of milling cutters, drill bits, non-standard molding tools under surface light
Profile measurement, automatic profile capture for straight and helical fluted tools
Import and export CAD file
High magnification for clear observation of tool chipping and grinding wheel pattern on the back face
Granite platform, more stable
The crosshairs of the cutting edge can be automatically recognized and captured
| Code | Range | Accuracy | Resolution | Repeatability | Magnification |
|---|---|---|---|---|---|
| TLP-D150 | 150×60mm | 5μm | 1μm | 2μm | 20X~240X (on 27'' monitor) |
