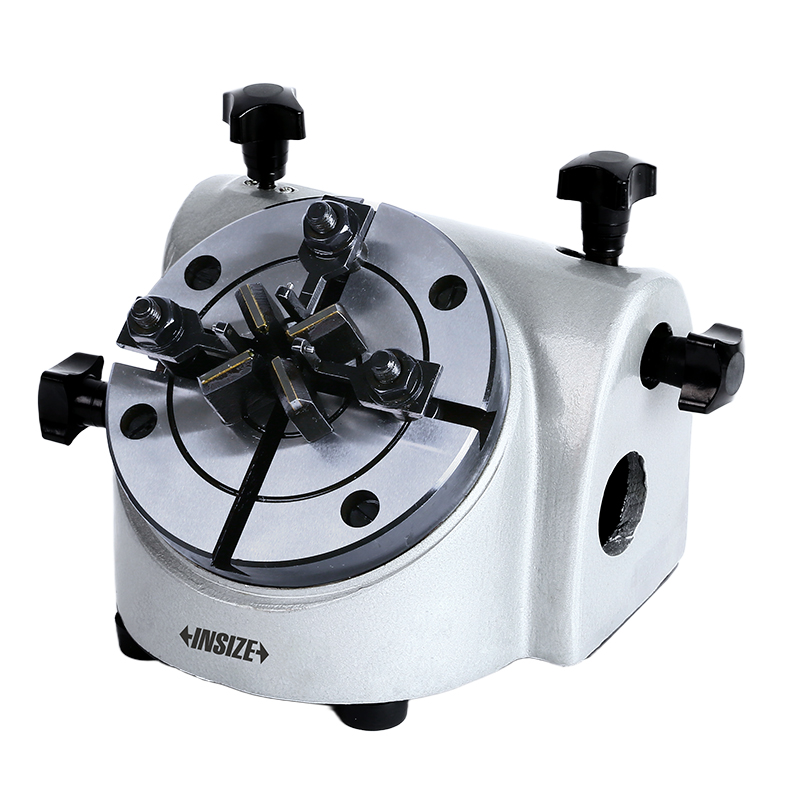

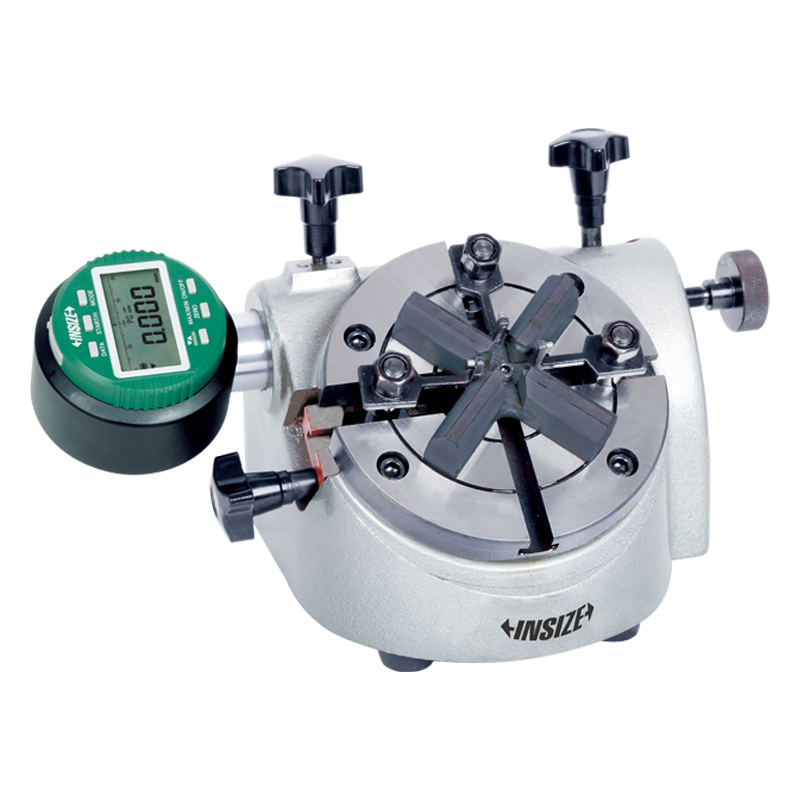

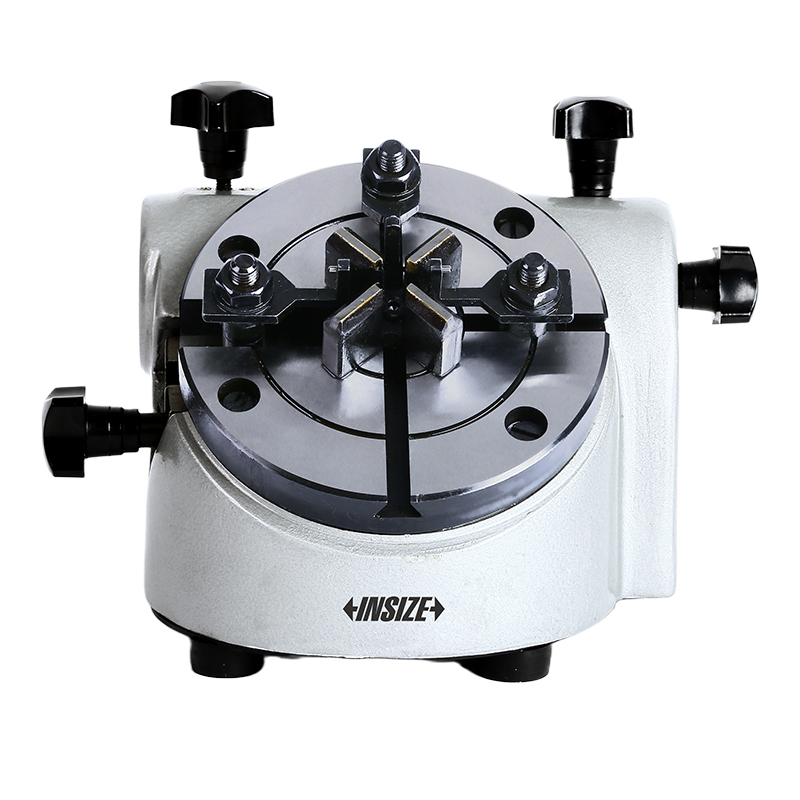

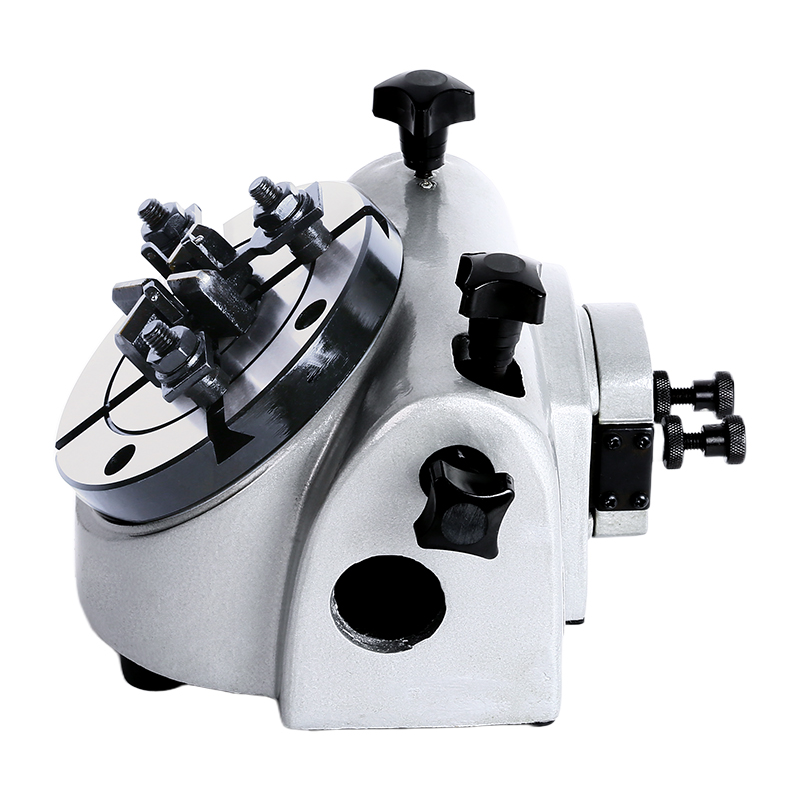

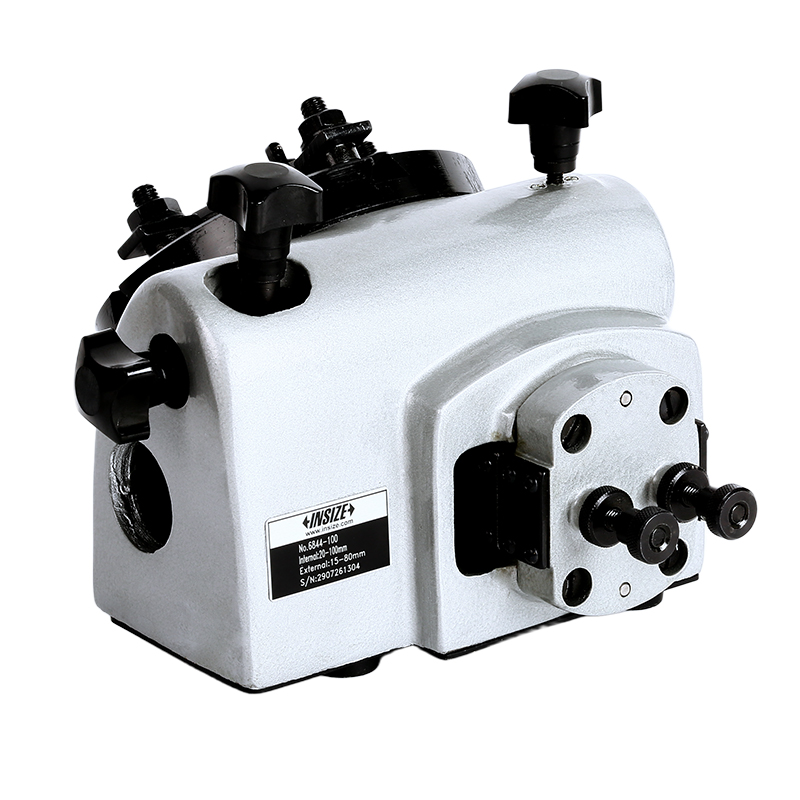

Internal And External Diameter Comparison Instrument
Code: 6844-100
Measure internal/external diameter, variation and taper
Total range of movable point: 2mm, effective range of movable point: ±0.1mm
Groove probes and disc probes are included
Optional accessory: Ø28mm/Ø8mm bush (code 6843-B8), cross table, 0.001mm digital/dial indicators, high precision digital indicators (code 2140-6, 2140-6WL)
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 6844-100 | ±0.001mm | 0.001mm | 15-80mm/0.6-3.1" | 20-100mm/0.8-3.9" |
