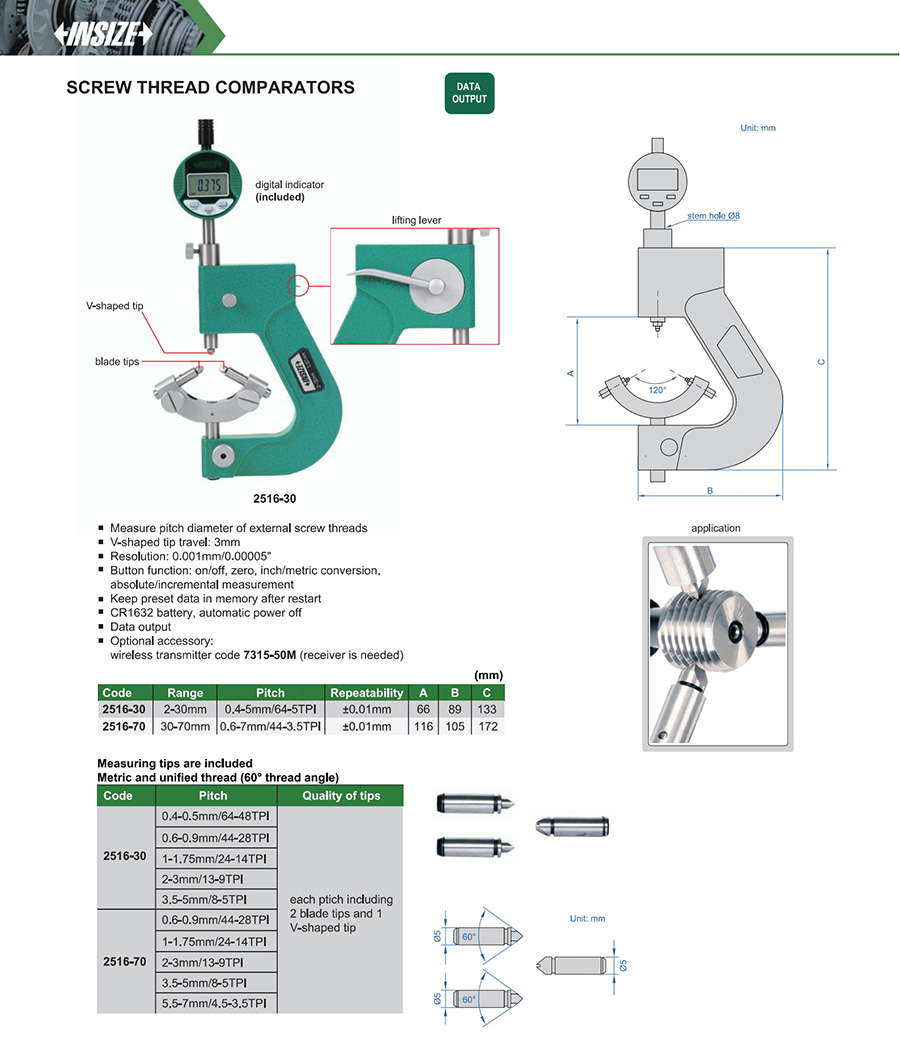

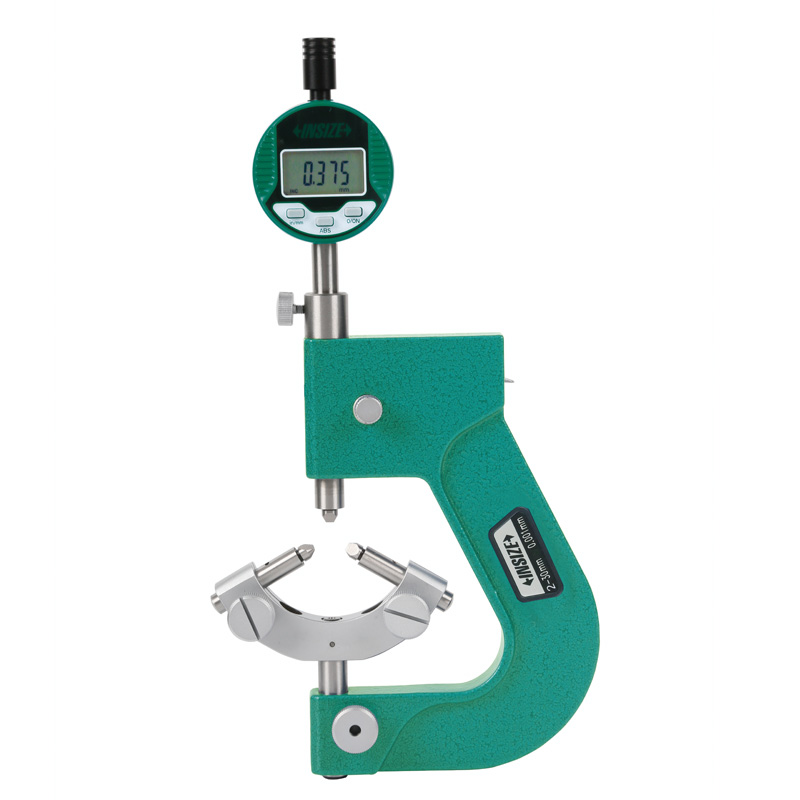

Screw Thread Comparators
Code: 2516
Measure pitch diameter of external screw threads
V-shaped tip travel: 3mm
Button function: on/off, zero, inch/metric conversion, absolute/incremental measurement
Keep preset data in memory after restart
CR1632 battery, automatic power off
| Code | Range | Resolution | Repeatability | Applicable pitch |
|---|---|---|---|---|
| 2516-30 | 2-30mm | 0.001mm/0.00005" | ±0.01mm | 0.4-5mm/64-5TPI |
| 2516-70 | 30-70mm | 0.001mm/0.00005" | ±0.01mm | 0.6-7mm/44-3.5TPI |
