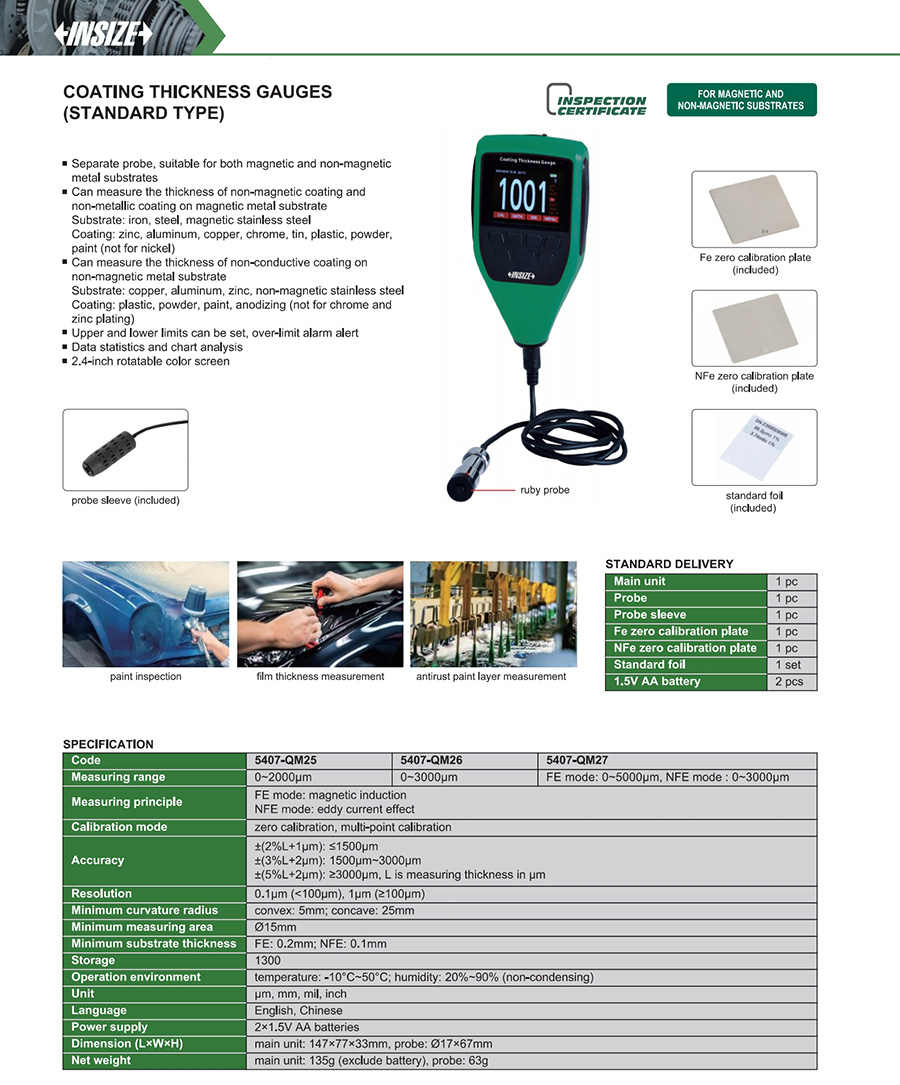

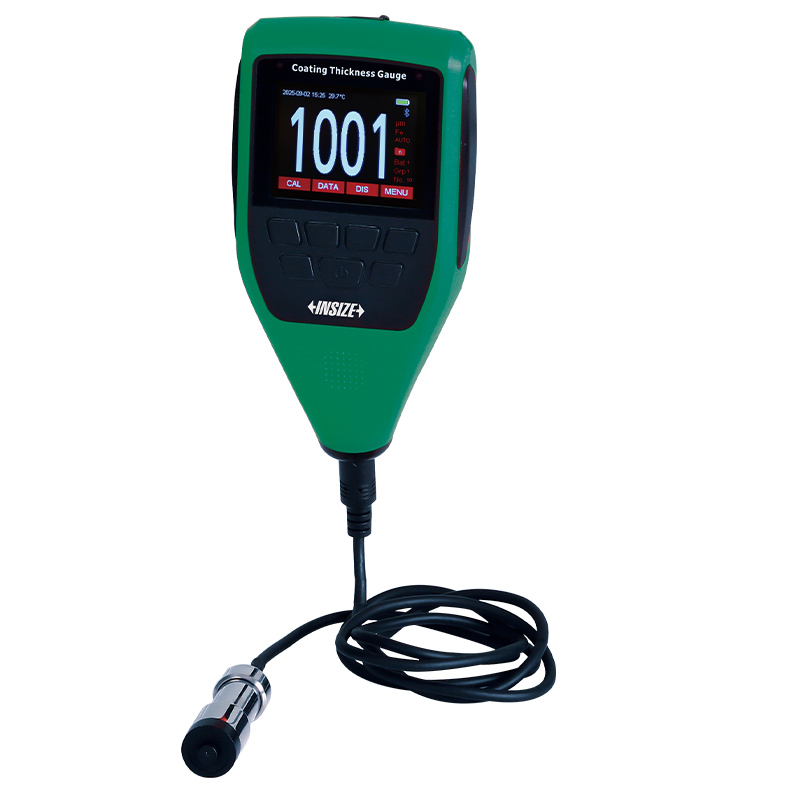

Coating Thickness Gauges(Standard Type)
Code: 5407-QM25/QM26/QM27
Separate probe, suitable for both magnetic and non-magnetic metal substrates
Upper and lower limits can be set, over-limit alarm alert
Data statistics and chart analysis
2.4-inch rotatable color screen
| Code | Range | Accuracy | Resolution | Data transmission |
|---|---|---|---|---|
| 5407-QM25 | 0~2000μm | ±(2%L+1µm): ≤1500µm, ±(3%L+2µm): 1500µm~3000μm, ±(5%L+2µm): ≥3000μm | 0.1μm (<100μm), 1μm (≥100μm) | no |
| 5407-QM26 | 0~3000μm | ±(2%L+1µm): ≤1500µm, ±(3%L+2µm): 1500µm~3000μm, ±(5%L+2µm): ≥3000μm | 0.1μm (<100μm), 1μm (≥100μm) | no |
| 5407-QM27 | FE mode: 0~5000μm, NFE mode : 0~3000μm | ±(2%L+1µm): ≤1500µm, ±(3%L+2µm): 1500µm~3000μm, ±(5%L+2µm): ≥3000μm | 0.1μm (<100μm), 1μm (≥100μm) | no |
