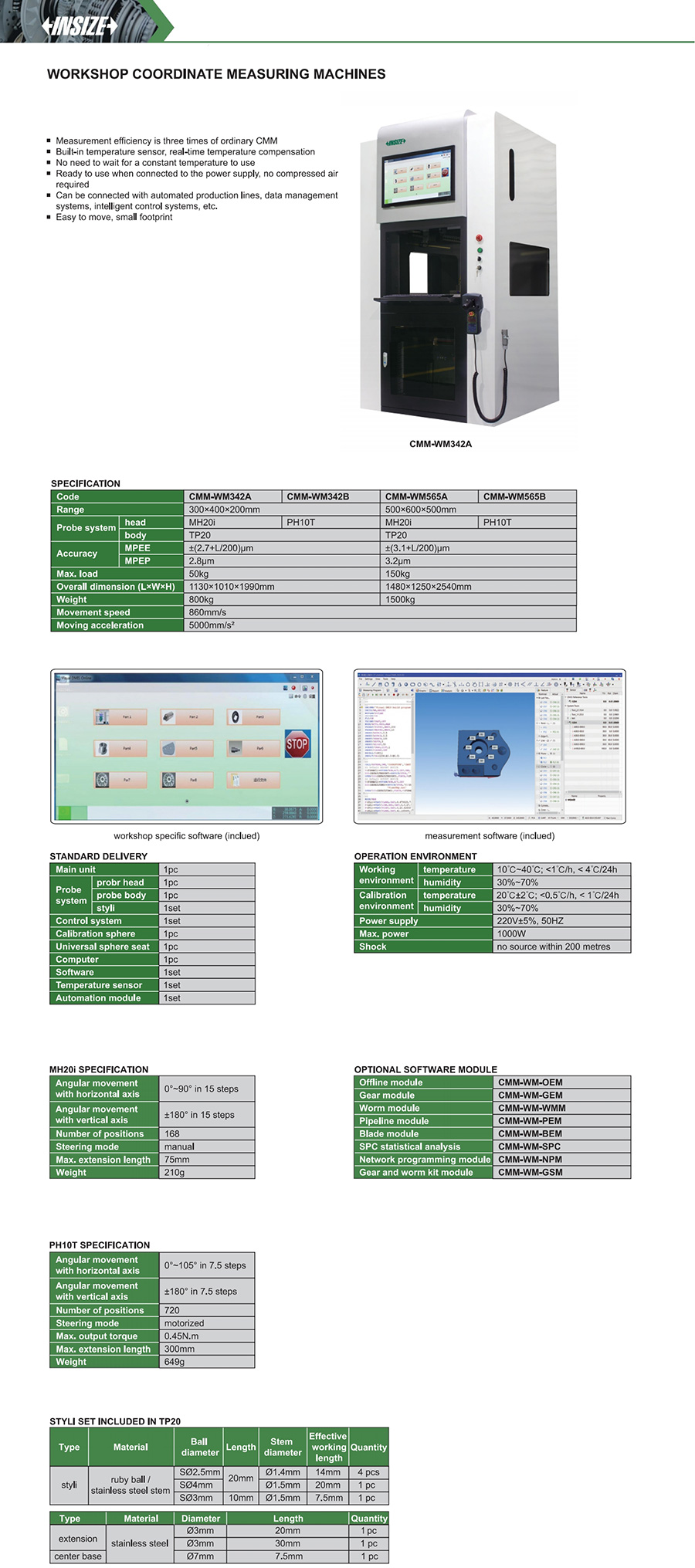

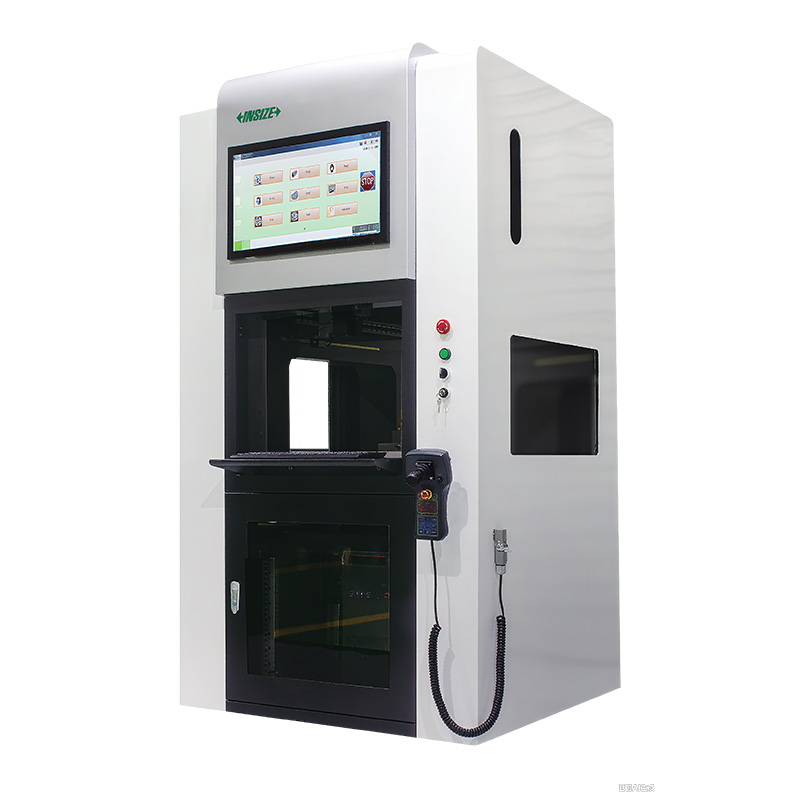

Workshop Coordinate Measuring Machines
Code: CMM-WM Series
Measurement efficiency is three times of ordinary CMM
Built-in temperature sensor, real-time temperature compensation
No need to wait for a constant temperature to use
Ready to use when connected to the power supply, no compressed air required
Can be connected with automated production lines, data management systems, intelligent control systems, etc.
Easy to move, small footprint
| Code | Type | Range | Accuracy | Probe system |
|---|---|---|---|---|
| CMM-WM342A | WM SERIES | 300×400×200mm | ±(2.7+L/200)μm | MH20i/TP20 |
| CMM-WM342B | WM SERIES | 300×400×200mm | ±(2.7+L/200)μm | PH10T/TP20 |
| CMM-WM565A | WM SERIES | 500×600×500mm | ±(3.1+L/200)μm | MH20i/TP20 |
| CMM-WM565B | WM SERIES | 500×600×500mm | ±(3.1+L/200)μm | PH10T/TP20 |
