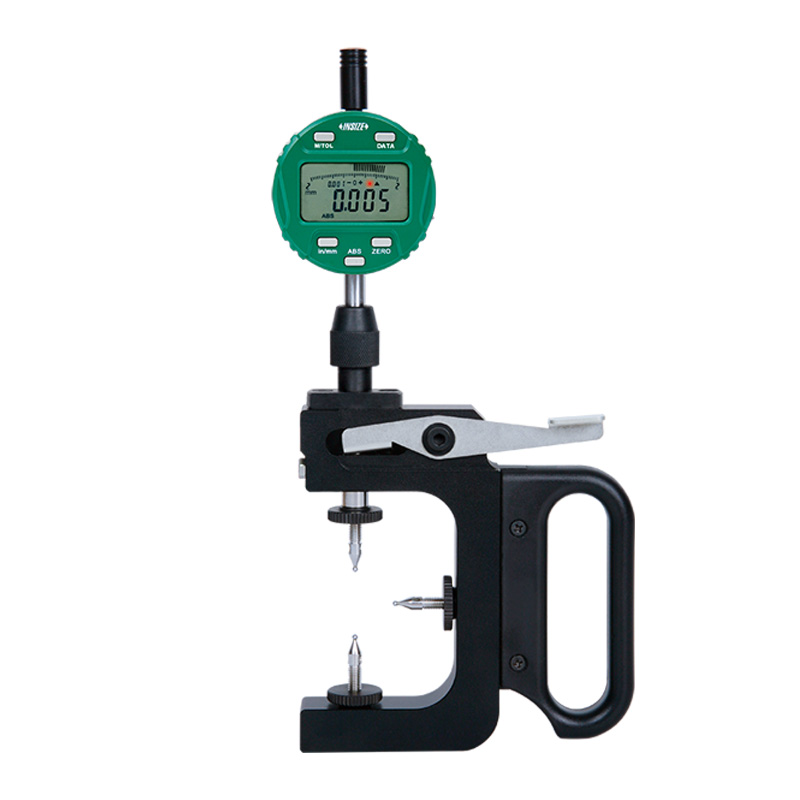

Thread/Lead Screw Pitch Diameter Snap Gauges
Code: 2165

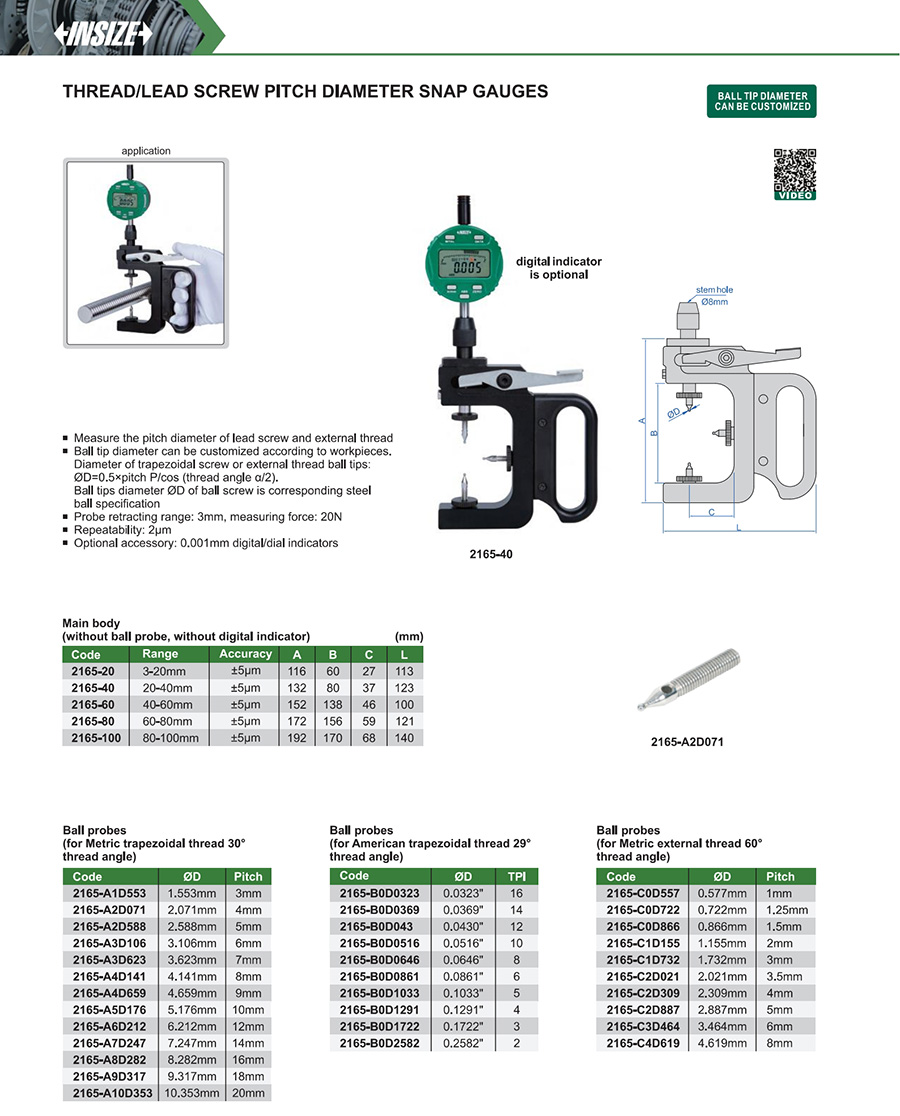

Measure the pitch diameter of lead screw and external thread
Ball tip diameter can be customized according to workpieces. Diameter of trapezoidal screw or external thread ball tips: ØD=0.5×pitch P/cos (thread angle α/2)
Ball tips diameter ØD of ball screw is corresponding steel ball specification
Probe retracting range: 3mm, measuring force: 20N
| Code | Range | Accuracy |
|---|---|---|
| 2165-20 | 3-20mm | ±5µm |
| 2165-40 | 20-40mm | ±5µm |
| 2165-60 | 40-60mm | ±5µm |
| 2165-80 | 60-80mm | ±5µm |
| 2165-100 | 80-100mm | ±5µm |
