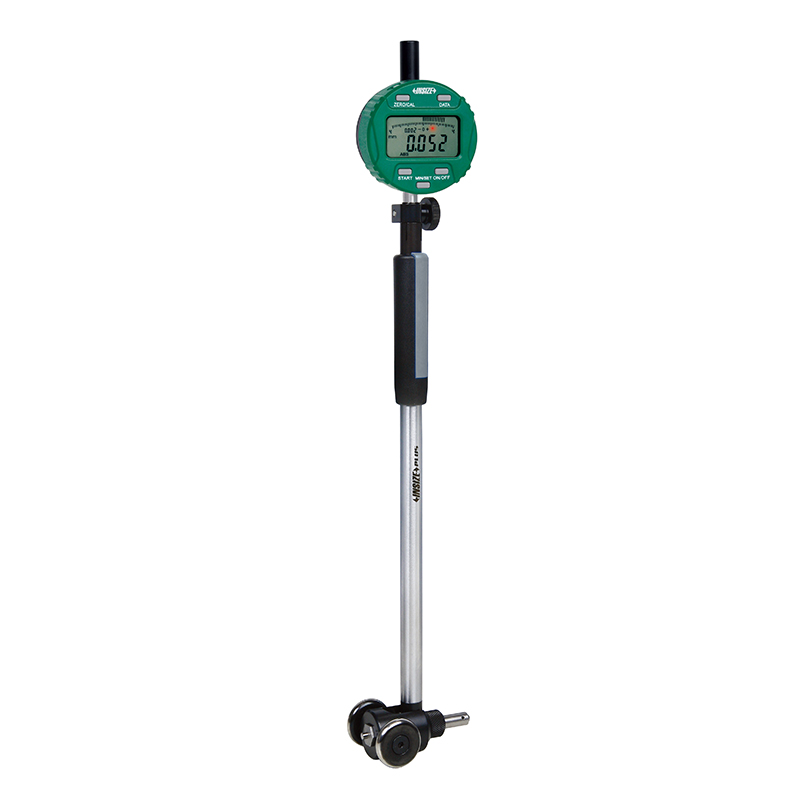

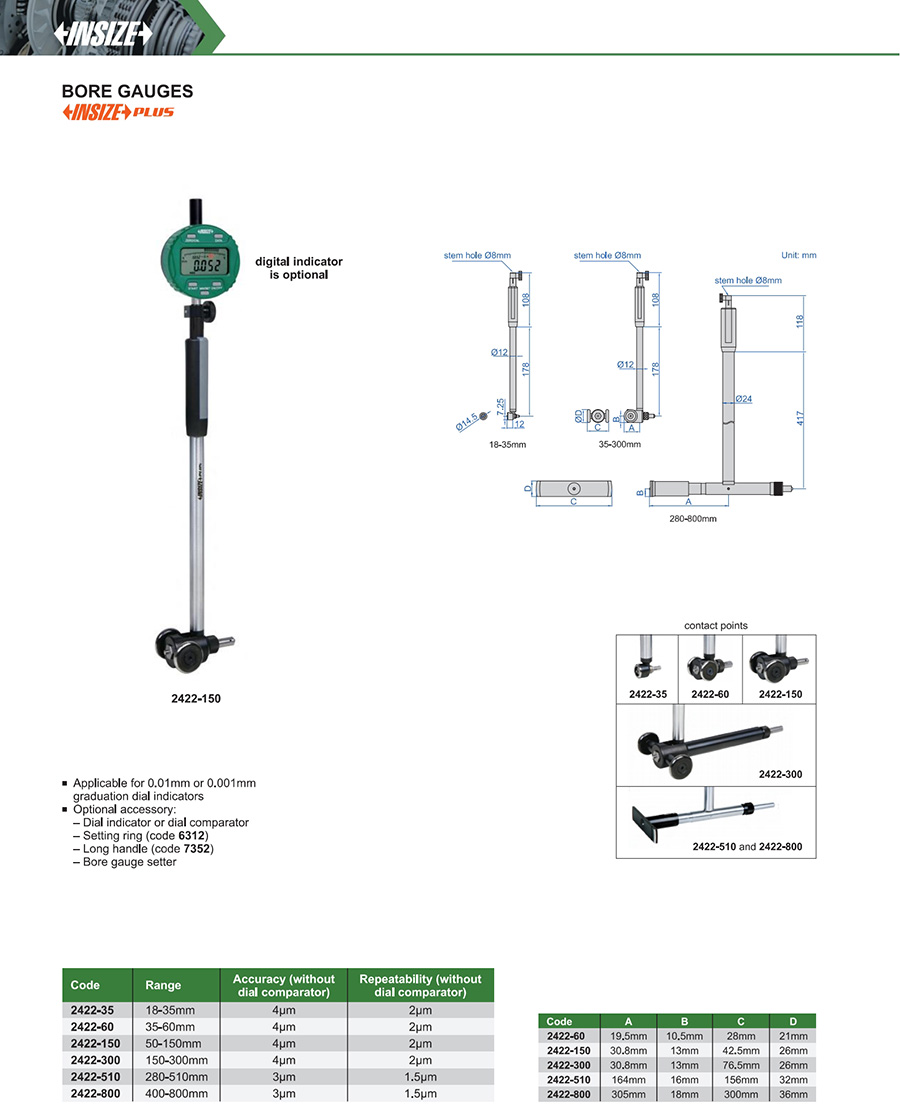

Bore Gauges
Code: 2422
Applicable for 0.01mm or 0.001mm graduation dial indicators
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2422-35 | 18-35mm | 4μm | 2μm |
| 2422-60 | 35-60mm | 4μm | 2μm |
| 2422-150 | 50-150mm | 4μm | 2μm |
| 2422-300 | 150-300mm | 4μm | 2μm |
| 2422-510 | 280-510mm | 3μm | 1.5μm |
| 2422-800 | 400-800mm | 3μm | 1.5μm |
