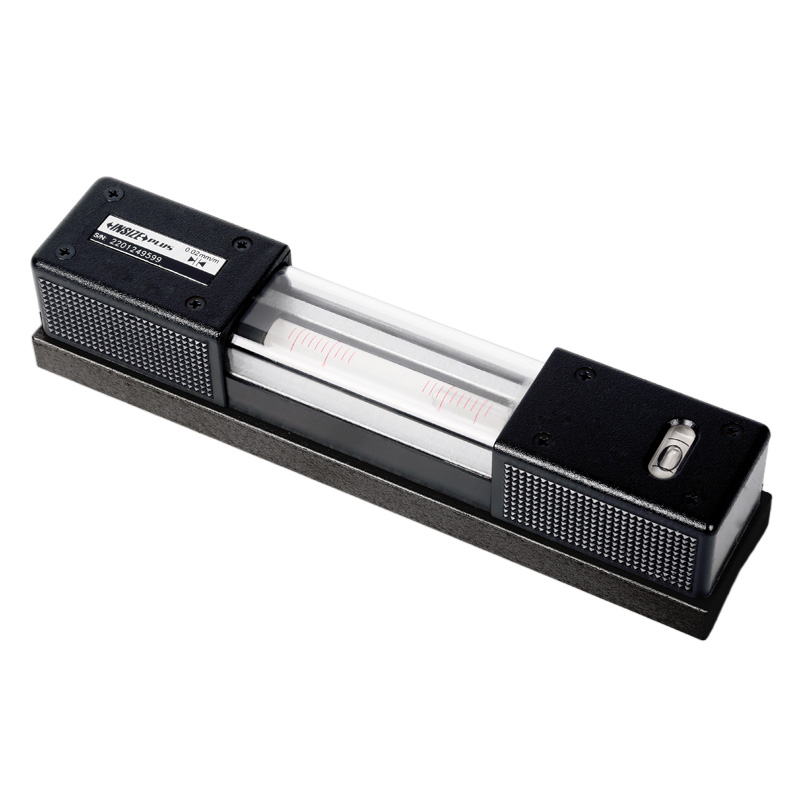

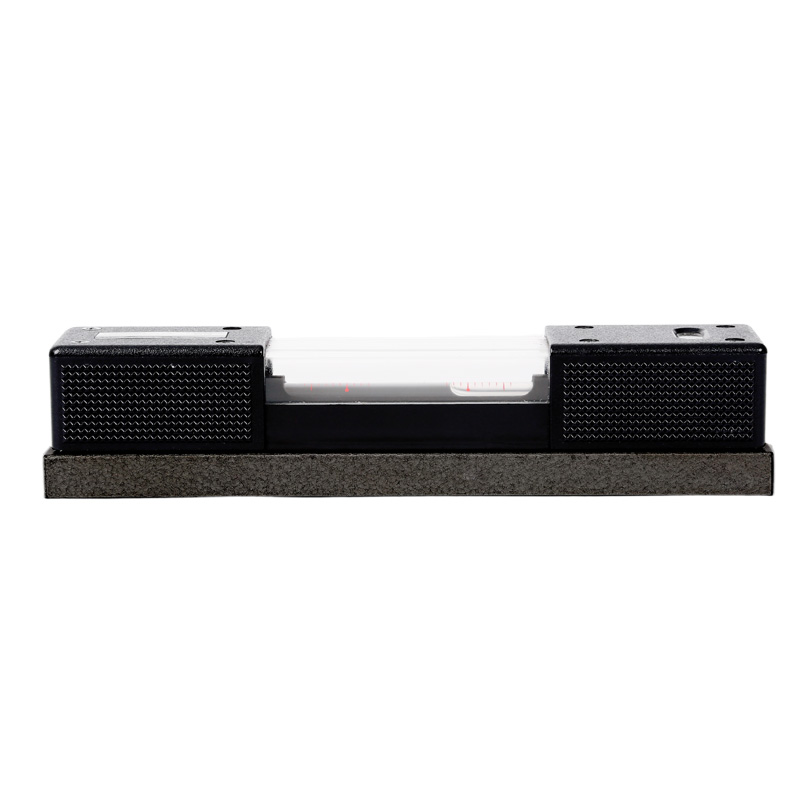

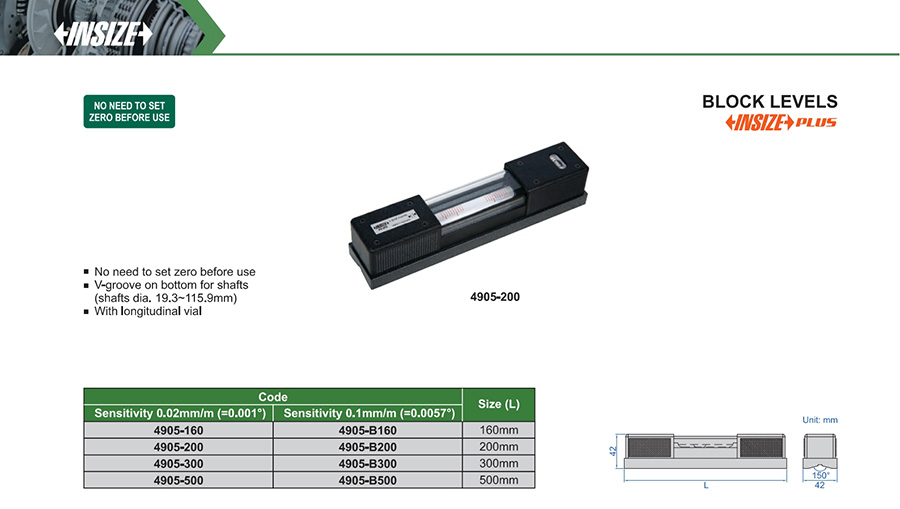

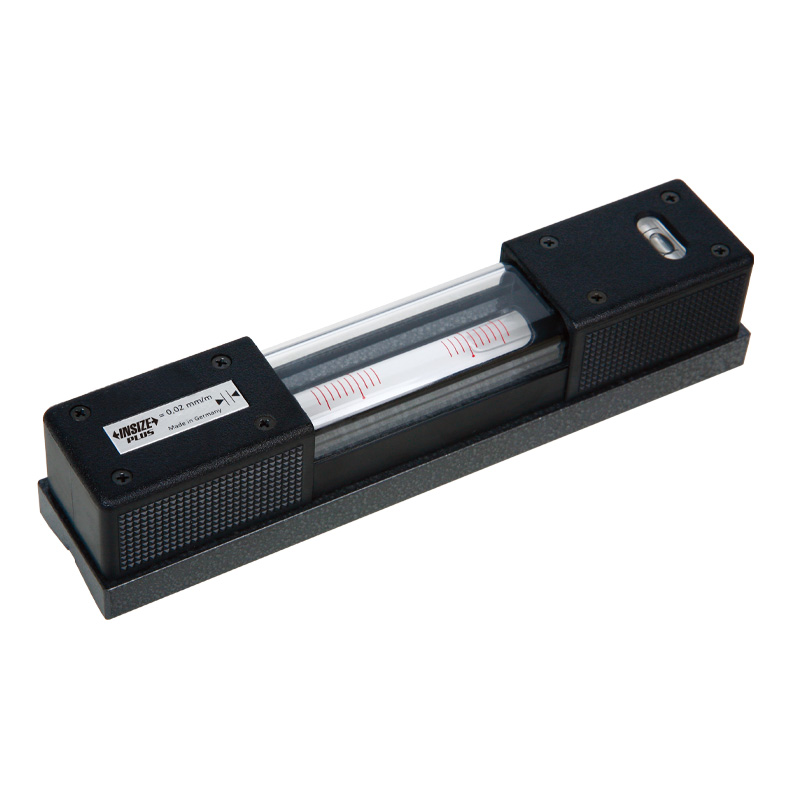

Block Levels
Code: 4905
No need to set zero before use

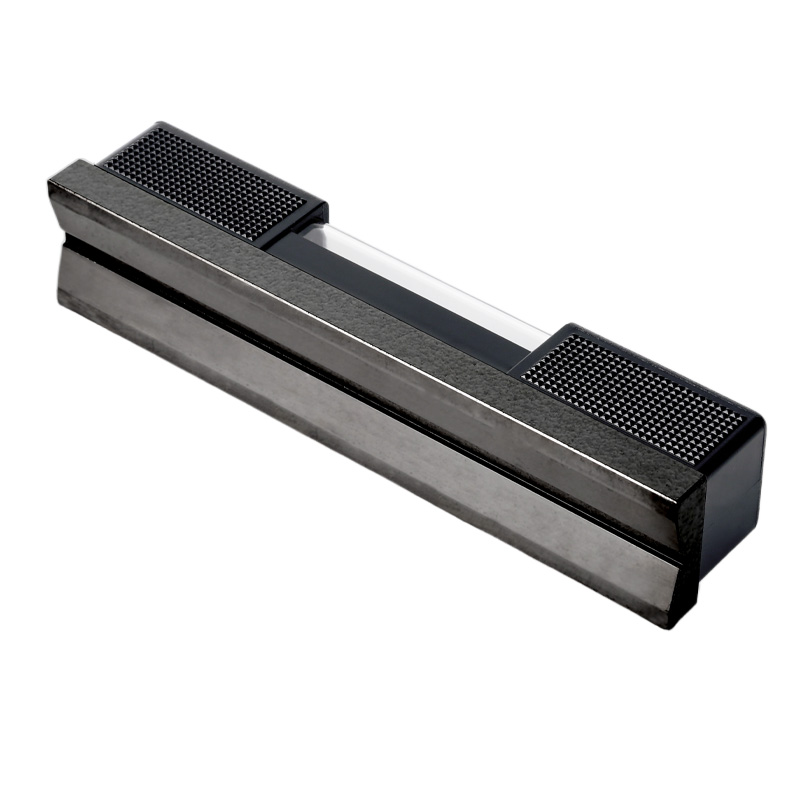

V-groove on bottom for shafts (shafts dia. 19.3~115.9mm)
With longitudinal vial
| Code | Length | Sensitivity |
|---|---|---|
| 4905-160 | 160mm | 0.02mm/m (=0.001°) |
| 4905-200 | 200mm | 0.02mm/m (=0.001°) |
| 4905-300 | 300mm | 0.02mm/m (=0.001°) |
| 4905-500 | 500mm | 0.02mm/m (=0.001°) |
| 4905-B160 | 160mm | 0.1mm/m (=0.0057°) |
| 4905-B200 | 200mm | 0.1mm/m (=0.0057°) |
| 4905-B300 | 300mm | 0.1mm/m (=0.0057°) |
| 4905-B500 | 500mm | 0.1mm/m (=0.0057°) |
