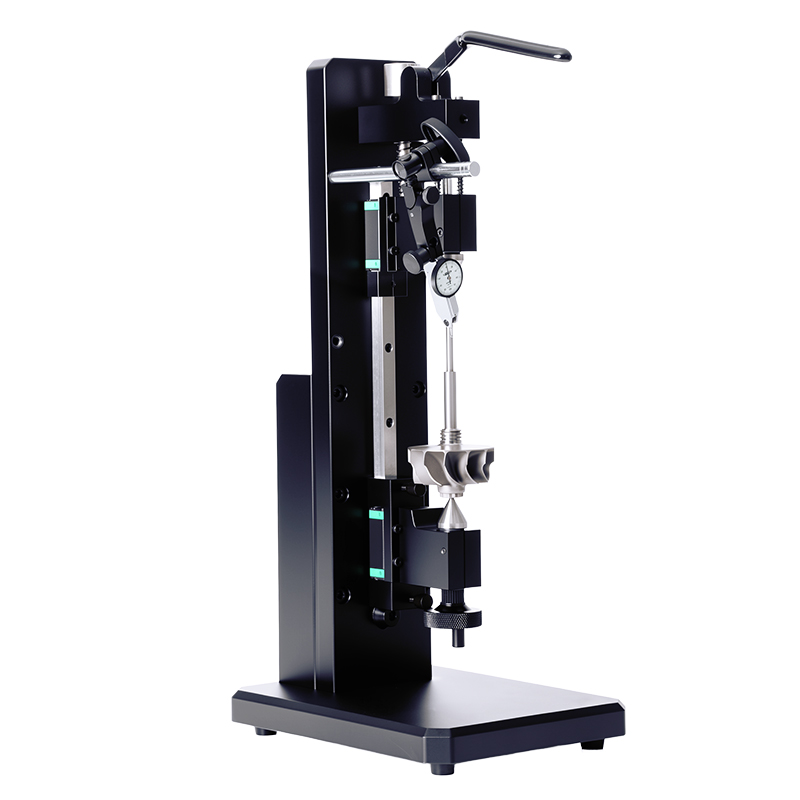

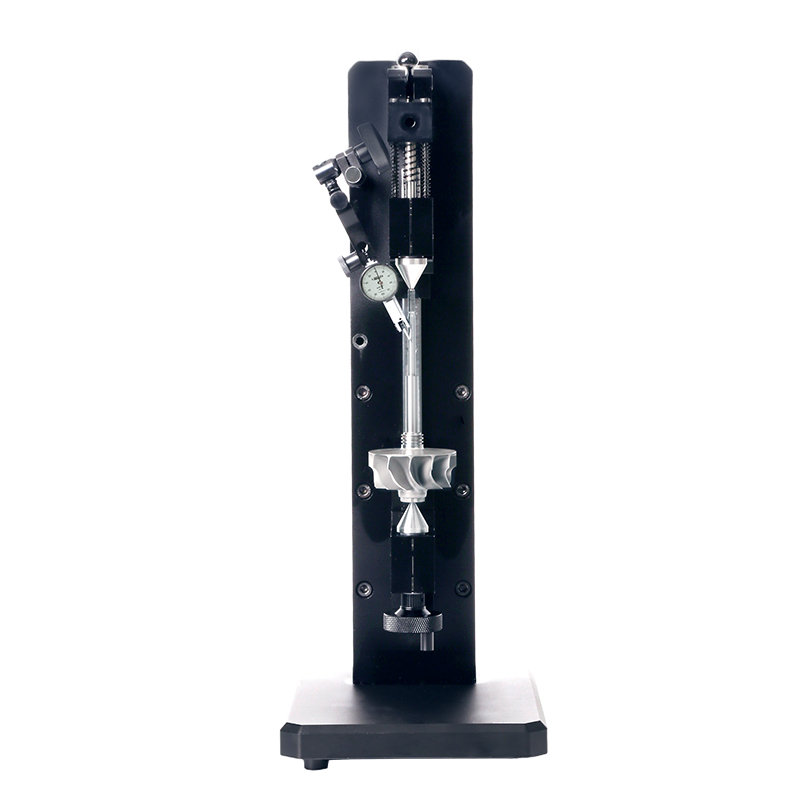

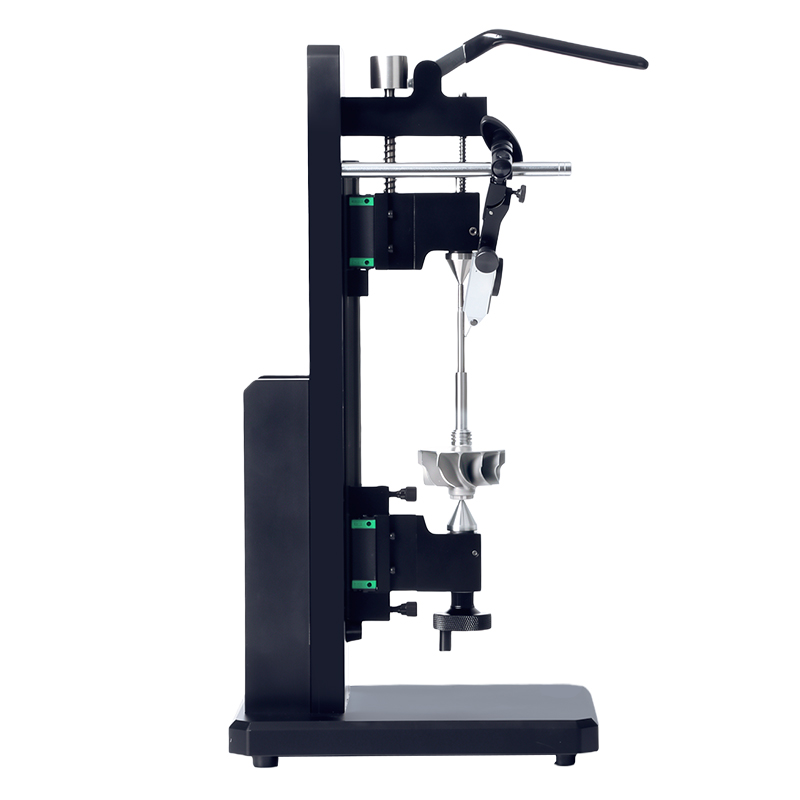

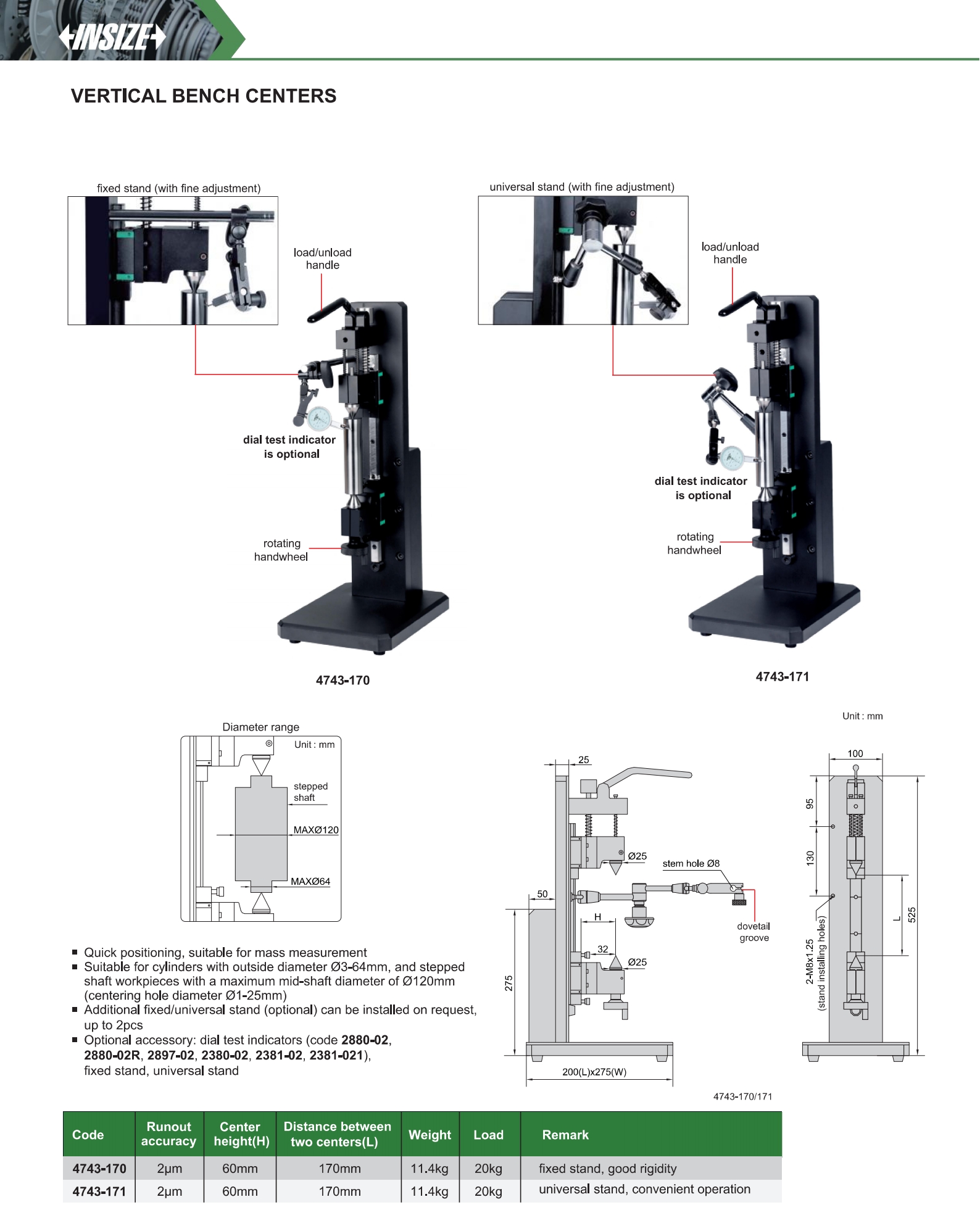

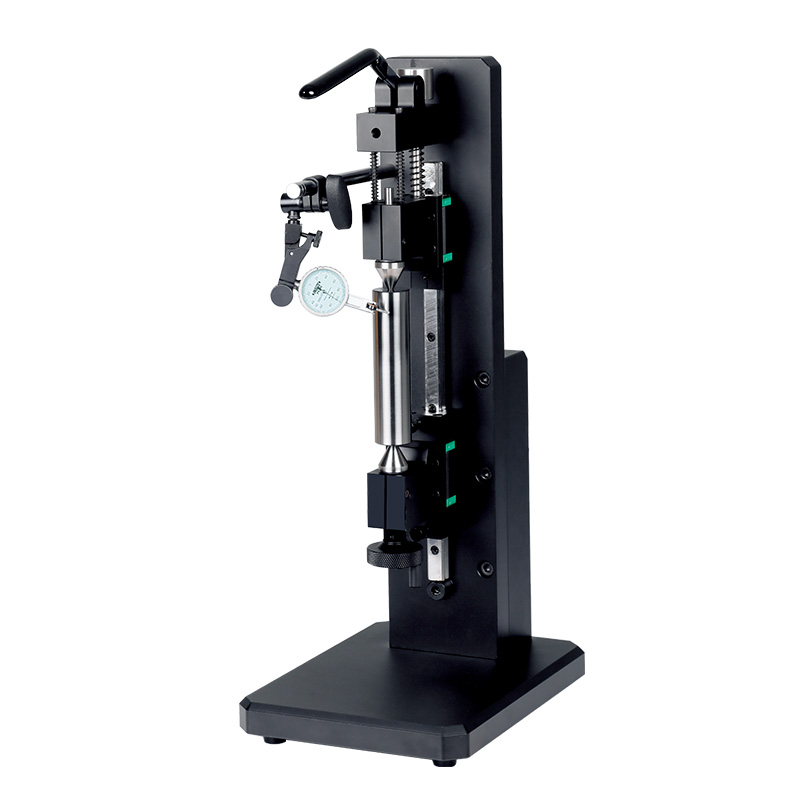

Vertical Bench Centers
Code: 4743
Quick positioning, suitable for mass measurement
Suitable for cylinders with outside diameter Ø3-64mm, and stepped shaft workpieces with a maximum mid-shaft diameter of Ø120mm (centering hole diameter Ø1-25mm)
Additional fixed/universal stand (optional) can be installed on request, up to 2pcs
| Code | Runout accuracy | Remark |
|---|---|---|
| 4743-170 | 2µm | fixed stand, good rigidity |
| 4743-171 | 2µm | universal stand, convenient operation |
